CQ-XP500
Chaoqiang

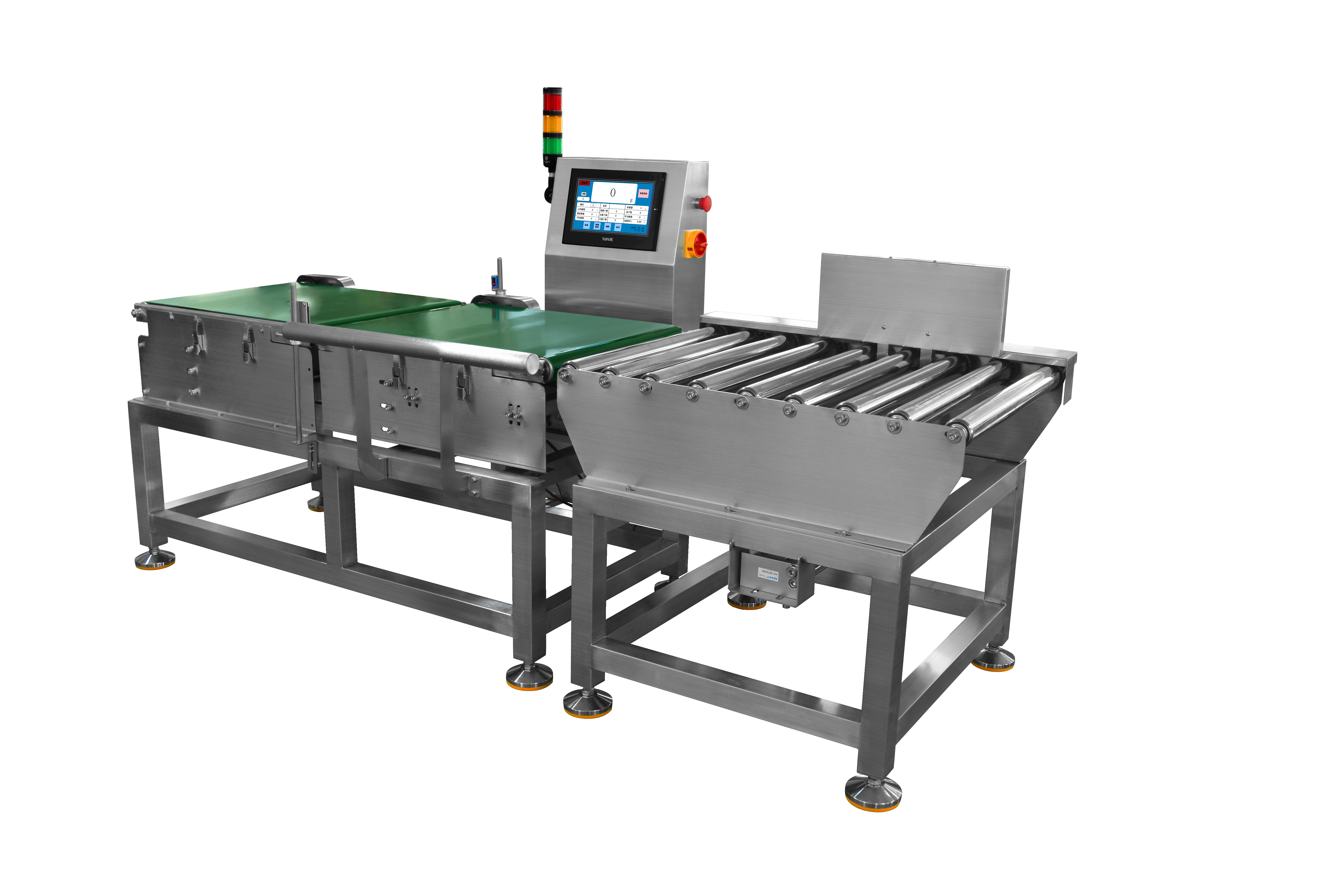

Dynamic weight inspection for heavy packs — the CQ-XP500 weighs bags, boxes and containers up to 40 kg at full line speed on a 500 mm-wide belt. Its pneumatic pusher automatically rejects every underfilled or overfilled product, while the 900 mm weighing section keeps large footprints perfectly stable.
Products accelerate onto an isolated weighing platform and are measured in full motion — every stage physically separated so vibration and belt pull never distort the reading, even under 40 kg loads.
Weighing belt 900 × 500 mm · machine size 1888 × 935 × 1060 mm · rejection options: pusher / flap / air blow / swing arm
Core parameters engineered for heavy, bulky products where weighing stability matters most.
Every component selected for one purpose: stable, repeatable readings at production speed, with changeovers measured in minutes.
Speed-up, weighing and rejection stages are mechanically separated — belt pull and vibration from adjacent sections never reach the scale platform.
Stable ReadingIcon-driven interface with self-learning setup — store 100 product parameters, switch products in minutes without re-engineering.
Self-LearningHigh-precision digital load cell with fast sampling and automatic zero tracking — long-running stability without frequent manual calibration.
1 g ResolutionUp to 40 kg per pack on a 900 × 500 mm belt — bags, boxes and bulky products switch freely on one machine without re-configuration.
Up to 40 kgFood-contact PVC conveyor keeps every pack stable during weighing — hygienic, easy to clean and suitable for all product types.
Food-SafeBuilt-in statistics with EXCEL-format reports, USB storage for 1+ years of data — full traceability for audits and process control.
Data TraceabilityA complete range of proven rejection mechanisms engineered for different product types — the CQ-XP500 can be built with any of them. The pusher configuration shown here is manufactured to order for your product and line requirements.
Every sub-system of the CQ-XP500 is built to protect weighing accuracy and reject reliability in harsh production environments.
Filter-regulator-lubricator unit supplies clean, stable compressed air for precise, repeatable reject action.
Weinview colour interface — icon-driven menus with 100 self-learning product recipes.
ZEMIC L6N sensor — 1 g resolution with automatic zero tracking for long-run stability.
Precise product detection for accurate reject timing, unaffected by harsh environments.
Hygienic, wear-resistant belt with quick-release latch — easy to clean and swap.
Full stainless-steel construction — corrosion-resistant and wash-down ready for food lines.
Core components from proven global suppliers — engineered to hold accuracy through continuous production.
High-precision weighing sensor for stable dynamic readings.
Reliable VFD speed control from a global brand.
Minimises vibration interference at high belt speeds.
Fast, stable signal processing for real-time weighing.
Reliable storage for product parameters and recipes.
Food-contact PVC conveyor — stable weighing platform for all product types.
From food processing to light manufacturing — wherever heavy and bulky products demand reliable weight inspection.
Bags, boxes, cartons
Rice bags, flour, oil packs
Bottles, cartons, kits
Detergents, cosmetics, drums
Components, hardware, packs
Bottles, cans, crates
Supplement bottles, tubs
Produce bags, feed sacks
Guangdong Chaoqiang focuses on intelligent detection equipment — metal detection, X-ray inspection and dynamic weighing for global food and industrial lines.
Over a decade of OEM experience building hygienic stainless-steel inspection machines for brands and integrators worldwide.
Checkweigher systems approved to OIML and MID (EC TAC) specifications, with Automatic Mean Weight correction for weight legislation support.
Onsite services, training academy and stocked spare-part kits keep your line running — anywhere in the world.
Meet the Chaoqiang team at exhibitions worldwide — and bring your samples to test on the machine live.
Get a tailored proposal for your product size, speed and accuracy target — our engineers respond within 24 hours.
