CQ-805
CQ

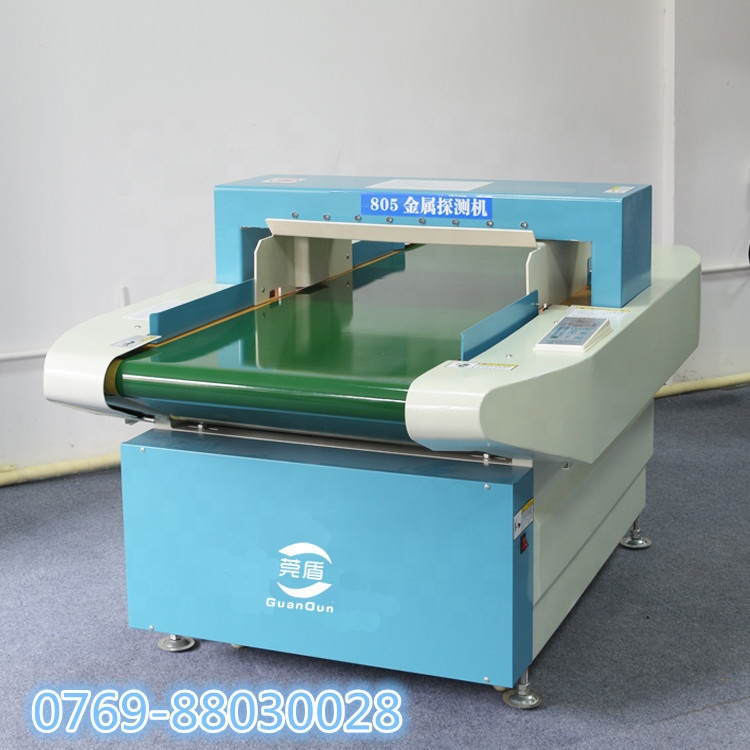

Powerful anti-interference needle detector
Model : CQ-805
Introduction:
CQ-805 powerful anti-interference needle detector is designed with digital circuit imported from Japan. It is suitable for customers with extremely high detection requirements and special requirements for anti-interference of needle detector. This machine has strong anti-interference, high sensitivity and performance Very stable.
Mainly used in toys, rubber, clothing, textiles, shoemaking, cloth, handbags, glove hardware, zippers, accessories, leather, luggage, leather, printing, food, baby products and other industries, used to detect inclusions or missing in raw materials or Broken needles, iron wires and other iron-containing metals in the product.
Features:
1. Installed imported anti-jamming device, high sensitivity, conventional 10-15 cm detection height detection diameter of 0.8-1.2 mm iron ball, nine-point test does not miss the detection, and has super anti-interference;
2. The structure is light and easy to move;
3. There are many specifications of the height of the inspection window, which can be selected by customers according to their needs;
4. Fast conveying speed, suitable for assembly line operation;
5. Can be equipped with assembly line or automatic control device.
6. Environmental protection function, the machine will shut down by itself after ten minutes without any objects.
7. It has the function of automatically retreating when bad products are detected.
8. High sensitivity, high anti-interference metal aluminum alloy shell paint, more durable,
9. Digital data processing (DSP) is adopted from data acquisition to motor control, which is highly intelligent;
10. With manual and automatic control function selection, the operation is more convenient and flexible.
11. Can accurately count the total number of qualified defective products.
Product Usage:
(1) Detect broken needles and ferromagnetic fragments (clothing toys) in sewing products.
(2) Detection of ferromagnetic impurities contained in food and medicine.
(3) Detection of ferromagnetic substances mixed in chemical raw materials, rubber, and paper industry.
(4) Detection of ferrous fragments (hardware accessories) contained in non-ferrous materials such as copper, aluminum, and stainless steel.
Parameter:
Type: CQ-805 super anti-interference high sensitivity needle detector
Detection method: magnetic field induction, digital circuit processing
Detection sensitivity: FeΦ0.8mm-2.5mm
Induction adjustment: 1-10 level adjustable
Detection width: 600mm or customized
Detection height: 120mm or customized
Alarm method: sound and light alarm, the conveyor belt automatically retreats, and the eight-point detection position is displayed
Electricity source: Ac220V 50-60Hz
Power Rate: 60W
Body size: about 1600 long × 1050 wide × 900 high (mm)
Net weight: about 180KG
