Vacuum-packed dried vegetables pass through the CQ-910K inspection zone — verified on real production with Fe 0.8 mm test cards, full auto-learning, and 100-batch report storage.

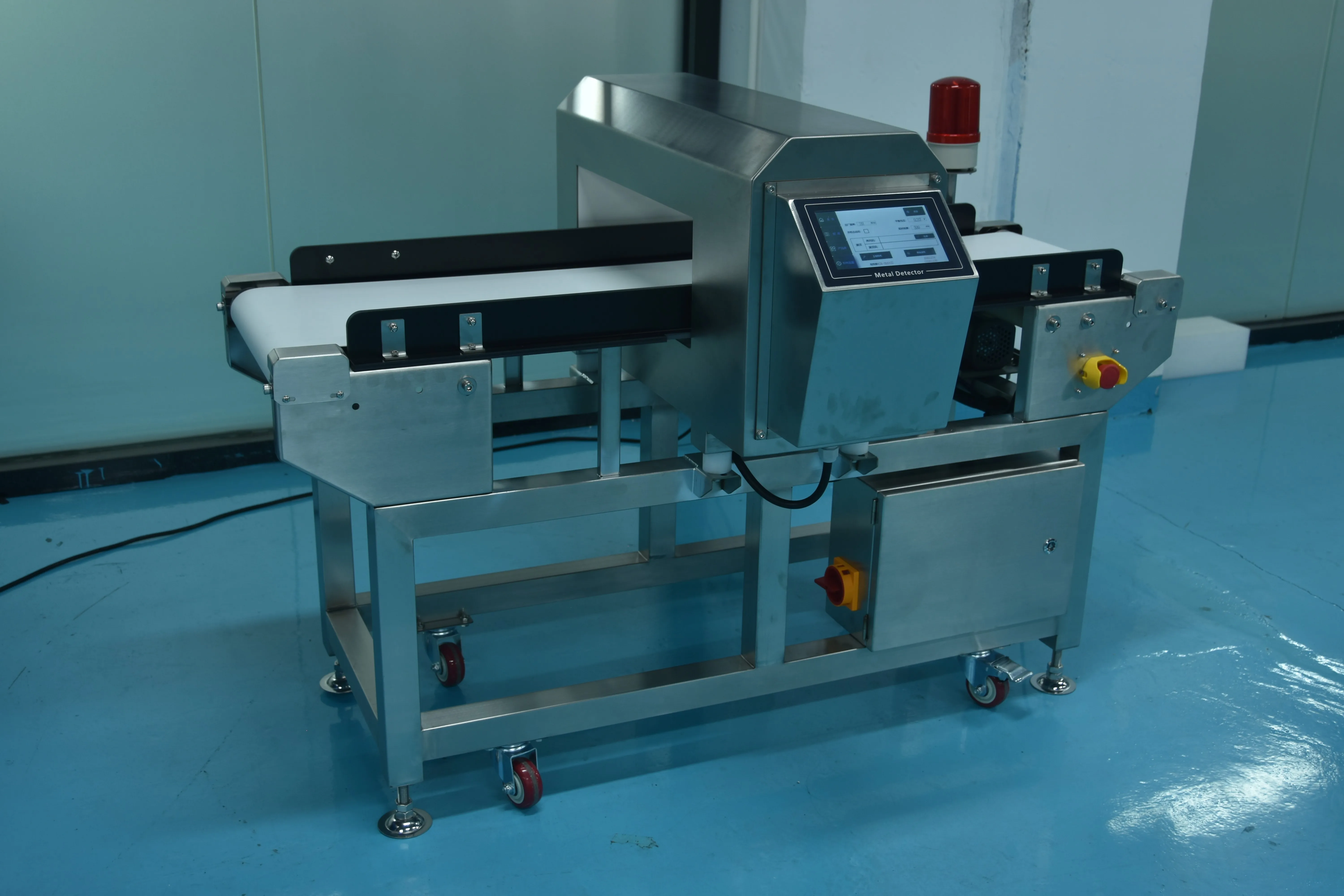

Real footage from a dried vegetable packaging floor: vacuum-sealed bags pass through the CQ-910K while the operator verifies sensitivity with standard test cards.
Dried vegetable processing runs through many metal-contact stages: cutting blades, sieves, conveyor hardware and grinding equipment can all shed metal fragments that end up sealed inside a vacuum pack. For exporters shipping dried vegetables to supermarkets worldwide, a single fragment means a recall and a lost customer.
Vacuum-packed dried product is dense and irregular — exactly the kind of product that challenges ordinary detectors with false rejects or missed detections. The line also switches between multiple vegetable types, which demands quick product changeover without re-tuning.

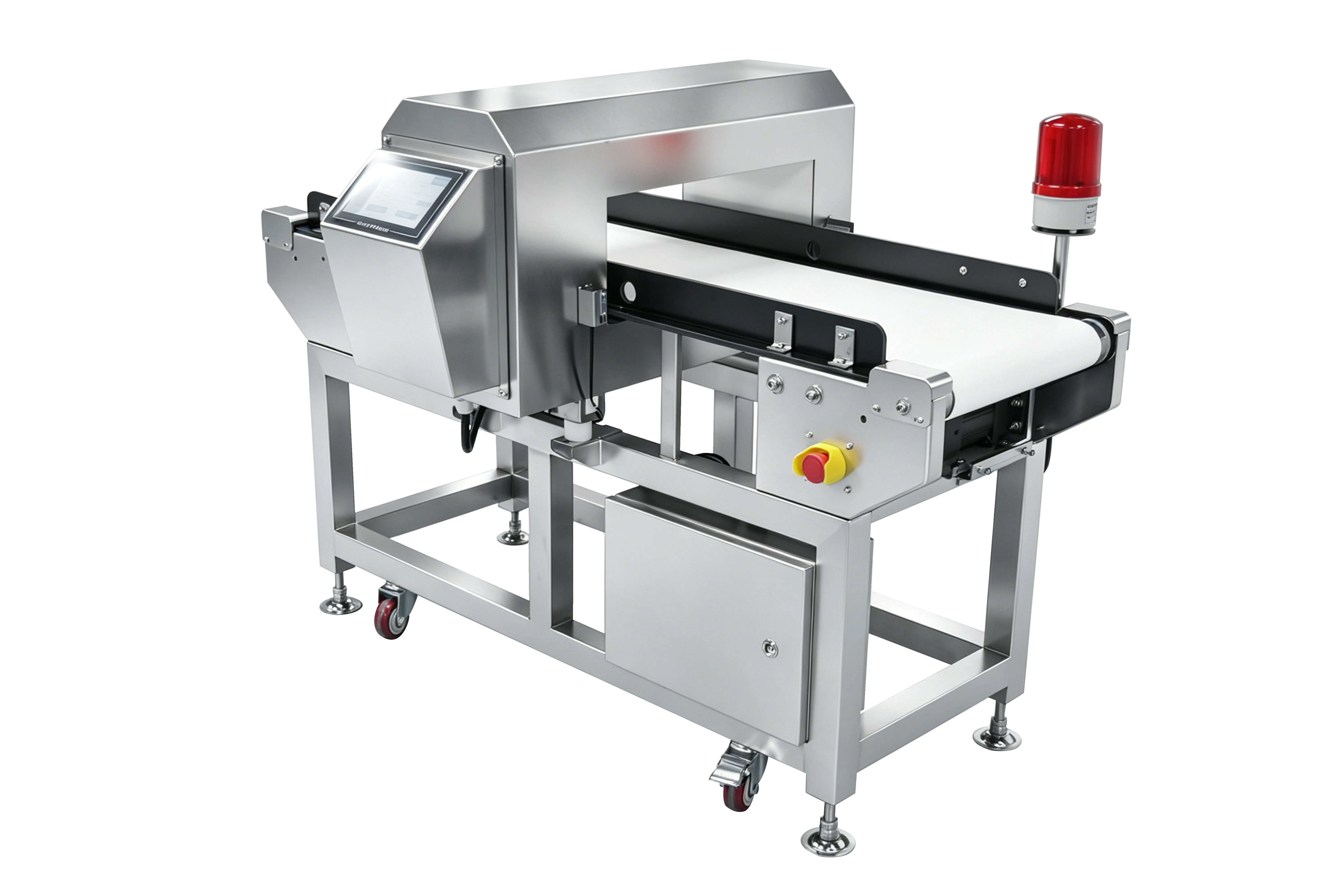

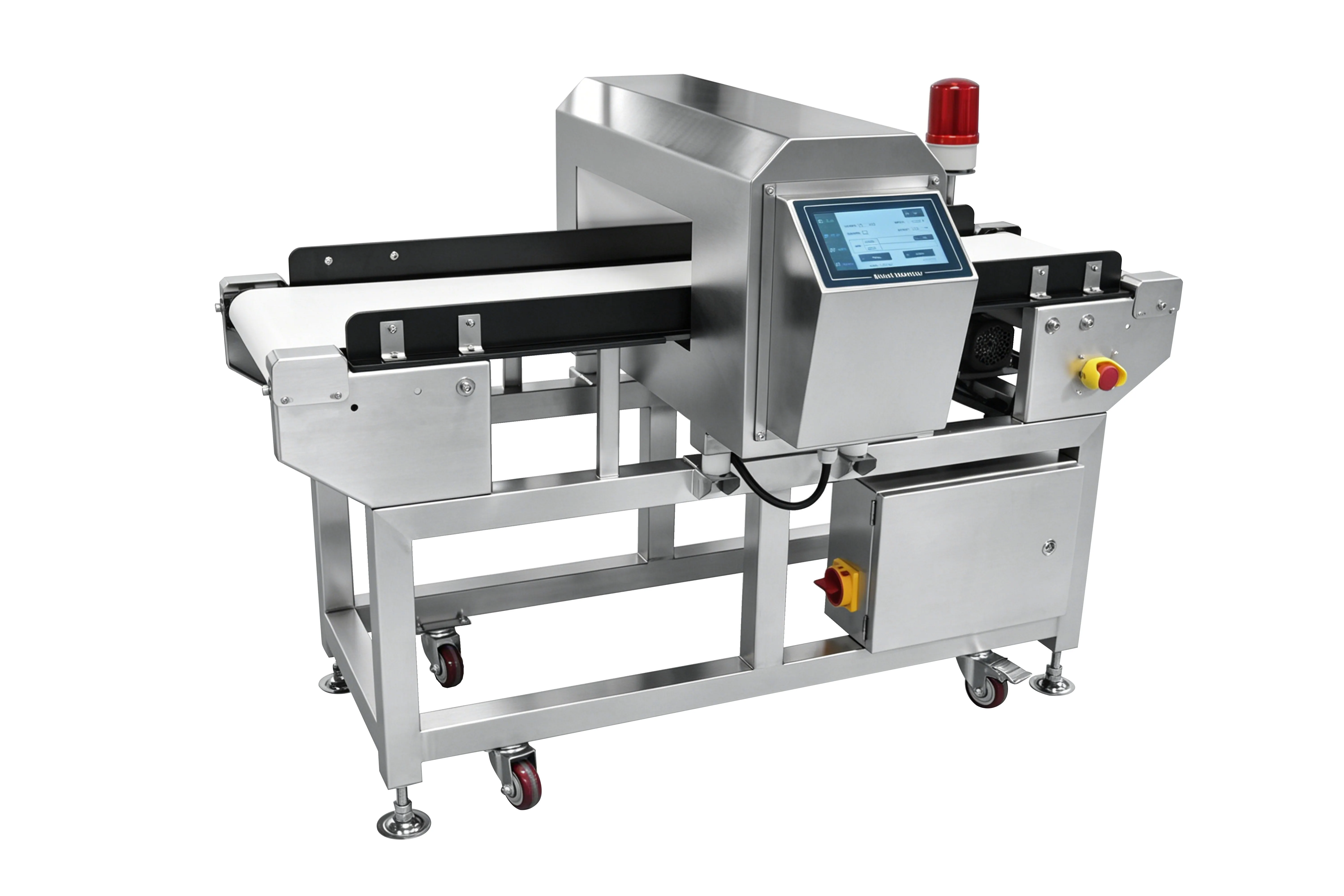

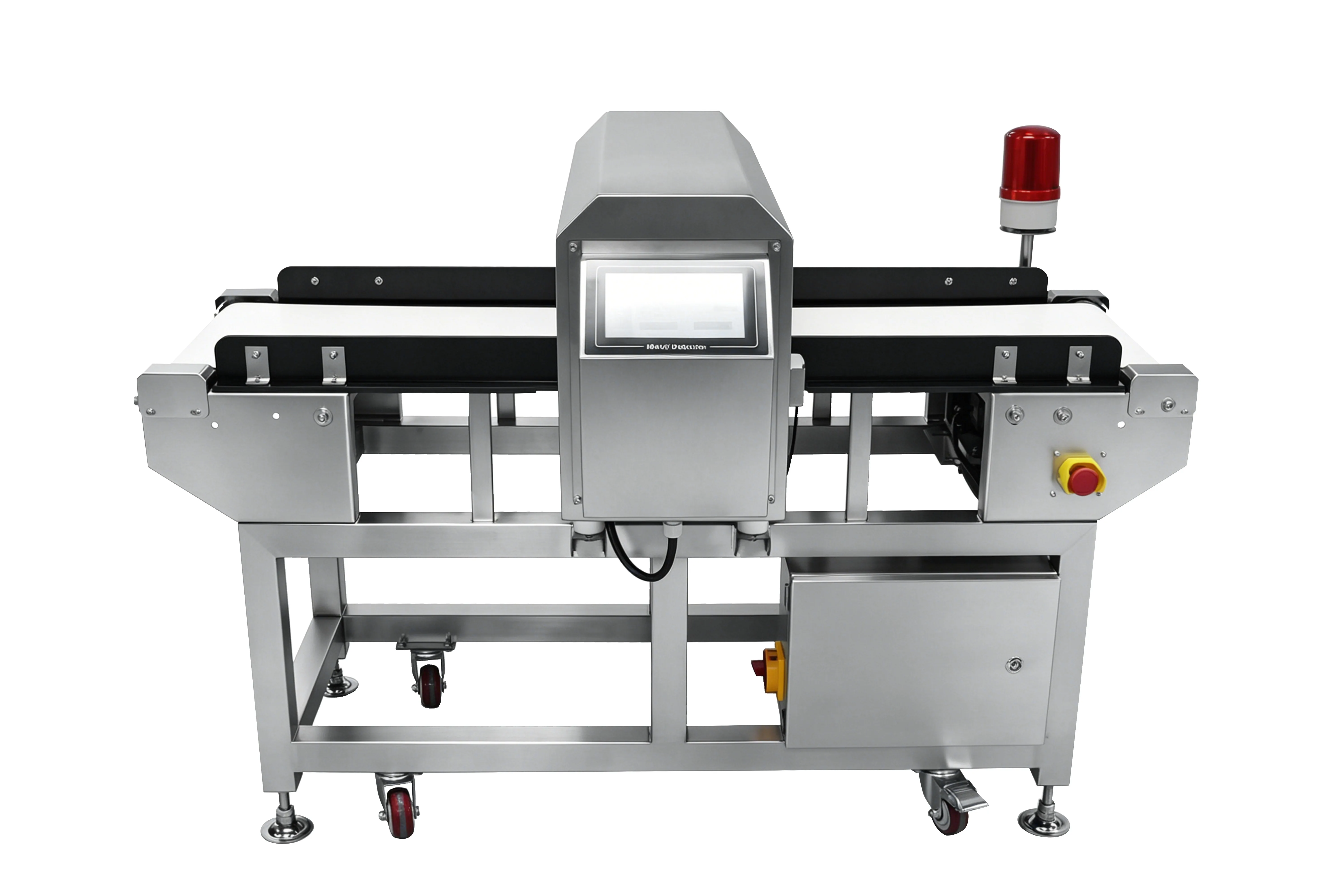

The CQ-910K is a touch screen digital metal detector built on advanced digital technology with imported core chips. Its detection coil is fully sealed for high accuracy, stable performance and strong anti-interference — essential on a busy dried vegetable packaging floor.
Operators switch between vegetable products in seconds: up to 24 product parameter sets are stored, and the improved fully-automatic learning function no longer requires manually placing products during setup. Every batch is documented — the machine stores up to 100 batch reports that survive power failure.
Standard tunnel height series — or customized to fit your packaging dimensions.
| Parameter | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|
| Detection tunnel height (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Sensitivity: Fe (φ mm) | ≥0.8 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 |
| Sensitivity: Non-Fe (φ mm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.8 | ≥4.5 |
| Sensitivity: 304 SUS (φ mm) | ≥1.5 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.5 | ≥5.0 |
Auto-learns new products without manually placing items — faster changeover, no operator expertise needed.
Production reports survive power failure and can be reset manually — audit-ready records for export compliance.
Conveyor motor speed is set directly on the touch screen — no separate drive adjustment.
Alarm-stop, flap removal, photoelectric flap, pusher removal, reverse-inspection removal/stop and alarm rewind — all selectable on screen.
Shields interference at motor start-up, solving start failures in electrically noisy environments.
Imported chips with a fully sealed detection coil — high accuracy, stable performance, strong anti-interference.

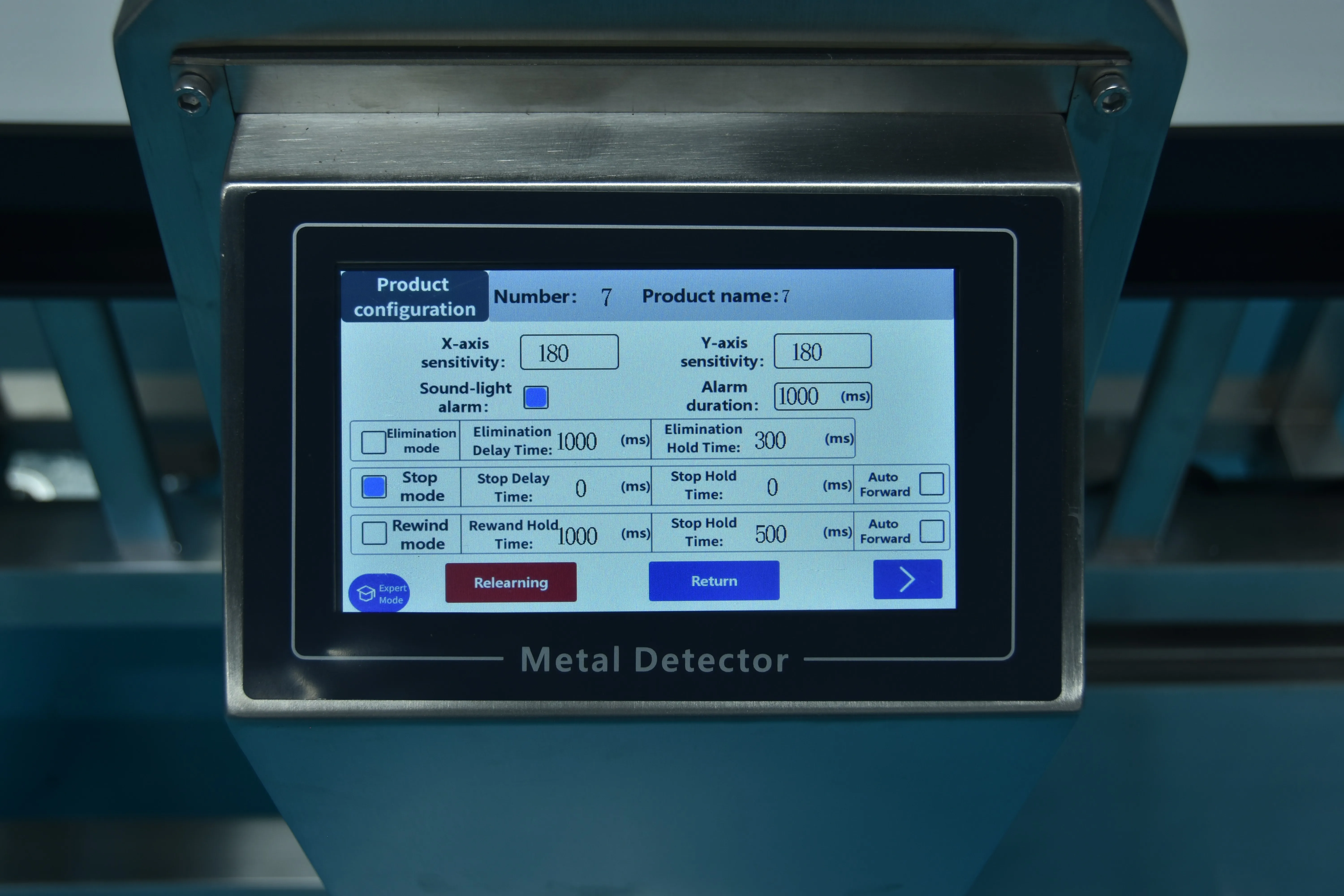

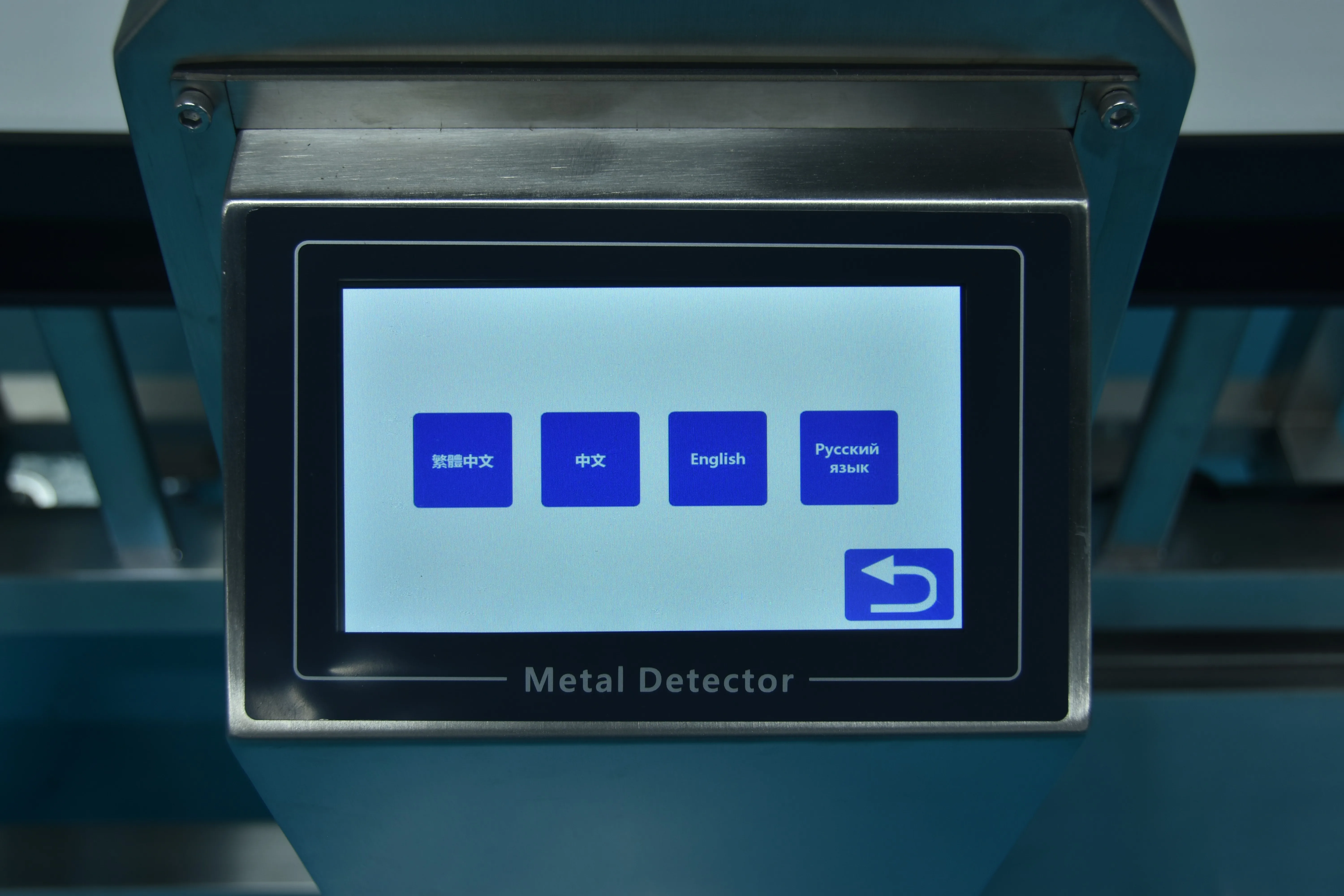

Multi-language interface, product configuration in a few taps, and hygienic stainless steel throughout.
The CQ-910K installs inline between weighing and packing — fully automated, no operator intervention.
Vacuum-sealed dried vegetable packs enter the detection tunnel on the existing conveyor — no line layout changes.
The sealed-coil electromagnetic field inspects every pack for Fe, non-Fe and stainless steel fragments.
Auto-learned product profiles compensate for the dense, irregular pack effect — separating real metal from product signal.
Contaminated packs trigger the configured mode — alarm-stop, flap, pusher or rewind removal; clean packs continue to cartoning.
Send us your dried vegetable samples — our engineers will run them through the CQ-910K, verify detection on your specific contamination risk, and configure the right tunnel size and reject mode.
