Metal Detector with Front End Extrusion

Availability:

Quantity:



Inquire Add to Basket

Product Description

Remarks:

Remarks:
Description:

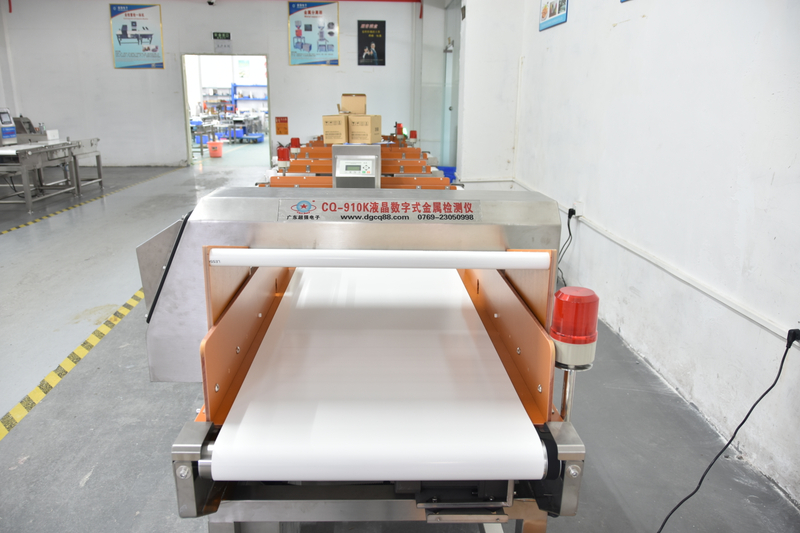

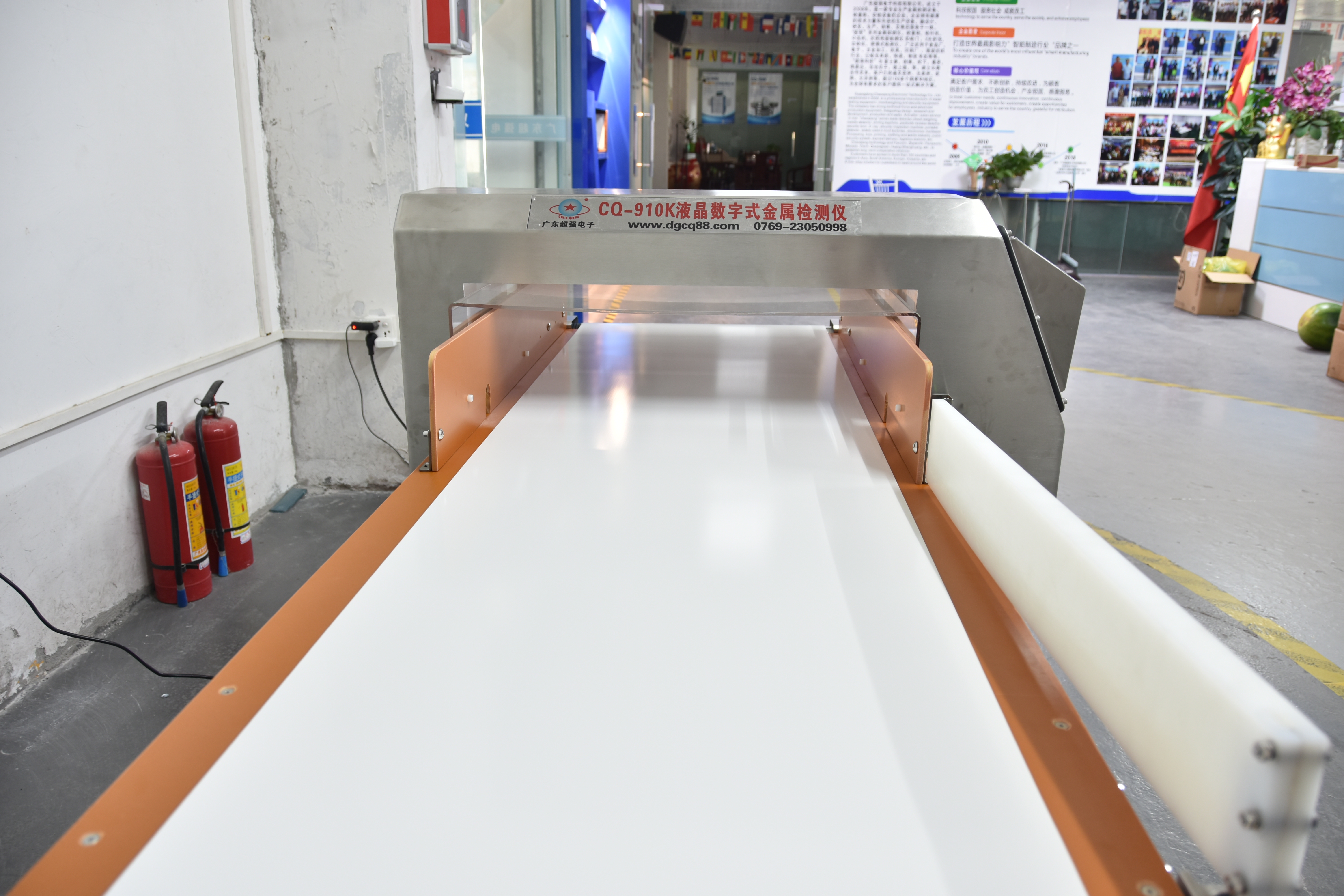

Metal detector for food industry
is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and
memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection
efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting
parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without
manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and
save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65

product Parameters

Detected Height(mm)	80	100	150	200	250	300	350
Belt Width(mm)	250	250	400	400	400	400	400
Belt length	1500
Detector sensitivity(mm)	Fe 0.8	Fe 1.0	Fe 1.2	Fe 1.5	Fe 2.0	Fe 2.5	Fe 3.0
	SUS 1.0	SUS 2.0	SUS 2.5	SUS 2.5	SUS 3.0	SUS 3.5	SUS 4.0
	N-Fe 1.0	N-Fe 1.5	N-Fe 2.0	N-Fe 2.0	N-Fe 2.5	N-Fe 3.0	N-Fe 3.5
Speed of belt	25M/min (Fixed speed) ; If you need adjust 5-40 M/min , please inform us before order
Load ability	20KG
Count	100
Warning method	Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)
Reject Ways	when has auto-reject system ,belt continue and rejecting the goods
Application	Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment	Temperature -10℃-40℃ ,relative humility 30-90%
