XP-150

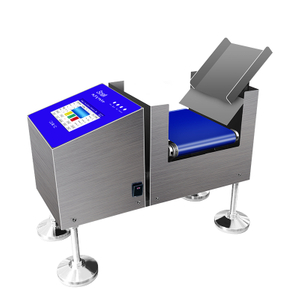

Mini automatic checkweigher with rejector
Weighing table size：250mm*150mm
Checkweigher performance description
• Weighing controller;
• High precision sensor;
• Display: 7-inch highlight touch screen;
• Motor: stepper motor, power 100W;
• Frame material: stainless steel guard;
• Transmission belt: PU material;
• Maximum weighing: 200g;
• Accuracy: ±0.1g;
• Display division value: 0.01g;
• Speed: 35 pieces/minute;
• Weighing conveyor belt 230mm*100mm;
• The height of the platform is 222±30mm;
• Industrial embedded computer and real-time operating system;
• Two weight zones: qualified and unqualified (the selection of other zone sorting functions requires external structure and independent configuration);
• Product statistical data display and data report query
• The electrical protection level of the whole machine is IP54;
• Using environment: In order to ensure the best accuracy, the installation location of the checkweigher should be far away from the vibration source and the air outlet, and the temperature is -10~40℃
• Power supply voltage 220VAC, 50HZ
Brand | Name | Specification/Model | Quantity |
Weinveiw | touch screen | TK6071IQ 7 inches | 1 |
CNAC | sensor | 10KGAluminum | 1 |
Omron | power supply | S8JC-C100 24C | 1 |
Somo | Master switch | SLD2(3LD2-32A) | 1 |
Habasit | Weighing belt | 525*150*0.7 | 1 |
