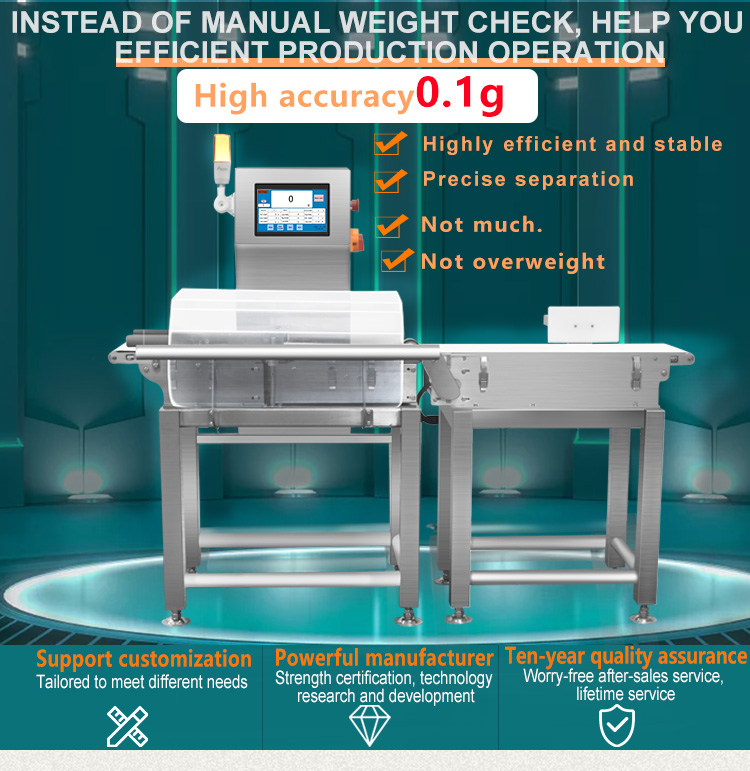

electric carton Check Weigher with alarm lamp

Features
Function and structure characteristics of check weigher

1. apply advanced digital signal processing and realize high speed and stable weighing.

2. with liquid crystal and tangibly screen, it is easy to operate.

3. self-diagnosis function, when Rom/Ram, A/D light electric tube.

4.Belt disassembling without tools, which is easier to clean

5.Automatic stop by sound and light .air blast. or penumatic push rod

emergency stop button for safety working condition(according to customers choosing)

6.Solid SUS304 stainless steel structure enable for good performance

Accuracy ::	0.1g
Rated Load : :	3kgs
Material: :	SUS304 stainless steel
Display: :	Digital LED Display
Check speed: :	90piece/min
Availability:

Quantity:



Inquire Add to Basket

Product Description

Related Products

Model	CQ-XP1010	CQ-XP210	CQ-XP300	CQ-XP400	CQ-XP500	CQ-XP600
Weighing range	200g	1000g	3000g	15kgs	40kgs	50kgs
Weighing accuracy	±0.05g-±0.1g	±0.3g-±1g	±0.5g-±2g	±2g-±10g	±5g-±15g	±8g-±20g
Display resolution	0.01g	0.1g	0.1g	1g	1g	5g
Conveyor speed	20-60m/min	30-100m/min	30-90m/min	30-70m/min	20-35m/min	15-25m/min
Sorting speed	180pieces/min	160pieces/min	80pieces/min	70pieces/min	30pieces/min	30pieces/min
Belt height	700mm±30mm	700mm±30mm	700mm±30mm	700mm±30mm	700mm±30mm	700mm±30mm
Infeed part	250(L)*120(W)mm	400(L)*210(W)mm	450(L)*300(W)mm	620(L)*400(W)mm	-	-
Weighing part	250(L)*120(W)mm	400(L)*210(W)mm	450(L)*300(W)mm	620(L)*400(W)mm	900(L)*500(W)mm	1200(L)*600(W)mm
Rejection part	400(L)*120(W)mm	700(L)*210(W)mm	900(L)*300(W)mm	900(L)*400(W)mm	900(L)*500(W)mm	935(L)*600(W)mm
