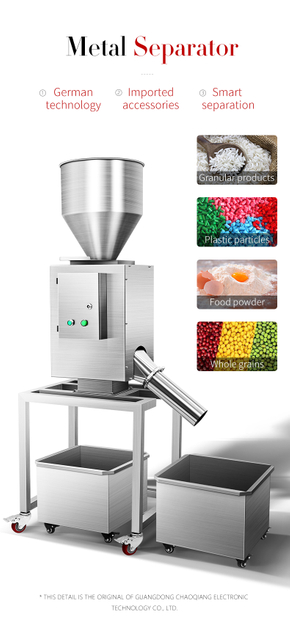

Separation as long as it is metal, such as iron, copper, stainless steel, aluminum, etc. The minimum metal is 0.3MM, and the sensitivity can be adjusted according to the actual production needs, microcomputer control, LED indication. Fast response and high accuracy. The machine is small in size, easy to install, and can be directly installed on the device. Used in food, plastics, packaging and other industries.
Scope of application:
Food industry: testing plastic raw materials. nozzle materials. powder, granules, popcorn, cornflakes, potato chips, nuts, fruits and noodle soup
Chemical industry: testing mixtures (can be directly removed from the metal)
Device Description

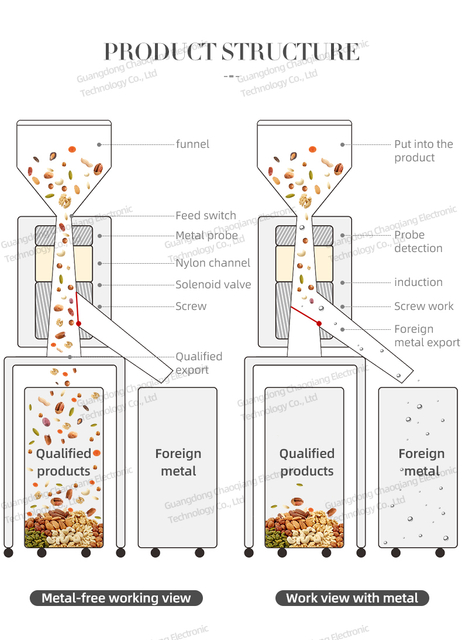

The metal separation system removes magnetic and non-magnetic metal impurities (steel, stainless steel, aluminum, etc.) from the free-falling bulk material through a turret funnel without any interference with product handling. This has proven to be a particularly effective method of removing impurities from grain, light, fragile and wet bulk materials.
1. Metal separator application characteristics
Testing products Large granular loose products
Dry, flowable, fine grain (particle diameter < 6 mm,
Fusion free fall and dumping
Conveyor plastic industry food industry chemical industry other industry
Typical range of metal separators for quality inspection of plastic pellets, mixtures or carbon-containing additives
2. Metal separator features:
As long as it is metal, it can be separated, such as iron, copper, stainless steel, aluminum, and so on. The minimum metal is 0.3MM, and the sensitivity can be adjusted according to the actual production needs, microcomputer control, LED indication. Fast response and high accuracy. The machine is small in size, easy to install, and can be directly installed on the device. Used in food, plastics, packaging and other industries.
Controller parameter
Detection part: German import
Control computer: Germany MEITLE
Start solenoid valve
Execution cylinder Japan SMC
Gas filter Japan SMC
Housing material: painted steel plate
Operating voltage: 220 VAC (+/- 10%) (with voltage selector switch), 50/60 Hz
Input current: 80/160 mA
Fuse: 2 315 mAh
Ambient temperature: -10/60 degrees
Protection level: IP65
Input terminals: test button, manual separation, reset, compressed air monitoring
Output terminal: counting, metal detection
3. Machine parameters
Compressed air: 4-8 kg, 6-8 mm hose connection
Air consumption: 0.4 liters per separation action
Protection level: IP54
Separation time: 0.2-2.5 seconds, 0-10 stepless adjustable detection accuracy
4. Equipment Advantages
Products containing long fibers do not block the discharge equipment.
Avoid disorder and product agglomeration (light and thin products)
Hygienic design, discharge device rustproof and waterproof
Avoid prolonged product accumulation and moldy mold
Quick and easy cleaning by cleaning the sheets
