stable adjustable food metal detector for carton

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview

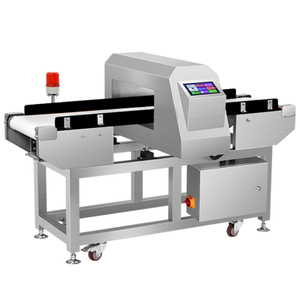

Metal Detector

1.Professional metal detector, provide inspection report and calibration certificate.

2.The company was established in 2008 with a business license.

3.Appearance design patent certificate

Product advantages

1.Wide range of applications

2.High-precision measurement3.304 stainless steel is durable4.Food grade belt safety5.Imported chip digital technology and high technology6.Stable performance and anti-interference7.Product effect automatic learning function Anti-check function8.100 kinds of product parameter memory storage9.Secret function security and privacy10.Obtained a patent for beautiful appearance

11.Complete certificates, including inspection certificate, instruction manual, factory video, etc.

Product Specifications

Model Type.		CQ-818
		4010	4012	4015	4020	4025	4030	4035
Detection channel width (mm)		400
Detection channel height (mm)		Conventional machine			Non-standard custom inspection window height
		100	120	150	200	250	300	350
Sensitivity	Fe ( ≥ ømm)	0.7	0.8	1.0	1.5	2.0	2.5	2.8
	Cu/Al ( ≥ ømm)	1.3	1.5	1.8	2.0	2.5	2.8	3.7
	stainless steel ( ≥ ømm)	1.5	2.0	2.0	2.5	3.0	3.3	4.3
The machine material		The whole machine is made by 304 stainless steel cold drawing process
Type of alarm		Automatically shut down and alarm when metal foreign body is detected, optional customized rejection device: flap, lever, push rod, air jet, etc.
Machine size		1400x820x900 (LxWxH) Customized
Machine weight		about 200Kg
Power		220V 50-60Hz 120w
Loading capacity		≤10Kg speed:25~30m/min
Working desk		height 700mm ,Customized
1.Conventional machines are available from stock, and the sensitivity parameter is the all-round test value of the empty machine. 3.The actual value is related to the test height of the machine and the product itself.

890520967418113156 907834442933807067 微信图片_20180827120301

Guangdong Chaoqiang Electronic Technology Co., Ltd., established in 2008, is a professional manufacturer of metal testing equipment, checkweighing and security equipment. The company has strong technical force and advanced production equipment, integrating design, research and development, production and sales. And after-sales service in one.

"chaoqiang" series metal detector,check weighing, needle detector, sorting machine, pesticide residue detector security door, X-ray, security inspection machine, portable detector, widely used in food factories, electronics, hardware Processing, toys, printing, clothing and textile industry, public security system, express delivery, logistics stations, etc.
