Scope of application:
This product is suitable for testing the weight of individual products. It is widely used in many industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, agricultural and sideline products. Such as food industry conditioning products, cakes, ham, instant noodles, frozen foods, food additives, pigments, modifiers, preservatives.
| Highest speed: | |
|---|---|
| Weighing accuracy range: | |
| Material: : | |
| Display Type:: | |
| Quantity: | |
CQ-XP210
Chaoqiang
8423209000

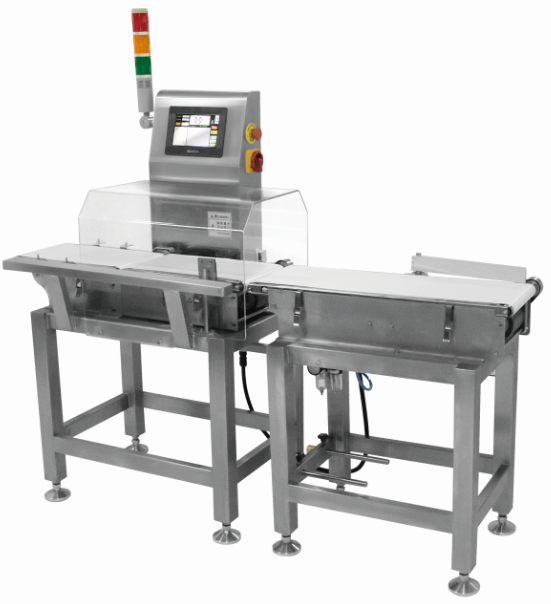

Machine Details:
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Technical Data Sheet | |
Power supply | AC220V±10% 50HZ（60HZ） |
Rated power | 0.15KW |
Single weighing range | ≤1000g |
Weighing accuracy range | ±0.3g~±0.5g |
Minimum scale | 0.1g |
Counterweight combination Speed | 30～100m/min |
Sorting the highest speed | 160 pcs/min |
Weighing material length | ≤280mm（L）*200mm（W） |
Weighing conveyor belt size | 400mm（L）*210mm（W） |
Equipment size | 1522mm（L）*560mm（W）*1222mm（H） |
Rejection method | Pusher |
Control System | High speed A/D sampling controller |
Preset product number | 100 pcs |
Operation direction | Facing the machine, from left to right |
External air supply | 0.6-1Mpa |
Pneumatic interface | Φ8mm |
Working environment | Temperature: 0 ° C ~ 40 ° C, Humidity: 30% ~ 95% |
Machine material | Stainless steel 304/POM |
Product Features:
Strong versatility: the standardization structure of the whole machine and the standardized man-machine interface can complete the weighing of various materials;
Simple operation: Fully intelligent and humanized design using Weilun color human-machine interface; conveyor belt is easy to disassemble, easy to install and maintain, easy to clean;
Speed adjustable: The motor is controlled by frequency conversion, and the speed can be adjusted according to needs;
High speed and high precision: high precision digital sensor, fast sampling speed and high precision;
Zero tracking: can be manually or automatically cleared, and dynamic zero tracking;
Report function: built-in report statistics, the report can generate EXCEL format, can automatically generate a variety of real-time data reports,U disk can store more than 1 year of statistical data, support the production status at any time; provide factory parameter setting recovery function, and Store a variety of recipes, easy to replace product specifications;
Interface function: reserved standard interface, convenient data management, communication with PC and other smart devices;
Self-learning: no need to set parameters after creating new product recipe information, use the self-learning function to automatically set the device suitable parameters, and save it for convenient call when switching products next time. (The parameter storage entry is 100, which can be increased).
Related Products
| Model | CQ-XP1010 | CQ-XP210 | CQ-XP300 | CQ-XP400 | CQ-XP500 | CQ-XP600 |
| Weighing range | 200g | 1000g | 3000g | 15kgs | 40kgs | 50kgs |
| Weighing accuracy | ±0.05g-±0.1g | ±0.3g-±1g | ±0.5g-±2g | ±2g-±10g | ±5g-±15g | ±8g-±20g |
| Display resolution | 0.01g | 0.1g | 0.1g | 1g | 1g | 5g |
| Conveyor speed | 20-60m/min | 30-100m/min | 30-90m/min | 30-70m/min | 20-35m/min | 15-25m/min |
| Sorting speed | 180pieces/min | 160pieces/min | 80pieces/min | 70pieces/min | 30pieces/min | 30pieces/min |
| Belt height | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm |
| Infeed part | 250(L)*120(W)mm | 400(L)*210(W)mm | 450(L)*300(W)mm | 620(L)*400(W)mm | - | - |
| Weighing part | 250(L)*120(W)mm | 400(L)*210(W)mm | 450(L)*300(W)mm | 620(L)*400(W)mm | 900(L)*500(W)mm | 1200(L)*600(W)mm |
| Rejection part | 400(L)*120(W)mm | 700(L)*210(W)mm | 900(L)*300(W)mm | 900(L)*400(W)mm | 900(L)*500(W)mm | 935(L)*600(W)mm |
