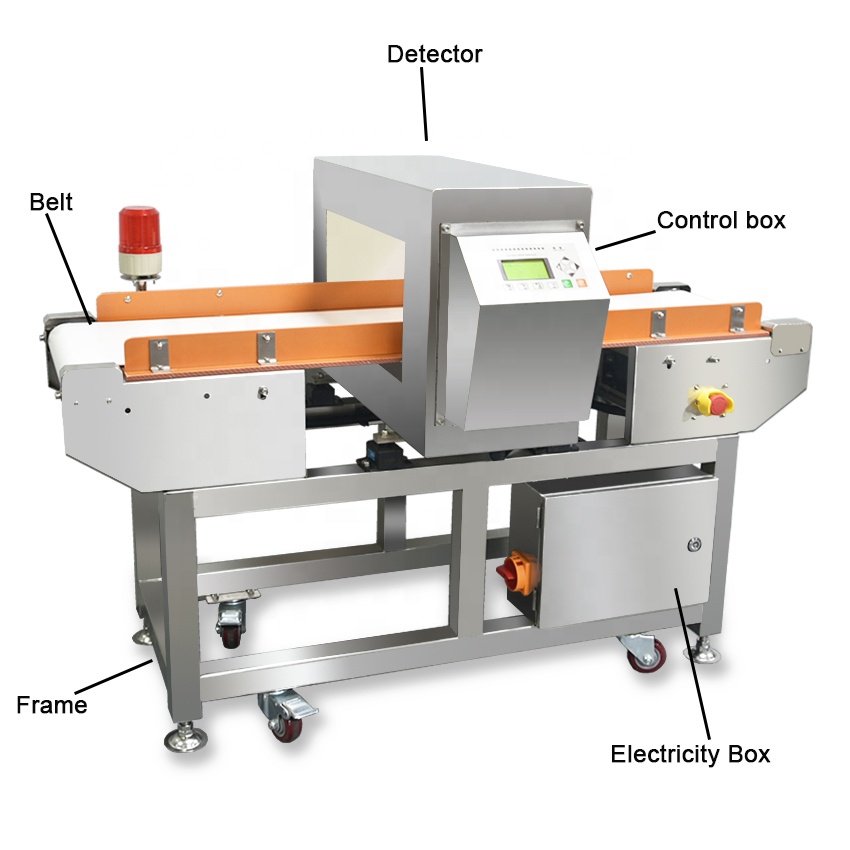

CQ-818 Metal Detector for Food

Product introduction

The metal detector is an apparatus that uses an electromagnetic field to inspect an article on a conveyor belt, and when a metal signal of a set value or more is detected, outputs an alarm of metal mixing or a device that outputs a reject command signal sent by a selector.

1.Conventional machines are available from stock, and the sensitivity parameter is the all-round test value of the empty machine.
3.The actual value is related to the test height of the machine and the product itself.

Products description:

1. Made of 304 stainless steel, durable and nice appearance, conveyor and pallet assembly used in the food grade materials.

2. Digital machine, memory function for registering various products(Max: 100items). 3. adopt the combine technology of double signal and detection circuit, LCD display, with Chinese and English menu, easy operation.

4.Adopt Germany professional detection technology with balanced principle, more reliable, better performance.Dual-channel and frequency detecting ferrous, non-ferrous and stainless steel.

5. DSP and MCU combination of the detection signal for data sampling and data processing, improve the detection results.

6. Able to detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials.

7. With the learning function of automatic identification, overcome the effect of products materials efficiently, strong anti-interference and shock proof.

8. fairly good waterproof ability, apply to high temperature, low temperature, damp, dry, dust, dew and other poor work environment.

9.Can learn itself, not need to set the parameter ourselves. And also can store 100 different kinds of products parameters.

10.The sensitivity is the result of testing without any products, and the sensitivity will be some difference according to the different kinds of products, packing materials and weight.

Product installation

1.The temperature is not lower than 0 ° C and does not exceed 40 ° C.

2.The humidity is in the range of 30~85%, and there is no condensation.

3.There is no direct sunlight, and there are no heating appliances such as stoves and heaters nearby.

4.The power supply voltage fluctuation range does not exceed +10%, -15%.

5.Keep away from vibration sources and places where vibration is unlikely to occur.

*A place with less dust.

*Locations free of volatile combustibles, corrosive gases and salt water.

*The hot and cold air of the air conditioner is not directly facing the place where the equipment is blown.
