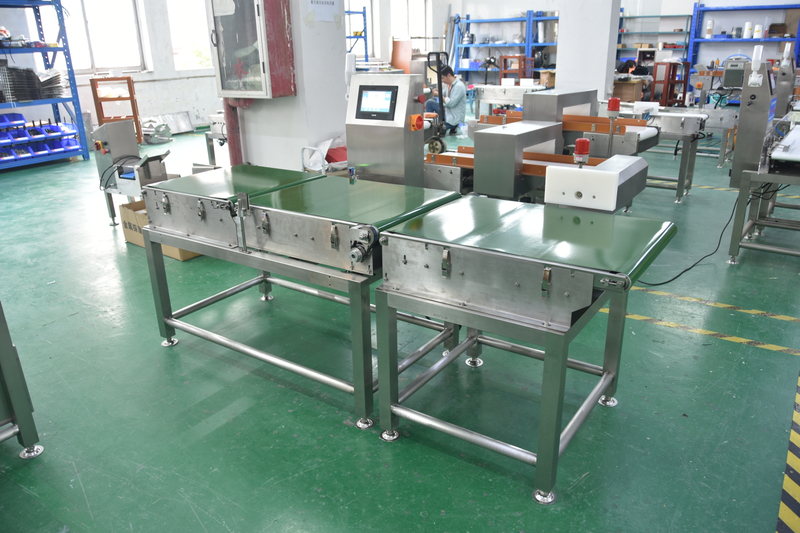

Large range dynamic checkweigher
Scope of application:
This product is mainly suitable for the weight detection of heavy and bulky items, especially for the detection of missing items in the whole box; such as: missing bottles, missing boxes, missing pieces, missing pieces, missing bags, missing cans, etc.
| Quantity: | |
|---|---|
CQ-XP500/600
CHAOQIANG
Technical Data Sheet
Model | CQ-XP500 |
Power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.4KW |
Single weighing range | ≤40kg |
Weighing accuracy range | ±4g~±10g |
Minimum scale | 1g |
Convey speed | 20～35m/min |
Maximum speed | 30 pcs/min |
Weighed product length | ≤650mm(L)*490mm(W) |
Scale conveyor belt size | 900mm(L)*500mm(W) |
Machine size | 1888mm（L）*935mm（W）*1060mm（H） |
Reject method | Pusher |
Control system | High-speed A/D sampling controller |
Preset product number | 100 pcs |
Operation direction | Facing the machine, from left to right |
External air source | 0.6-1Mpa |
Air pressure interface | Φ8mm |
working environment | Temperature: 0℃～40℃, humidity: 30%～95% |
Body material | SUS304 |
Product Features:
l Strong versatility: The standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials;
l Easy to operate: use Weilun color man-machine interface, fully intelligent and humanized design; the conveyor belt is easy to disassemble, install and maintain, and is easy to clean;
l Adjustable speed: The motor is controlled by frequency conversion, and the speed can be adjusted as required;
l High-speed and high-precision: using high-precision digital sensors, fast sampling speed and high precision;
l Zero tracking: can be manually or automatically cleared, and dynamic zero tracking;
l Report function: built-in report statistics, the report can be generated in EXCEL format, can automatically generate a variety of real-time data reports,The U disk can store statistical data for more than one year, and can hold the production status at any time; provide the factory parameter setting recovery function, and can store a variety of formulas, easy to change product specifications;
l Interface function: Reserve a standard interface, which is convenient for data management, and can communicate with PC and other smart devices;
l Self-learning: After creating new product formula information, there is no need to set parameters. Use the self-learning function to automatically set equipment suitable parameters, and store them to facilitate the next time you switch products. (100 parameter storage entries can be added).
l Operating mode: three operating modesa.
a. Dynamic mode: normal pipeline mode;
b. Static mode: After the material enters the weighing platform, the weighing platform stops running, and weighs to improve accuracy, suitable for products with less than 20 passes per minute;
c. Energy-saving mode: (optional) On the basis of modes a and b, the energy-saving mode can be turned on, and the shutdown period of no material passing is set. When the equipment is idling, it will automatically stop after a long period of time, and then automatically start when there is material passing.
l Fault self-detection: self-detection: whether the motor, frequency converter, AD, sensor and photoelectricity are normal, the cause of the fault, and the pilot detection of the cylinder, solid state relay, and solenoid valve. It is convenient for non-professionals to check and repair.
l Peripheral equipment communication: standard RS-485 and RS-232 dual communication port output.
a.The RS-485 interface is MODBUS, RTU standard protocol, but the write address (57600bps, 8, N, 1, and the slave station number is 3) can not be modified.
b.(Optional) The RS-232 interface is a self-defined protocol, and you can set the content of instructions to send by yourself. (57600bps, 8, N, 1) can be modified.
l External communication devices such as printers or inkjet printers can also be connected with front and rear packaging machines and production equipment to feed back the weighing results so that the formula parameters can be automatically modified.
l Chinese input method
a. The name of the formula can be input in Chinese, which is more intuitive when searching and switching formulas.
b. With RS-232 communication port, it can send Chinese characters of Unicode string to peripheral equipment. (Suitable for printing Chinese characters with external printer or marking machine).
