CQ-910K
Chaoqiang

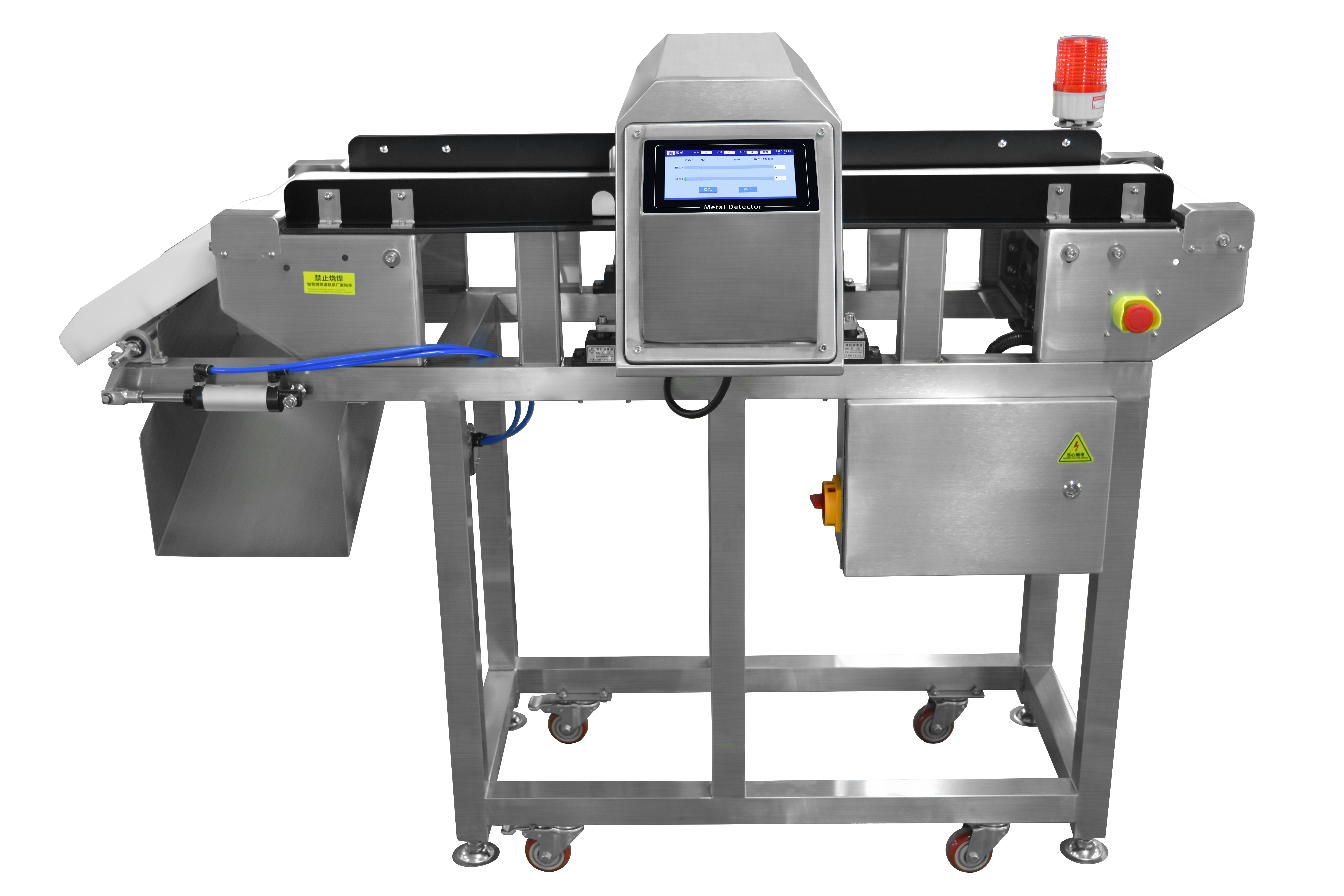

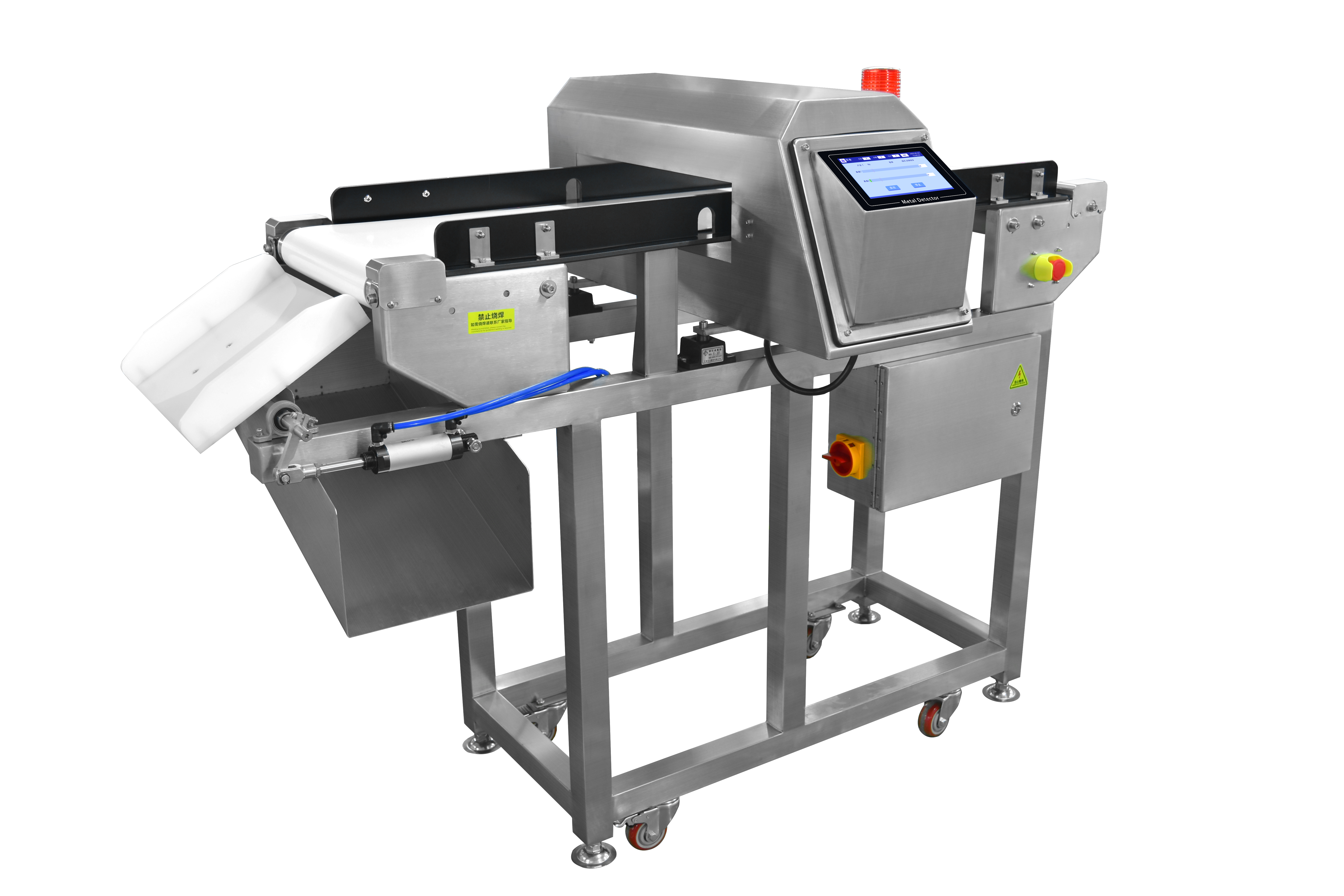

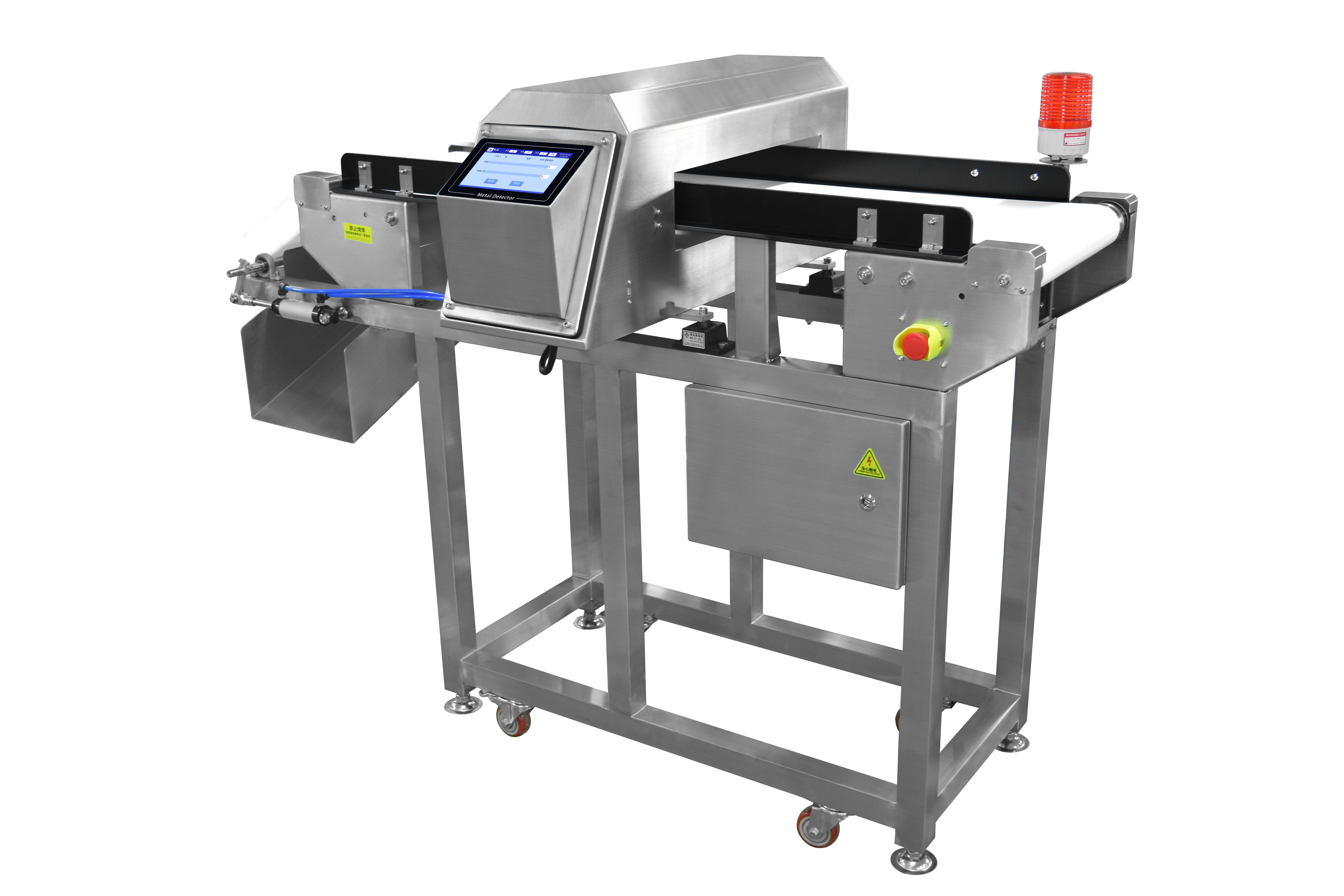

A conveyor metal detector with pneumatic flap / pusher rejection, self-learning intelligence and a customizable detection tunnel — catches ferrous, non-ferrous and stainless contaminants before they reach your customers.
Detection sensitivity is validated per tunnel height. The 910K accepts fully customized tunnel dimensions, rejection types and storage capacity for your specific production line.
| Tunnel Height (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|
| Fe (φφmm) | ≥0.8 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 |
| Non-Fe (φφmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.8 | ≥4.5 |
| 304 SUS (φφmm) | ≥1.5 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.5 | ≥5.0 |
Newly Upgraded · Performance Enhancement
Every component is selected to keep your line running — precise detection, fewer false rejects and less operator intervention.
Intuitive 7-inch color interface. Set speed, modes and parameters directly on screen — no PC or specialist required.
Precise signal processing pinpoints the contaminant position for clean, consistent rejection with minimal product loss.
Reliable triggering and counting. The reject system reacts precisely to every contaminated item passing the detection head.
Digital core developed with advanced technology and original imported chips. Sealed detection coil delivers stable, anti-interference performance.
Fully automatic learning — no manual product placement needed. Select auto-setting and obtain optimum sensitivity without tuning.
Advanced SUS304 construction resists rust and oxidation in humid production environments — built for daily washdown.

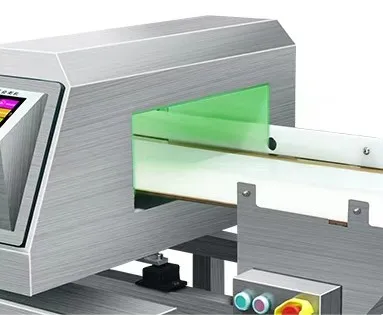

The detection head and conveyor belt are the heart of the machine — engineered to hold sensitivity while your line runs at speed.
High-temperature 3.5 copper wire wound 360° around the aperture and sealed with resin in one pass. The result: stable sensitivity, strong anti-interference and long service life.
Specialized hygiene conveyor belt certified for direct food contact, with pneumatic flap / pusher rejection into a stainless collection chute — safe to place on any assembly line.
Attention to every mechanical detail keeps the 910K stable in continuous operation and simple for your operators to maintain.
1 Keeps the belt perfectly on track for smoother, deviation-free running.
2 Rejects axis deviation and effectively reduces running noise.
3 Prevents clothing from being caught and protects operator safety.
4 Artificial body anti-static design for safer operation in dry environments.
5 Large mushroom-type E-stop ensures employee safety during machine use.

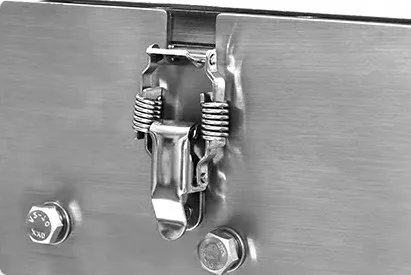

6 Modular latch design — maintenance is more convenient than ever.
The upgraded 910K adds production-grade data tools: batch reports, motor speed control and interference shielding — standard on every unit.
Store up to 24 product test data sets — multiple product storage parameters can be customized according to your requirements.
Fully automatic learning no longer requires manual placement of products — get the best sensitivity in seconds.
Batch production reports are stored without loss after power failure — up to 100 batch reports, manually resettable.
Conveyor belt motor speed can be set directly on the touch screen — no inverter cabinet adjustments needed.
Select alarm shutdown, flap removal, photoelectric flap, pusher removal, reverse inspection removal, reverse inspection shutdown or alarm rewind on screen. Reserved interfaces connect with your control equipment.
Shields interference at the moment of motor start — solves start-up failure in environments with serious electrical interference.
From bakeries to seafood plants — proven on the line across food, aquatic and poultry production.
We are a source manufacturer of inspection equipment — the 910K is built, tested and batch-run in our own plant.
Direct factory pricing, full control over machining, assembly and quality inspection.
Tunnel width, height, belt speed, rejection type and storage capacity — configured to your product and line.

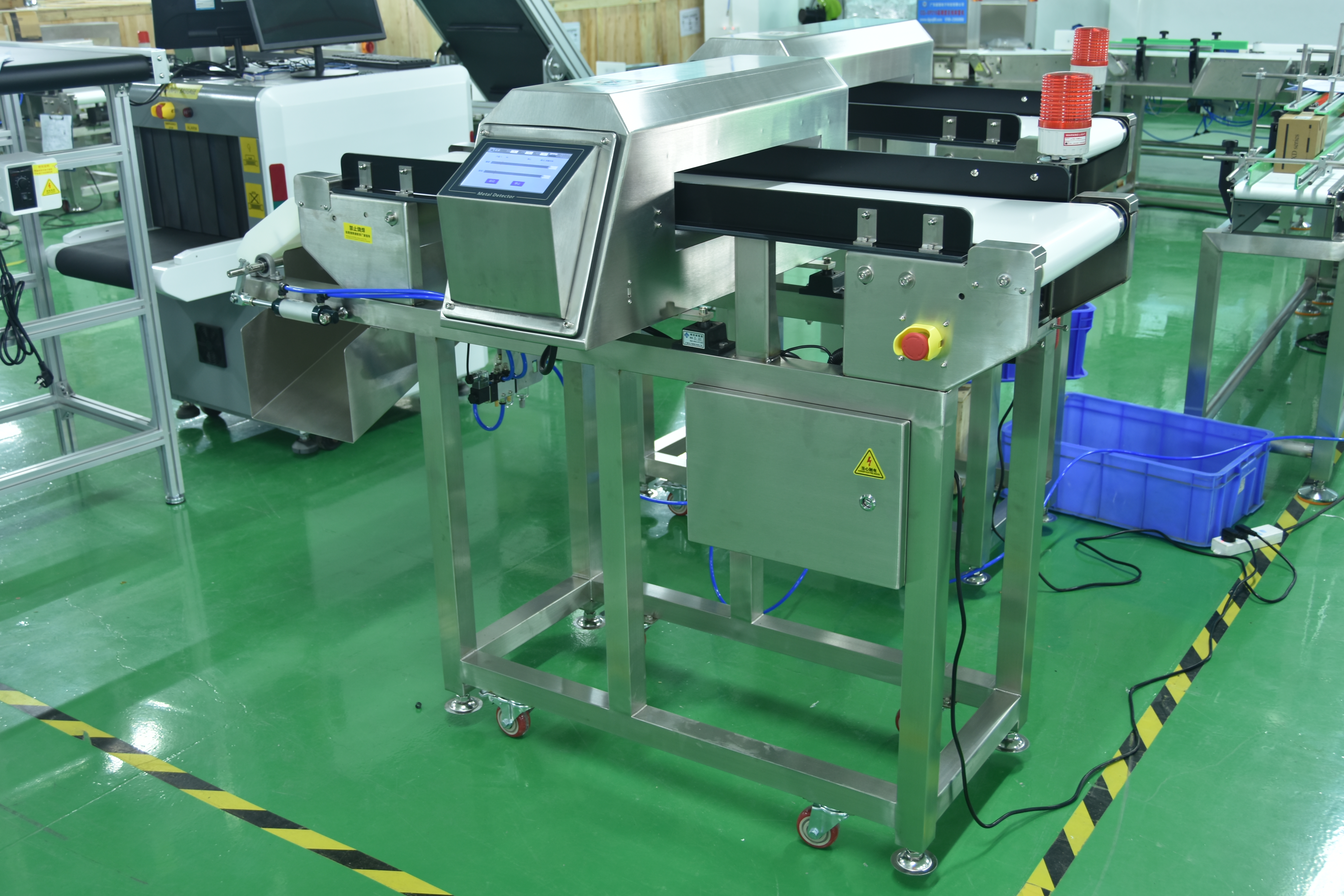

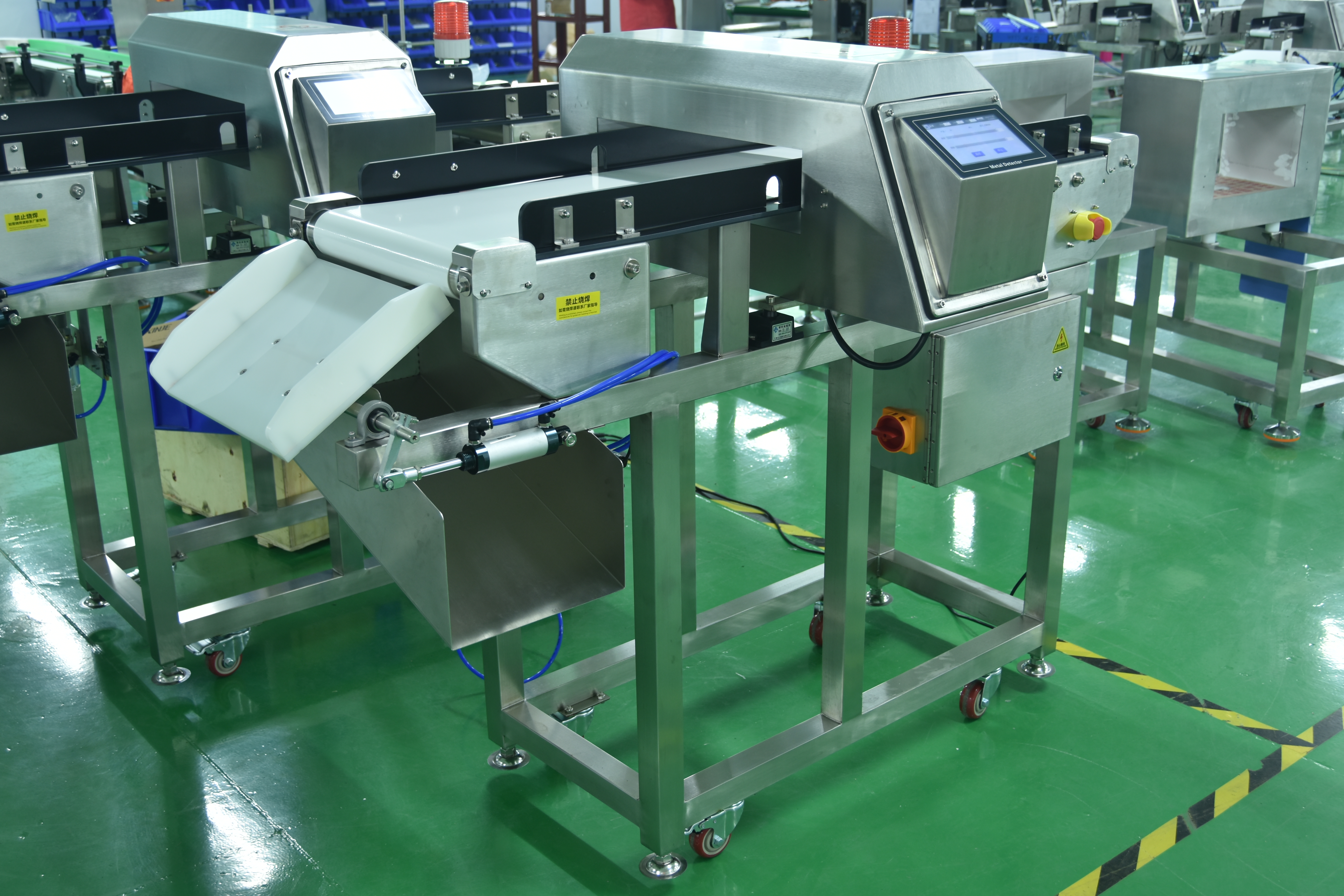

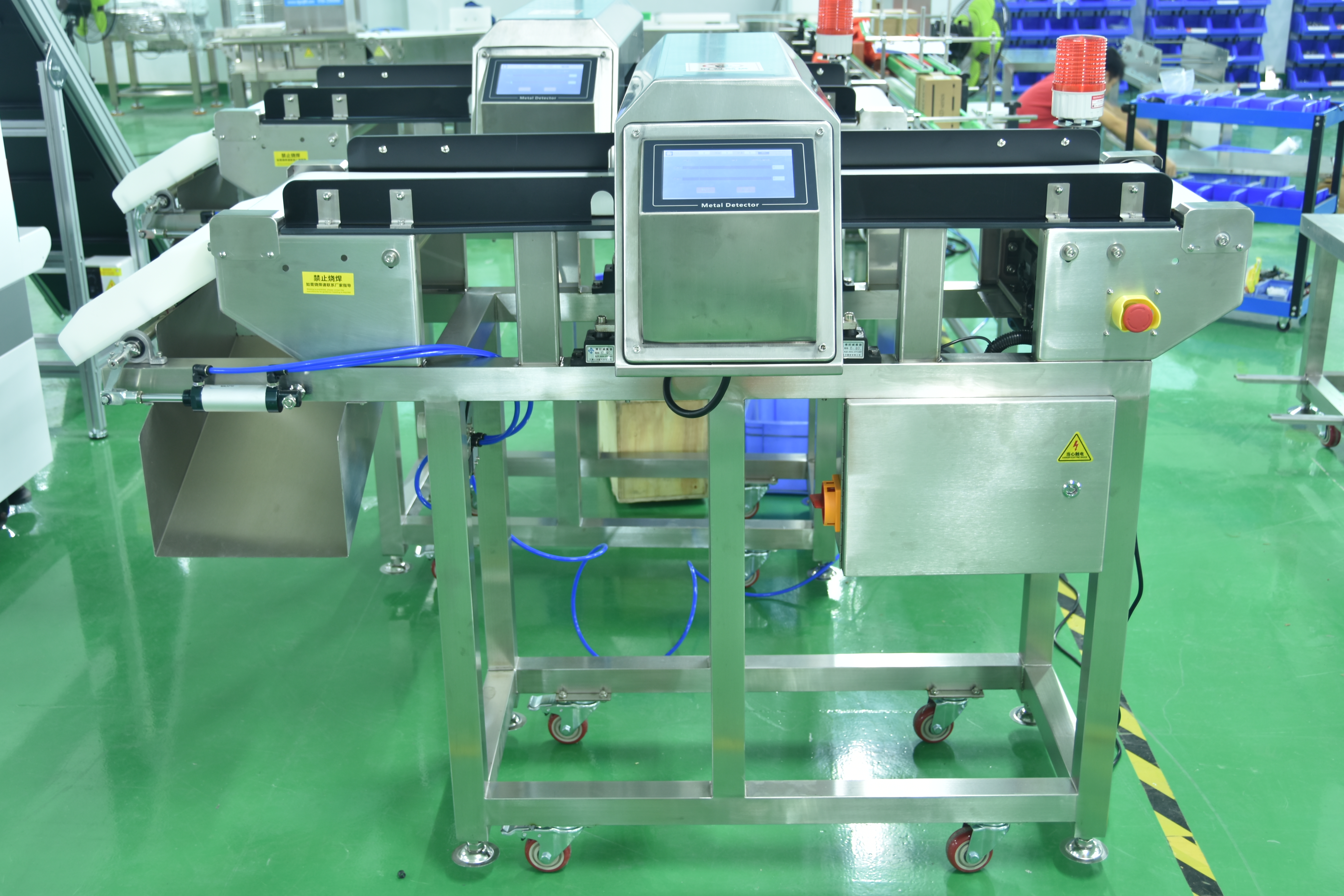

Multiple 910K units running side by side in food plants — stable performance under continuous duty.
100 batch reports stored on-device — meet audit and quality traceability requirements.
Meet the Chaoqiang team at exhibitions worldwide — and bring your samples to test on the machine live.
Tell us your product, belt width and tunnel height — we will configure the 910K to your exact spec.
