Two Segment Check Weigher Machine Belt Conveyor Sorting High Speed High Accuracy for Small Packaging Made in China



2.Parameters
Independent research and development: weighing controller;
Zemic / Toledo high-precision load cell

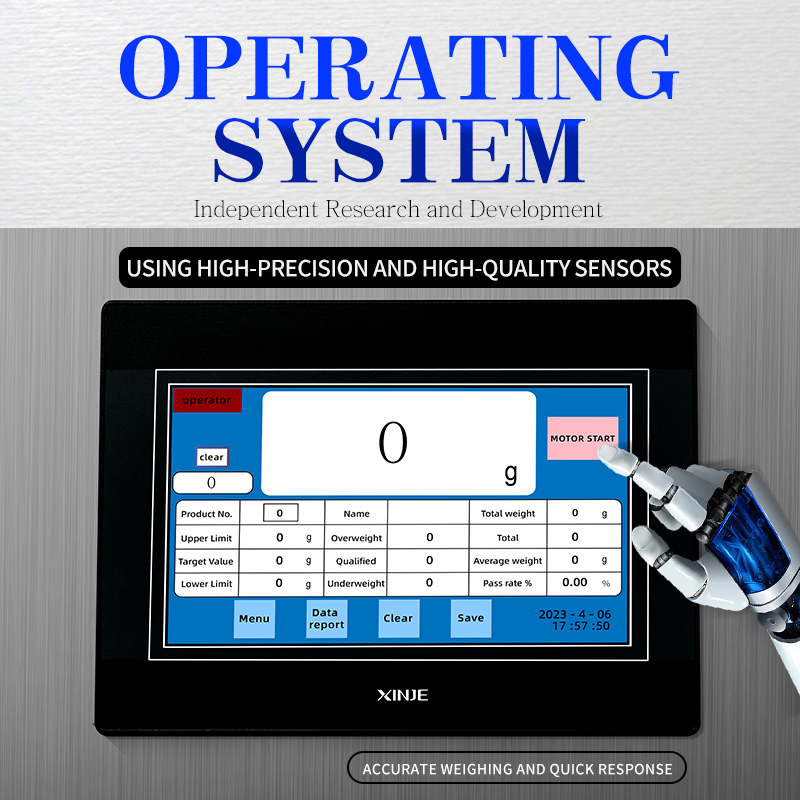

Display screen: 7-inch OLED high-brightness Chinese touch screen;
Motor: stepper motor, power 100W;
Frame material: stainless steel;
Transmission belt: belt material PU;
Maximum weighing：200g；
Display accuracy　±0.1g；
Accuracy：±0.2-0.3g（Can identify single weight 0.3g and above materials）
Speed：50-60pcs/min
Weighing conveyor belt : 220mm*160mm（Wheelbase/bandwidth）；
Feeding port height : 420±30mm；
Weighing table height: 230±30mm；
Industrial embedded computers and real-time operating systems;
2 weight zones: qualified and unqualified (multi-zone sorting function option requires external structure and independent configuration);
100 sets of product formula data storage methods;
Product statistics display, recording and query;
3-level password protection, more comprehensive protection of the safe operation of the device;
The electrical protection level of the whole machine is IP54;
Power supply voltage 220VAC, 50HZ;
Operating environment: To ensure the best accuracy, the installation location of the checkweigher should be away from vibration sources and air outlets, and the temperature should be -10~40℃;

Note: Weighing accuracy refers to level 3 accuracy under specific conditions (directly related to the on-site environment, such as vibration, interference, etc.)
