CQ-818
Chaoqiang
8543709100
3.Appearance design patent certificate
11.Complete certificates, including inspection certificate, instruction manual, factory video, etc.
| Model Type. | CQ-818 | |||||||
| 4010 | 4012 | 4015 | 4020 | 4025 | 4030 | 4035 | ||
| Detection channel width (mm) | 400 | |||||||
| Detection channel height (mm) | Conventional machine | Non-standard custom inspection window height | ||||||
| 100 | 120 | 150 | 200 | 250 | 300 | 350 | ||
| Sensitivity | Fe ( ≥ ømm) | 0.7 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | 2.8 |
| Cu/Al ( ≥ ømm) | 1.3 | 1.5 | 1.8 | 2.0 | 2.5 | 2.8 | 3.7 | |
| stainless steel ( ≥ ømm) | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.3 | 4.3 | |
| The machine material | The whole machine is made by 304 stainless steel cold drawing process | |||||||

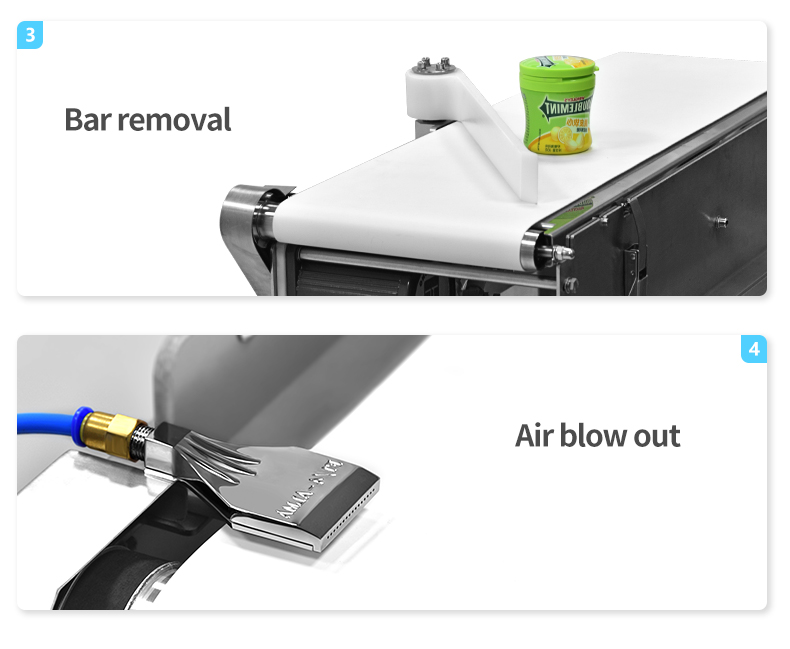

| Type of alarm | Automatically shut down and alarm when metal foreign body is detected, optional customized rejection device: flap, lever, push rod, air jet, etc. | |||||||
| Machine size | 1400x820x900 (LxWxH) Customized | |||||||
| Machine weight | about 200Kg | |||||||
| Power | 220V 50-60Hz 120w | |||||||
| Loading capacity | ≤10Kg speed:25~30m/min | |||||||
| Working desk | height 700mm ,Customized | |||||||
| 1.Conventional machines are available from stock, and the sensitivity parameter is the all-round test value of the empty machine. 3.The actual value is related to the test height of the machine and the product itself. | ||||||||
1. Standard wooden case.
2. Completely machine contain:Machine and product Manual
3. Machine come into use, customer only need prepare power for the machine.
4. It has been debugged and attached the test card before shipment, and the test video will be provide
FAQ:
1.Q: Are you a manufacturer or a trading company?
Answer: We are a manufacturer. We have our own factory in China, integrating R&D, production and sales.
2.Q: How to confirm that the machine is suitable for us?
Answer: As long as you tell us the type of food you need to check and the required specifications, our professional team will give you the best advice.
3: Q:Can you provide us with special designs and configurations?
A: Customized production is available, and special production can be carried out according to customer drawings.
4.Q: How is the quality of your products?
A: Our products are suitable for ISO, ASTM, GB, etc. Our QC team will test the machine for three days before shipment.
5.Q: What is the delivery date of your products?
A: Standard size products within 5 working days, customized products within 15 working days.
6.Q: What are your payment terms?
Answer: T/T 30% as a deposit, 70% before delivery. Before you pay the balance, we will show you the photos of the product and packaging
7.Q: How about your product warranty?
A: The one-year warranty. We will provide you with lifetime technical support.
8.Q: How about your after-sales service?
Answer: Reply to email within 1 hour for machine problems, and provide machine troubleshooting solutions within 4 hours. Quickly and promptly contact technical support through the real-time chat tool group. (Whatsapp, Viber, WeChat, etc.) Once the problem caused by the part is confirmed, the part will be delivered by express delivery as soon as possible.
