CQ-XY700 3015
CHAO QIANG
A compact X-ray inspection system built for snack and packaged food lines. The CQ-YW700 inspects bagged, boxed and bulk products for iron, stainless steel, ceramics, glass, stones, bones, shells, hard rubber and hard plastics — then ejects rejects automatically without stopping your line.
In snacks, mooncakes, coffee, nuts and rice crackers, contaminants hide inside the packaging — invisible to operators, undetectable by metal detectors in foil packs, and catastrophic if one reaches a consumer.
Stones, glass, bone and shell fragments hide inside bagged and boxed snacks — impossible to spot by eye.
Aluminum foil and metallized snack bags defeat conventional metal detectors — only X-ray sees through.
Manual sorting on fast snack lines is slow, inconsistent and drains labor budget shift after shift.
One complaint can trigger a costly recall and long-term damage — and you have no scan record to defend it.
The CQ-YW700 scans every product with X-rays, compares internal density images against your quality standard in real time, and commands the reject mechanism to remove any non-conforming item — continuously, at full line speed.
A small-footprint X-ray system that fits snack and packaged food lines — with the detection power of much larger machines.

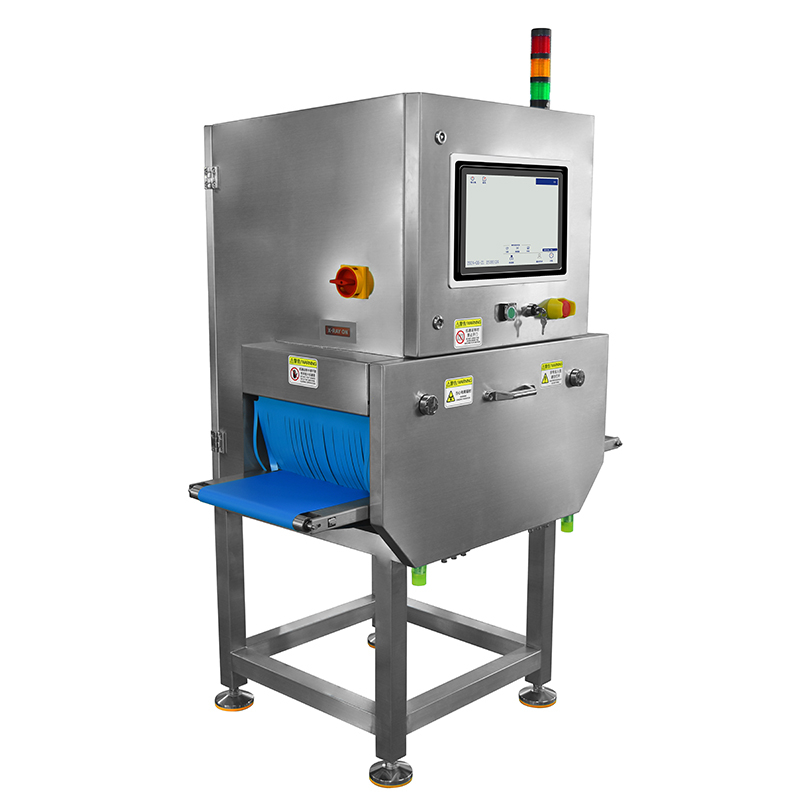

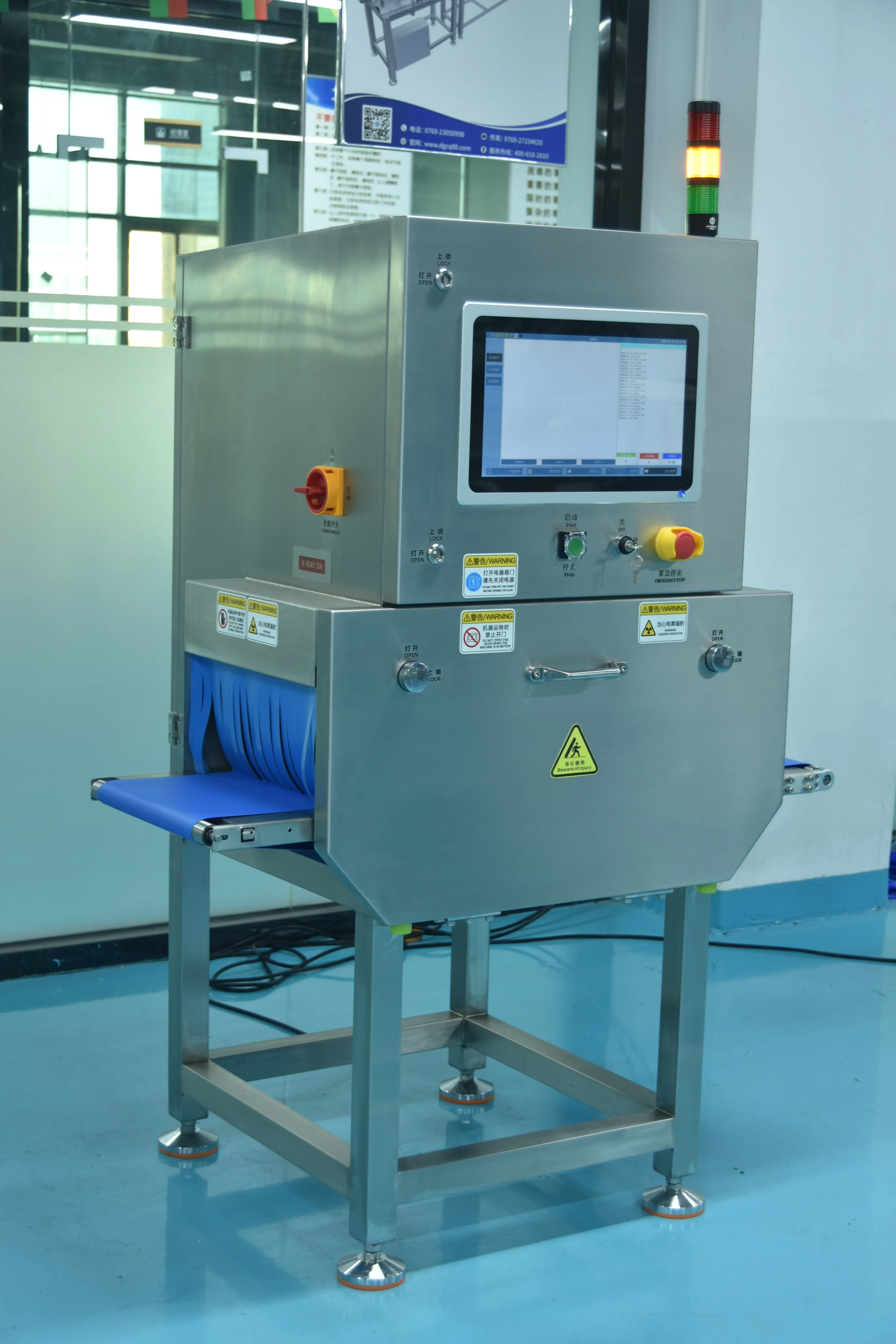

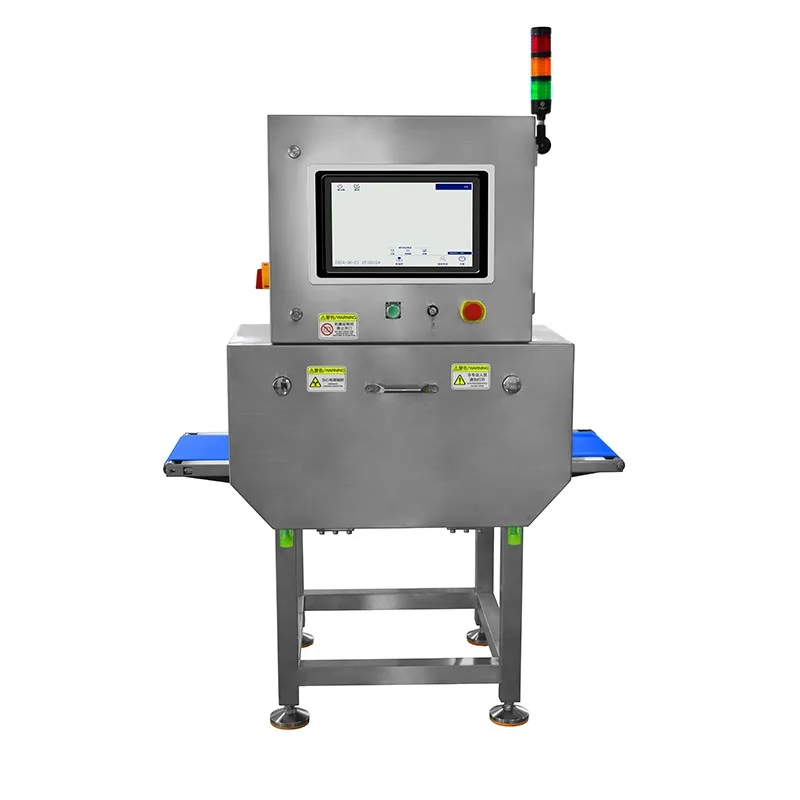

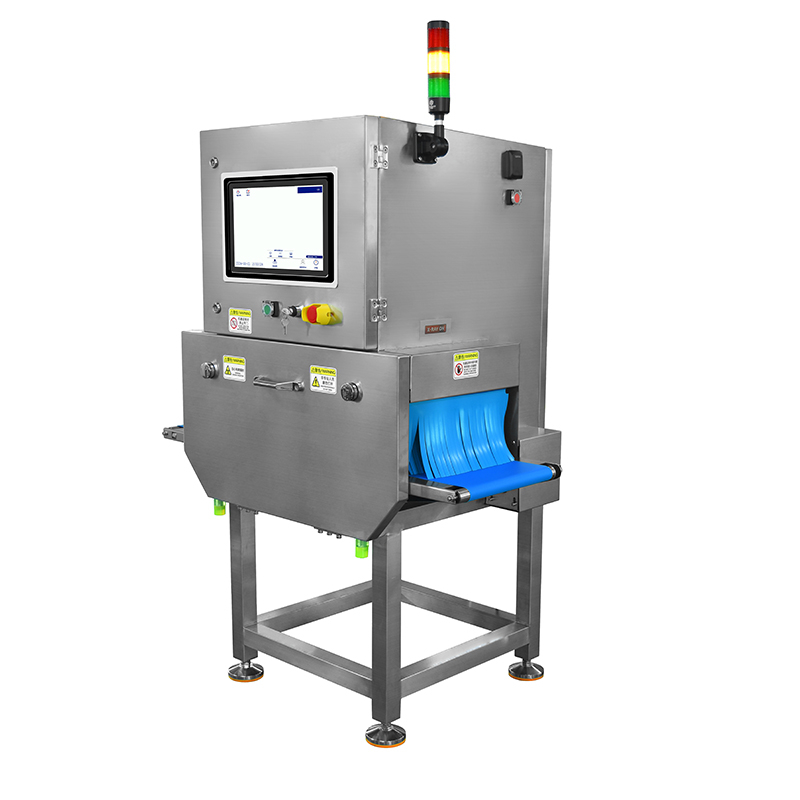

Integrated tunnel, conveyor, touchscreen and rejection in one machine — a 1100 mm footprint that drops into existing lines.

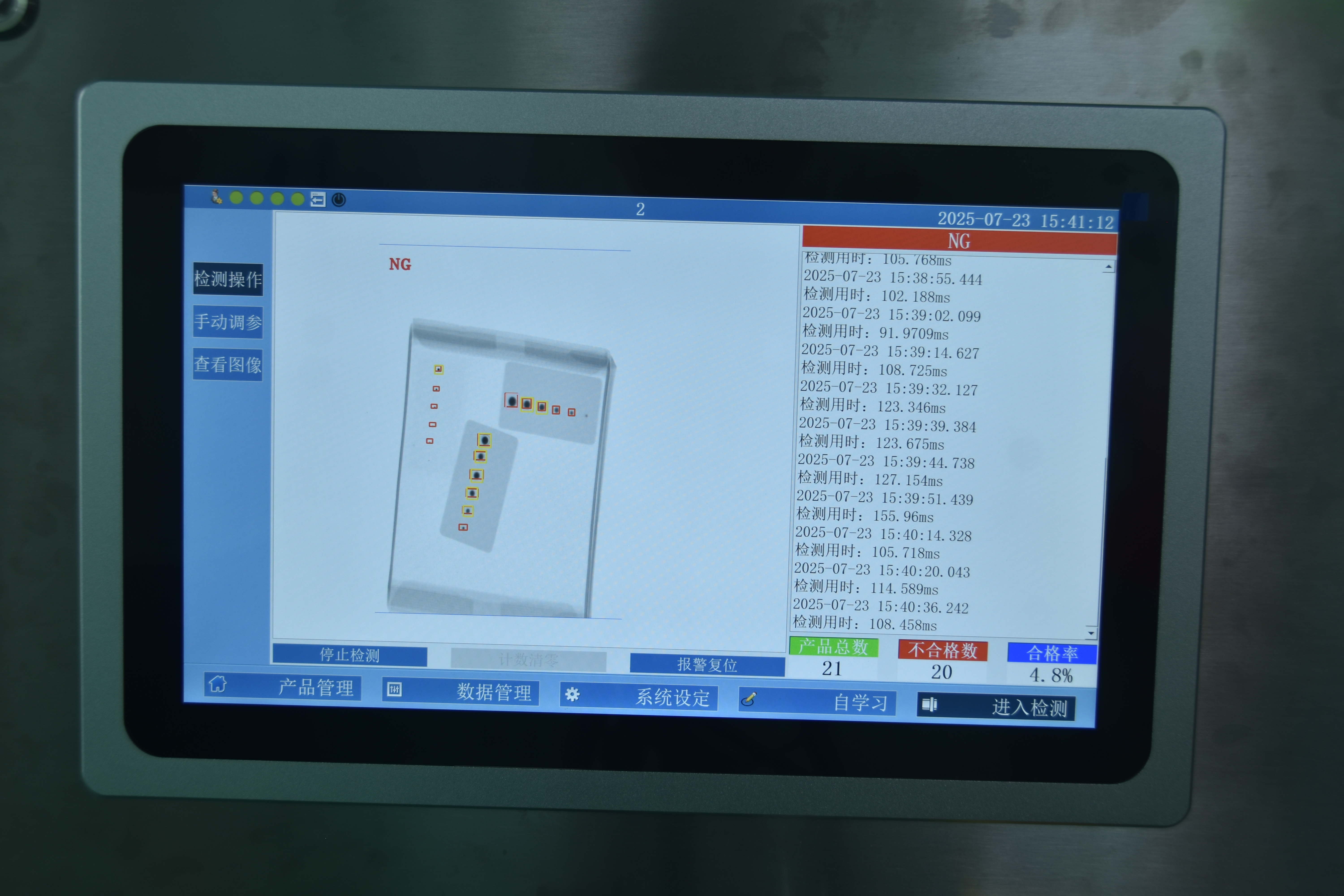

Live inspection view, NG image log and run statistics — total products, rejects and yield at a glance.

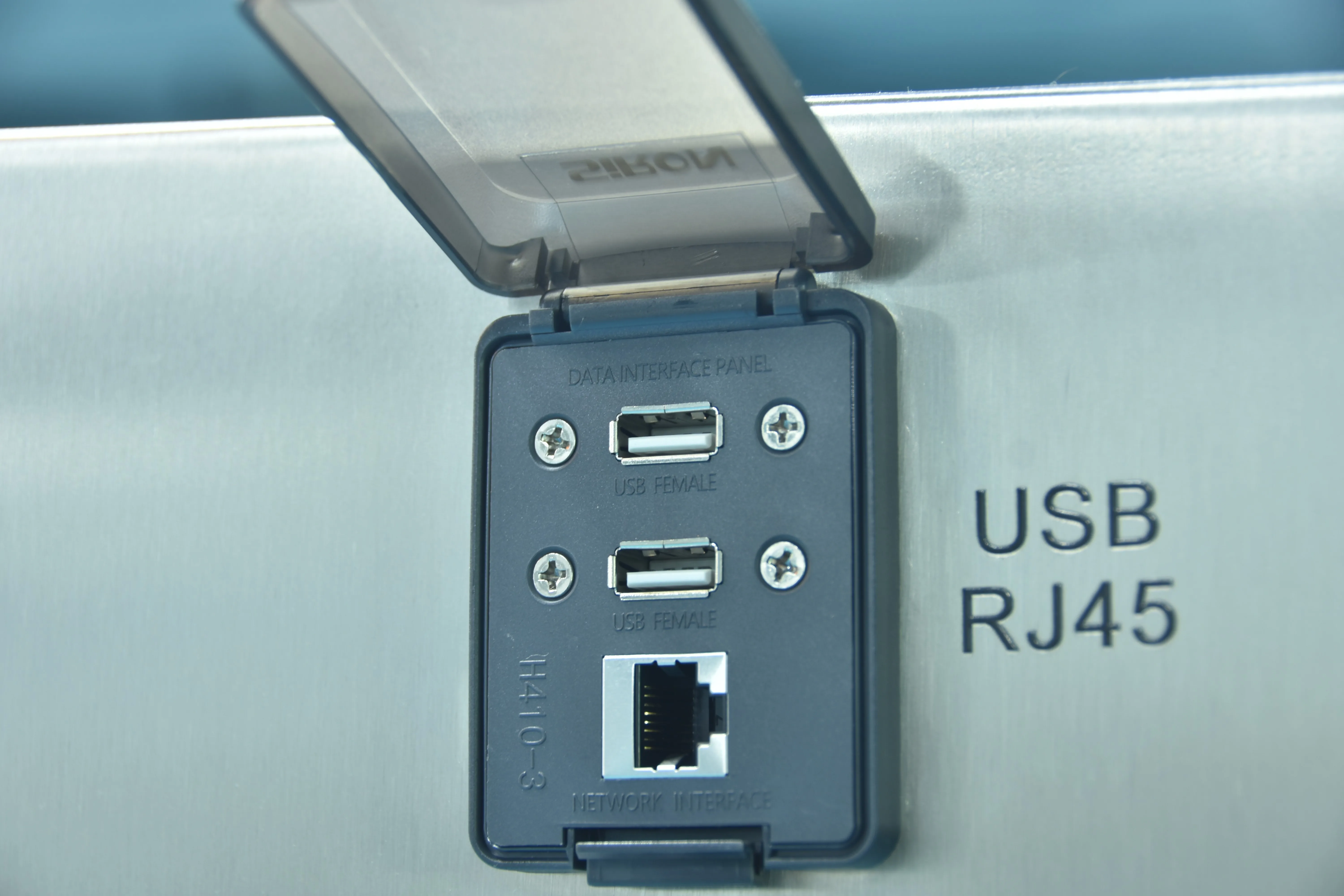

Dual USB ports and an RJ45 network port for data export, remote support and production-line integration.

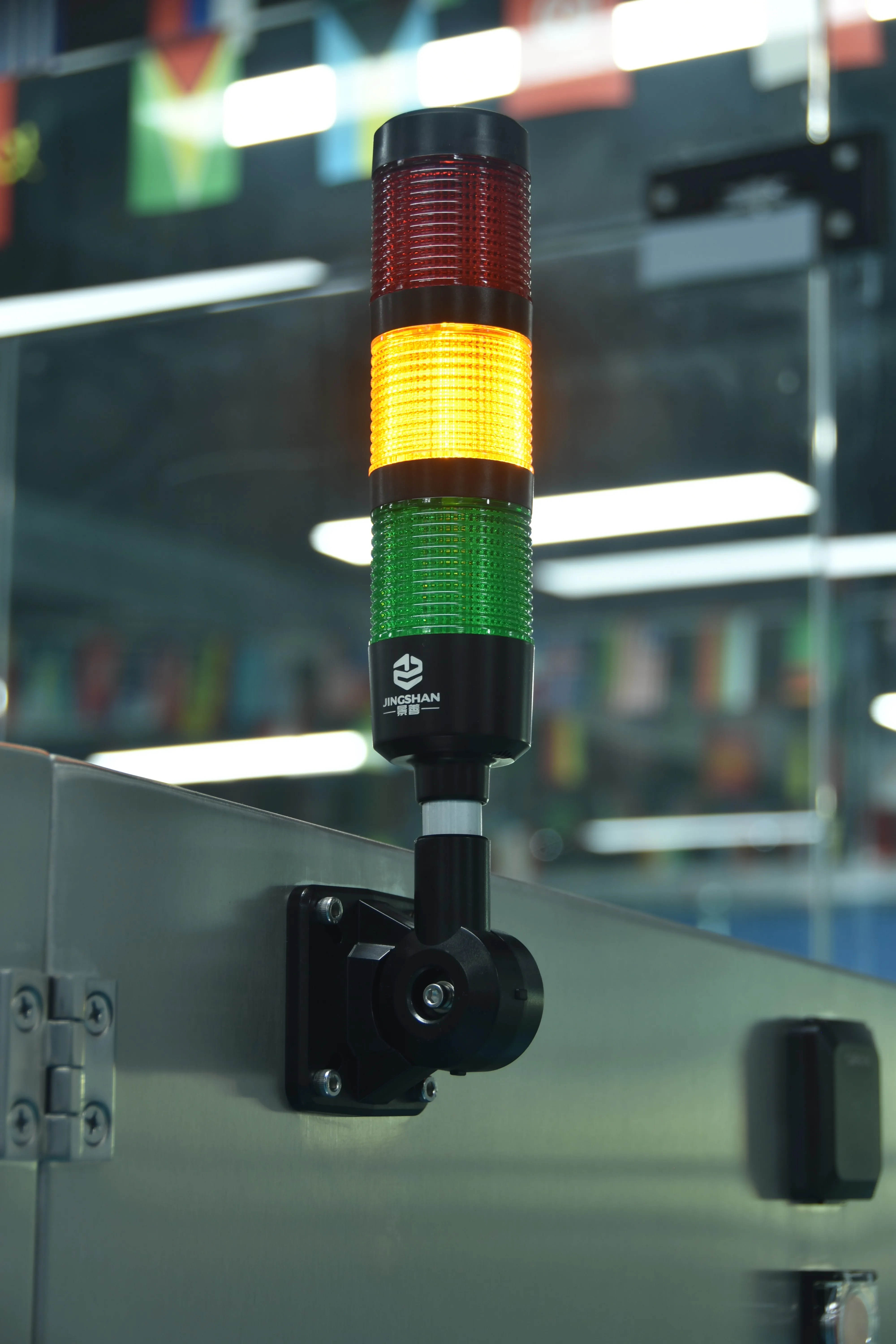

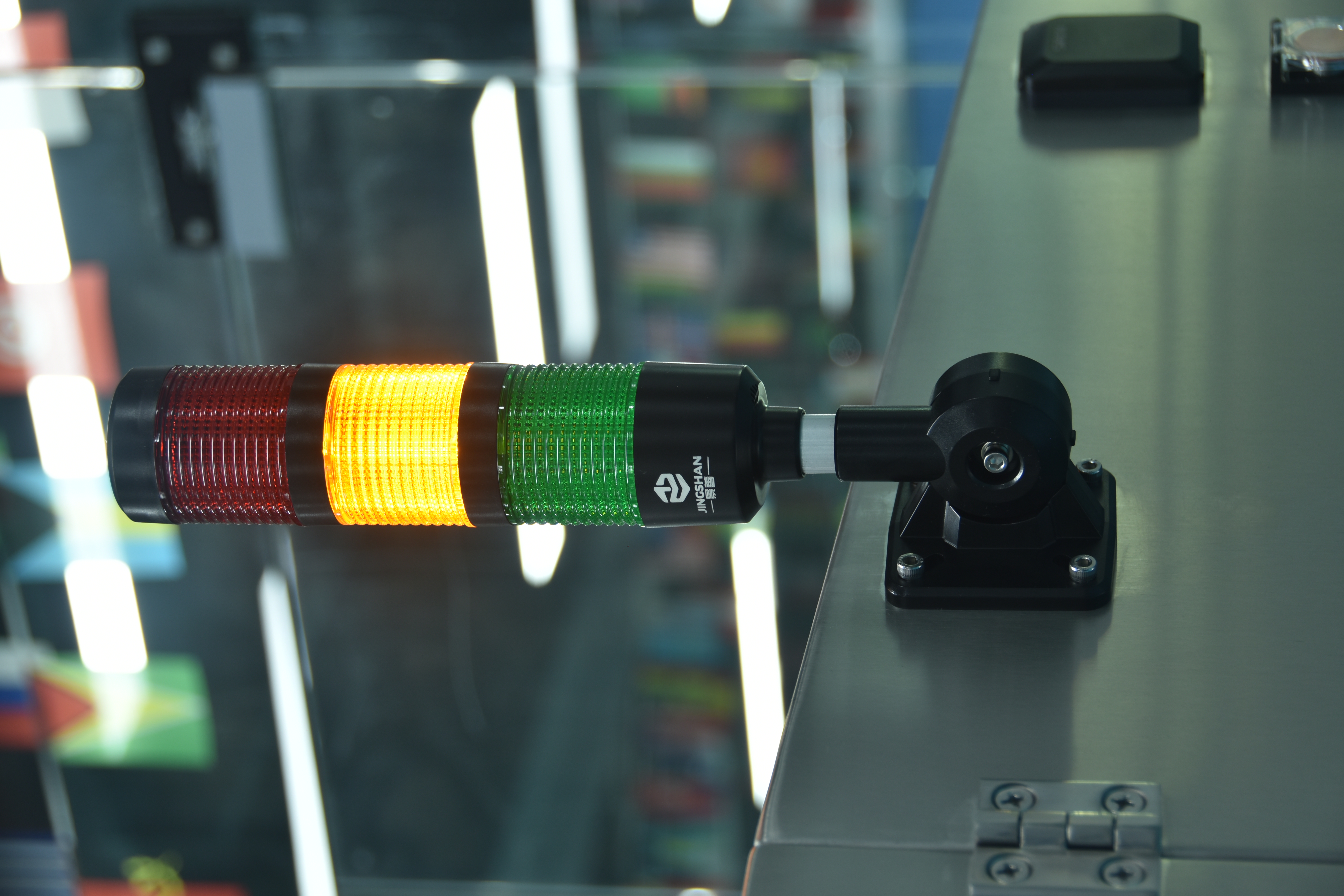

Three-color tower light and audible alarm give instant status — operators know the line state at a glance.

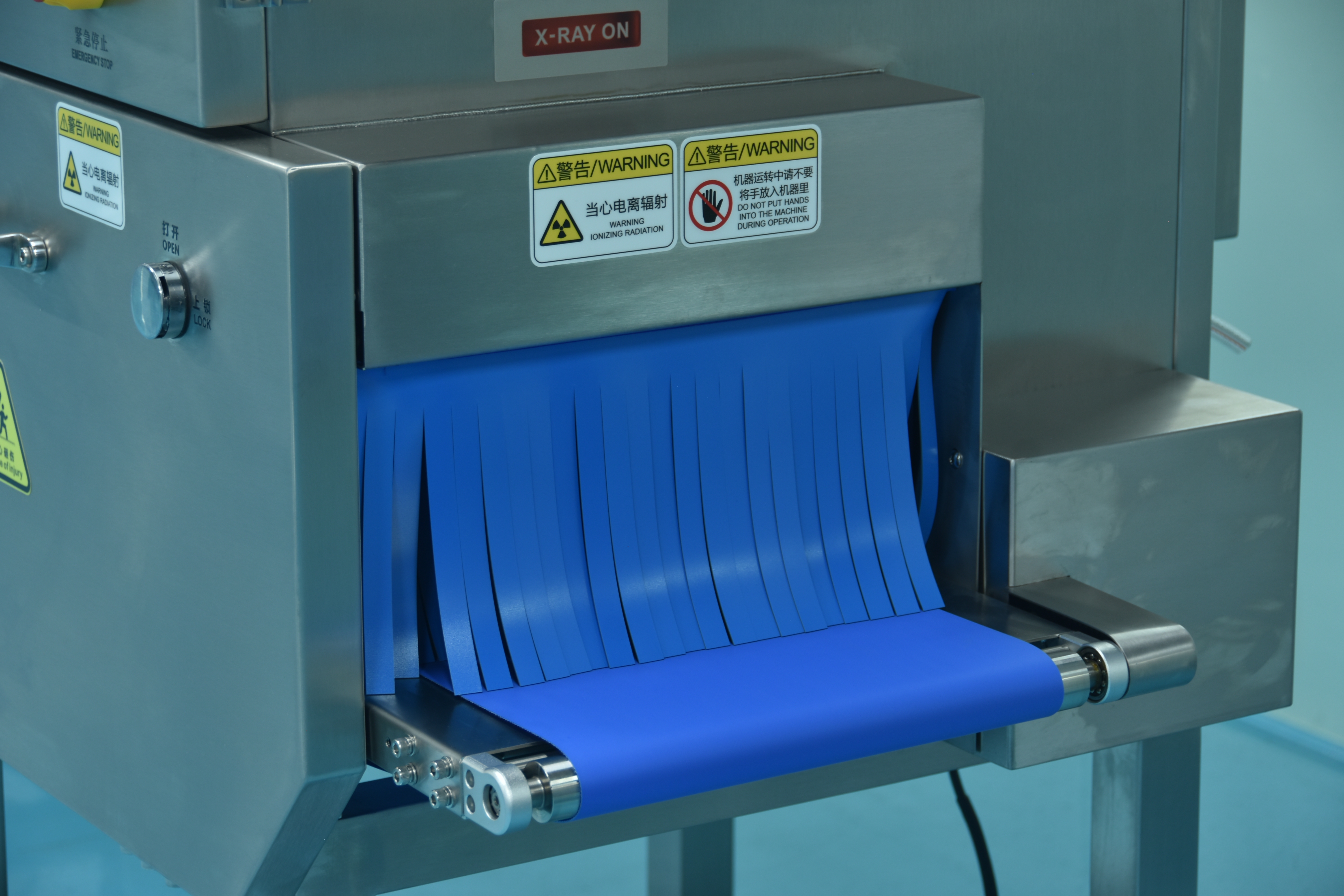

300×150 mm tunnel, engineered for bagged, boxed and bulk products up to 5 kg.
| Parameter | Specification |
|---|---|
| Model | CQ-YW700 (3015) |
| X-Ray Source | 150W / 240W / 350W Optional |
| Belt Speed | 10 – 70 m/min |
| Tunnel Width | 300 mm |
| Tunnel Height | 150 mm |
| Max Product Size | ≤165(W) × 150(H) mm / ≤300(W) × 20(H) mm |
| Detection Accuracy | SUS304 ball φ0.6 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 1100 × 813.5 × 1476.5(+100) mm |
| Max Conveyor Load | 5 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Bagged · Boxed · Bulk |
| Rejection Method | NG Shutdown / Auto Removal — Pusher, Flap, Air Blow, Swing Arm optional |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
All values above are factory data from the official CQ-YW700 spec sheet. Need a wider tunnel? Ask about the CQ-YW800 (400×200 mm) series. lynn@chaoqiang1688.com
Every CQ-YW700 ships with factory-backed support — installation guidance, calibration and spare parts wherever your line is.
Field engineers respond to breakdowns, repairs, verification and calibration calls at your plant.
Maintenance plans built around your line schedule, maximizing uptime of your inspection equipment.
Operator and maintenance training that raises skill levels and daily inspection performance.
Stocked parts and machine-specific kits ready to ship, keeping downtime to a minimum.

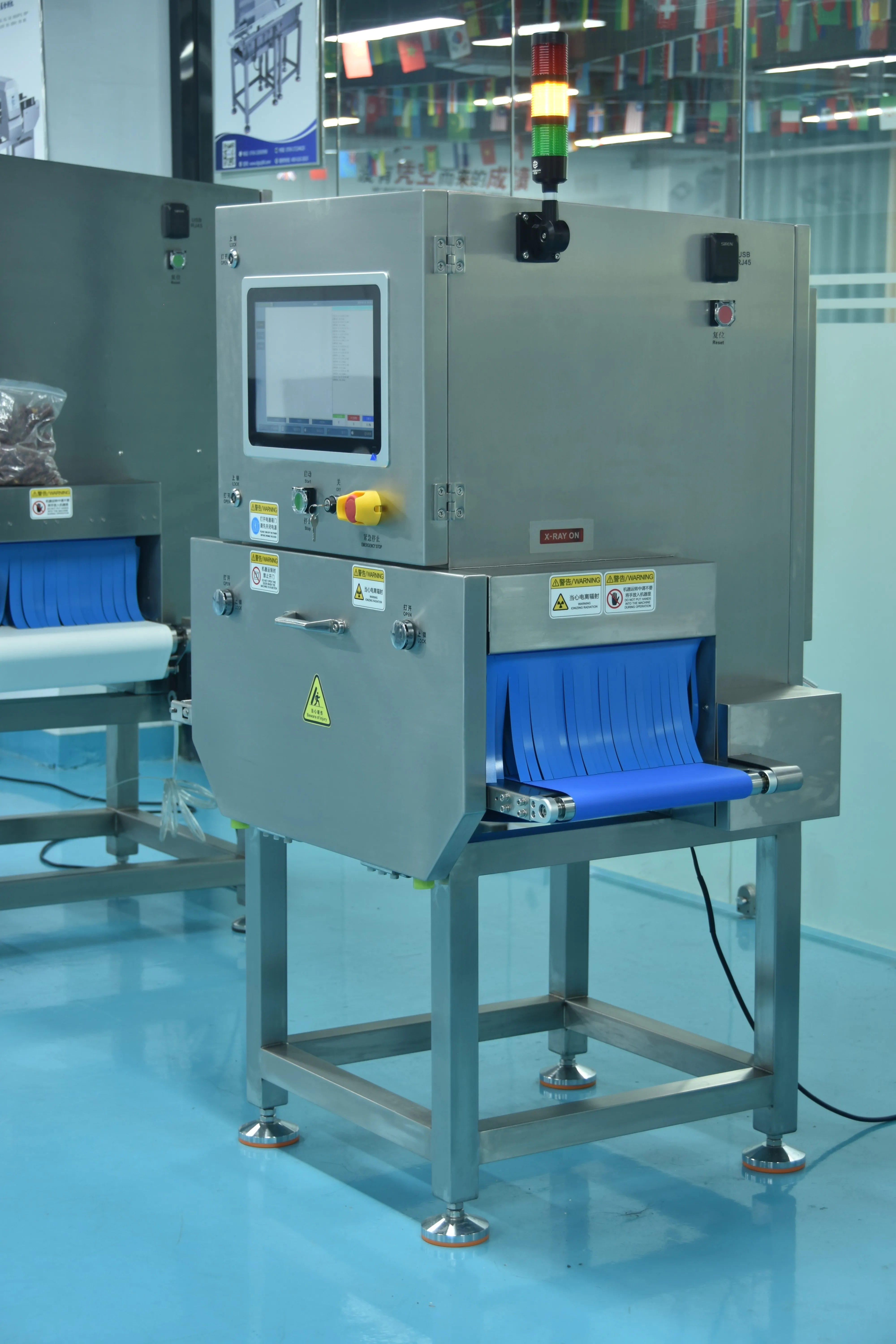

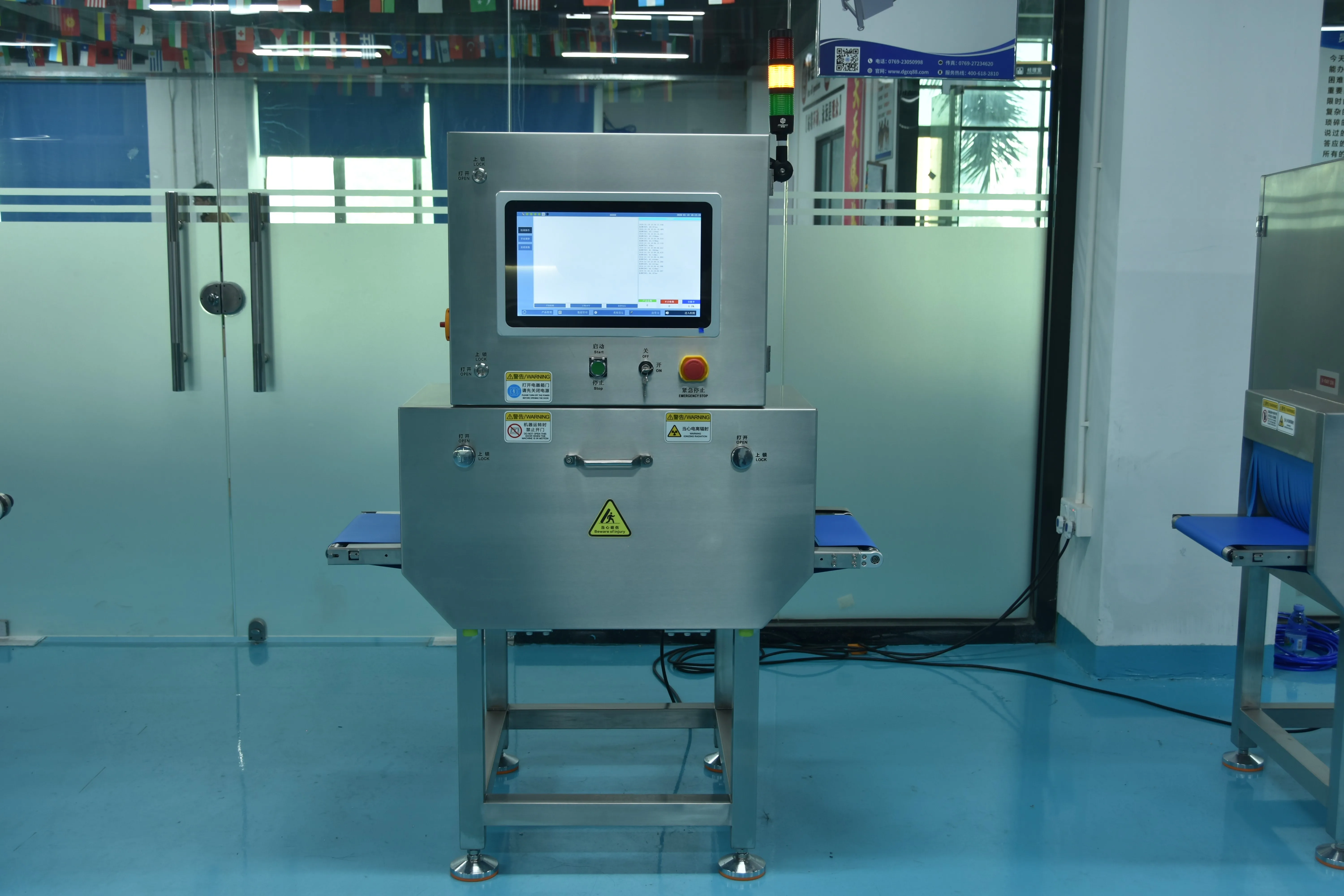

Guangdong Chaoqiang Electronic Technology Co., Ltd. designs and manufactures detection equipment in Dongguan — 18+ years of R&D, with the CQ-YW700 built and tested by the same engineers who developed it. Factory visits and line tests are welcome before you order.
Chaoqiang demonstrates real machines and real scans at food processing and packaging expos around the world — come test your own product on the show floor.
Send us your product samples and line speed — we will confirm detection capability and recommend the right reject mechanism for your packaging.
