CQ-XY900
CHAO QIANG

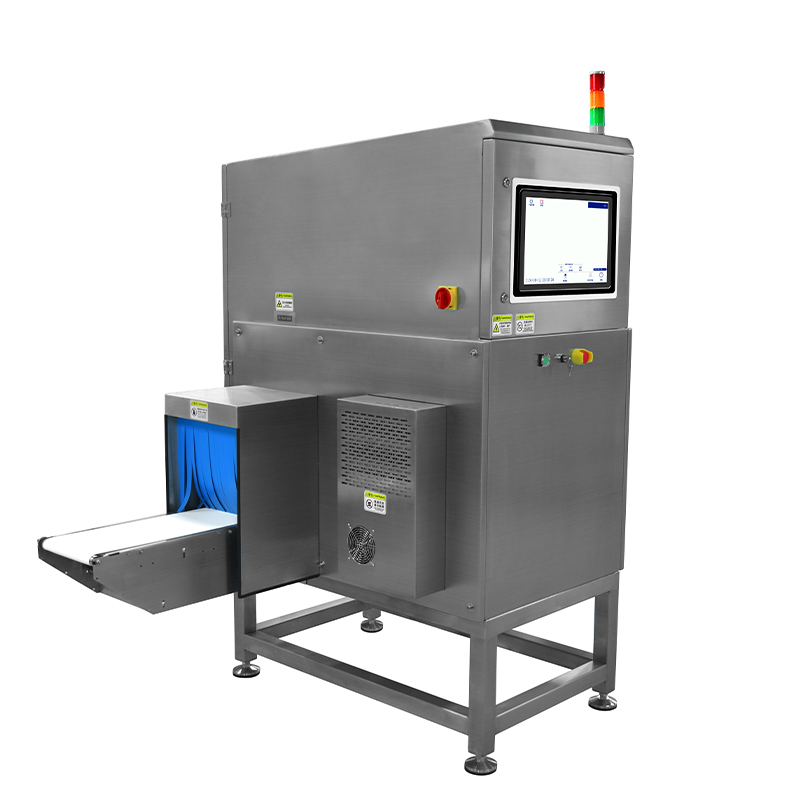

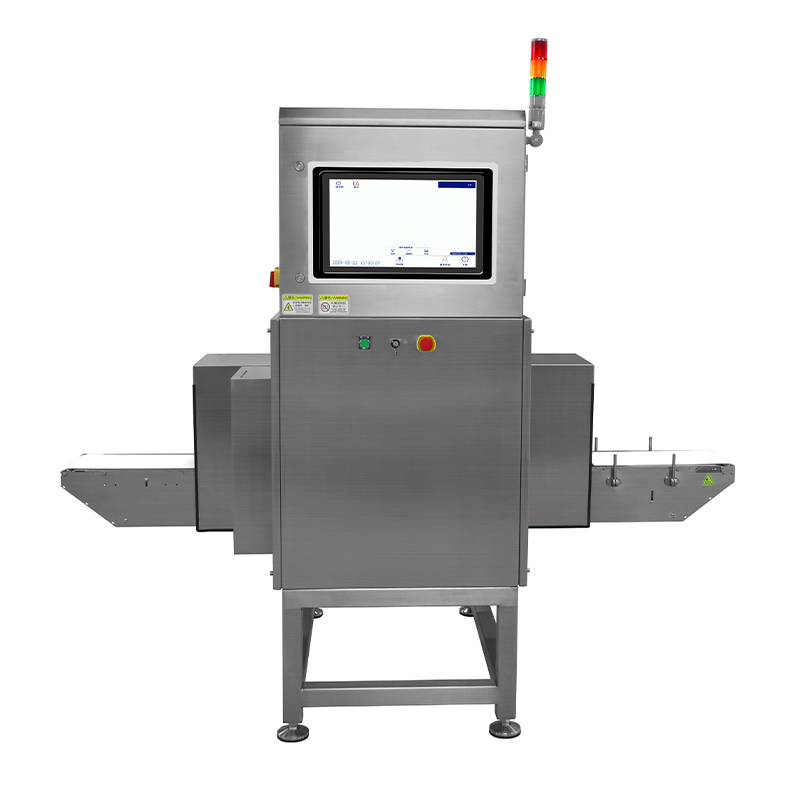

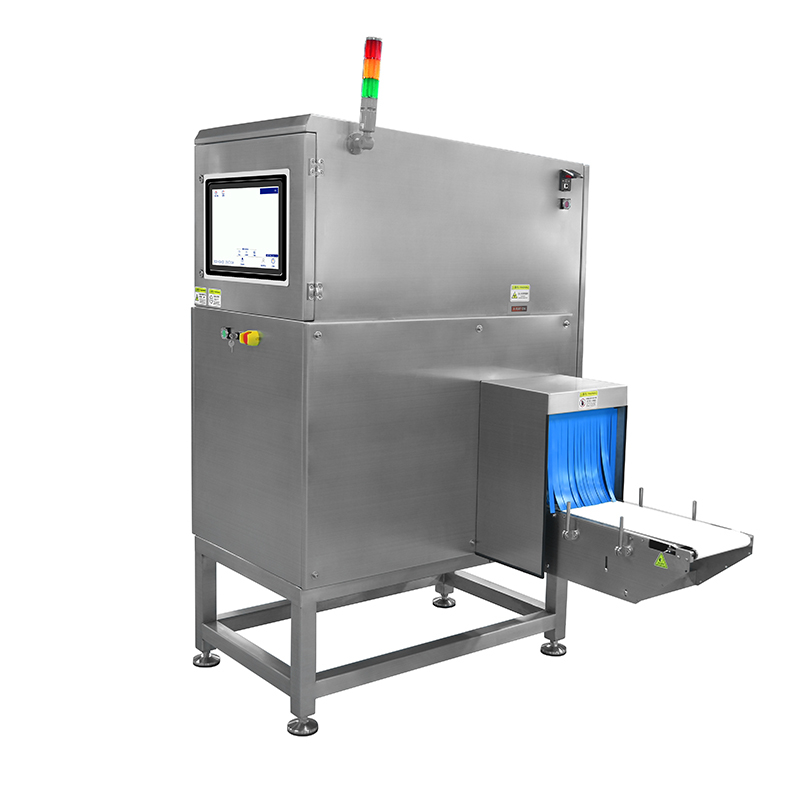

A 250×300 mm X-ray tunnel that sees inside sealed cans, glass jars and bottles — detects foreign bodies and verifies the liquid fill level in one pass, without opening a single pack.
Cans, jars and bottles arrive sealed — and whatever is inside stays invisible. Metal detectors miss glass, stone and bone, while under-filled packs slip through manual checks and reach the shelf short-measured.
Glass shards and stones inside dense canned product are invisible to metal detectors.
Under-filled cans and bottles trigger consumer claims and damage brand trust.
Opening samples to inspect destroys product and still misses most of the line.
Foil seals and metal cans confuse standard detection — X-ray sees through them.
X-rays pass through the sealed container, the detector builds a density image, and the software flags both foreign bodies and the liquid level — comparing every pack against your fill standard.
Foreign bodies and fill level in the same scan — built for upright cans, jars and bottles on fast packaging lines.
Compact opening sized for upright cans, jars and bottles on standard beverage lines.

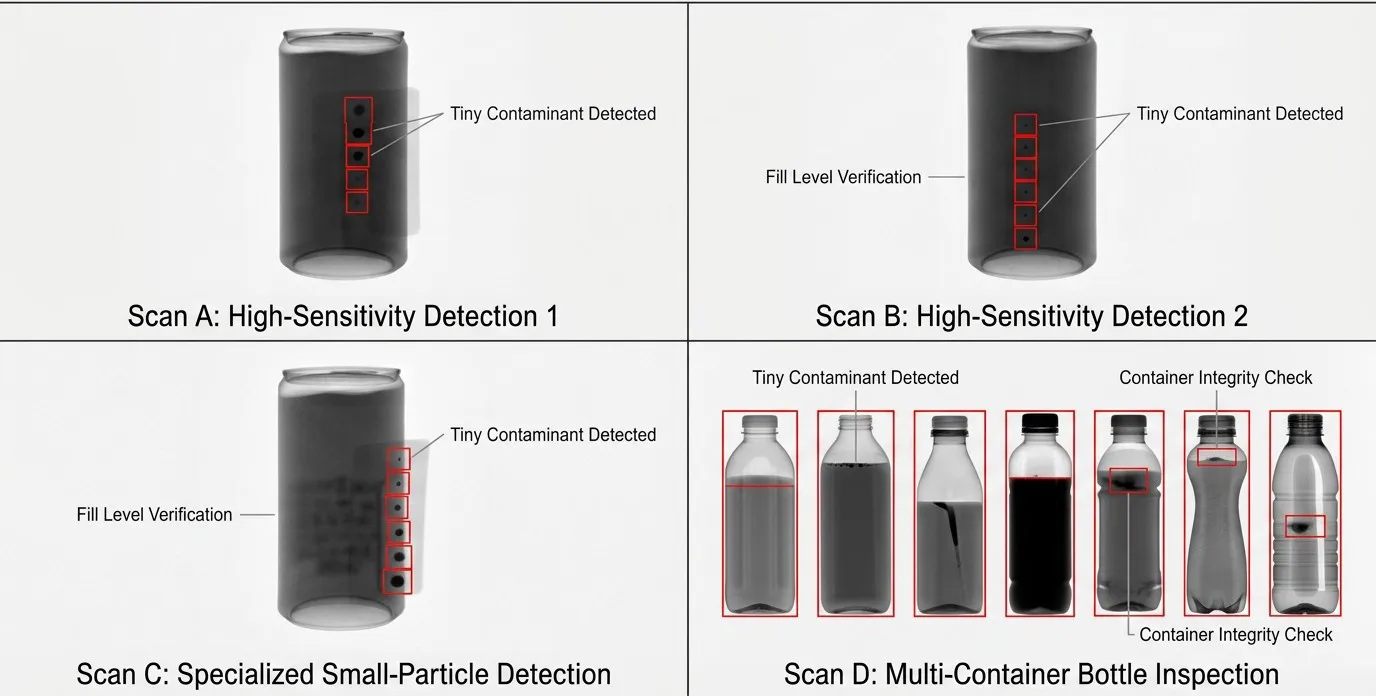

Scan evidence verifies fill level and spots tiny contaminants inside every sealed container.

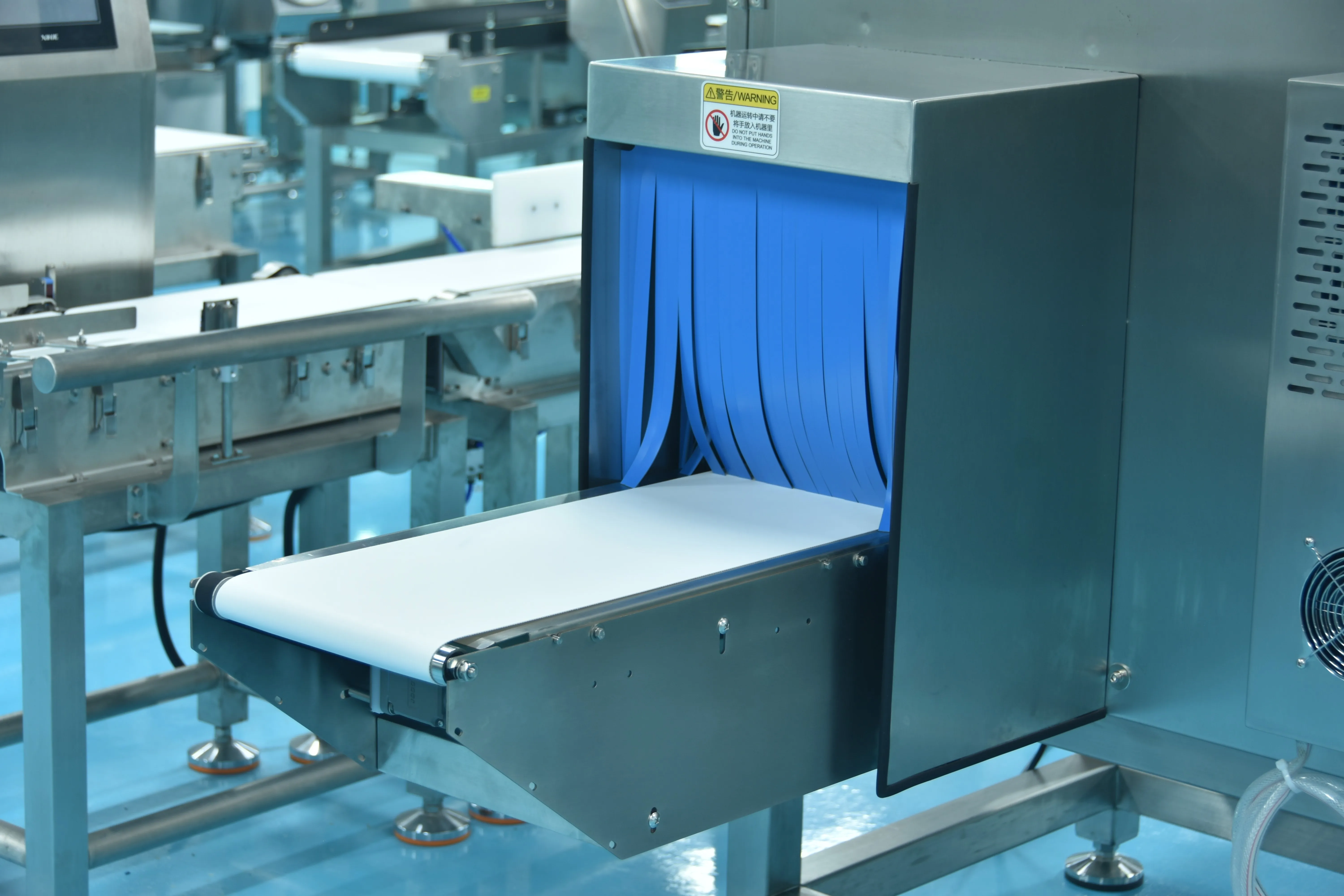

100% of the line is checked without opening packs — shielded tunnel keeps operators safe.

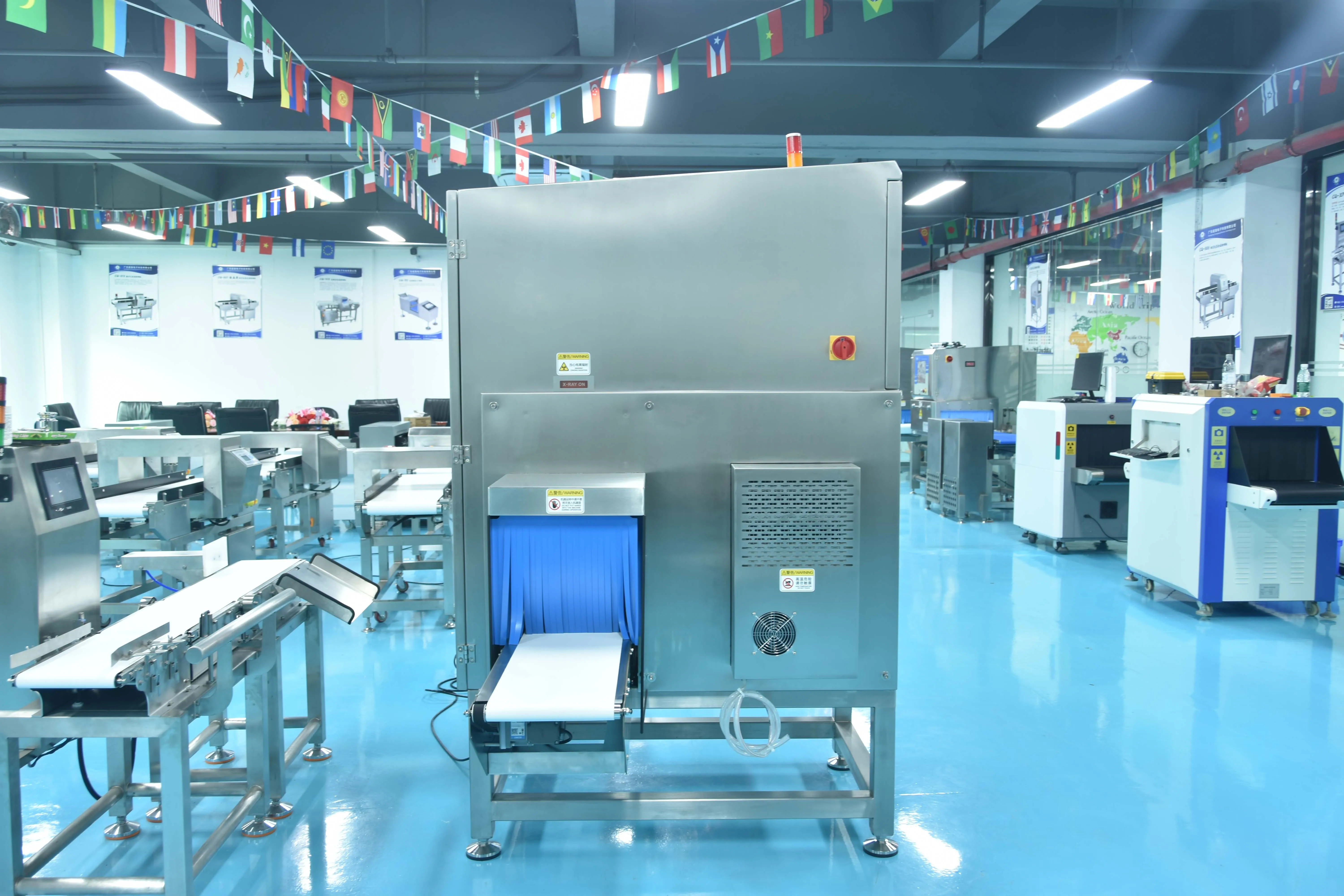

Rejects are pushed off the line automatically — production never stops for a bad can.
250×300 mm tunnel with 150–350 W selectable source, 5 kg load capacity and pusher exclusion.
| Parameter | Specification |
|---|---|
| Model | CQ-YW900 (Canned & Bottled) |
| X-Ray Source | 150W / 240W / 350W Selectable |
| Belt Speed | 10 – 70 m/min |
| Tunnel Width | 250 mm |
| Tunnel Height | 300 mm |
| Max Product Size | ≤250(W) × 300(H) mm |
| Detection Accuracy | SUS304 ball φ0.6 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 2480 × 1219 × 1794(+100) mm |
| Max Conveyor Load | 5 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Canned · Bottled |
| Rejection Method | Pusher Exclusion |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
Values follow the official CQ-YW900 factory spec sheet. Need a taller tunnel or a different reject device? Ask about the full CQ-YW series. lynn@chaoqiang1688.com
Foreign-object detection plus liquid level verification across upright sealed containers — iron, stainless steel, ceramics, glass, stones, bones, shells, hard rubber and hard plastics.
Chaoqiang backs every canned-and-bottled system with factory-trained engineers and genuine parts.
Engineers install, align and calibrate your CQ-YW900 line on site.
Scheduled maintenance keeps fill-verification accuracy sharp shift after shift.
Operator sessions cover fill-level setup, reject tuning and daily verification.
Genuine pusher units, belts and X-ray spares dispatched fast to minimize downtime.
Guangdong Chaoqiang Electronic Technology Co., Ltd. designs and builds the CQ-YW900 in Dongguan — 18+ years of detection R&D. Every unit is run-tested with your product samples before delivery.
Meet the Chaoqiang team at exhibitions worldwide — and bring samples to test on the machine live.
Send us your cans, jars or bottles — our engineers will confirm detection and fill-level performance with your own samples.
