CQ-XY800 4020
CHAO QIANG

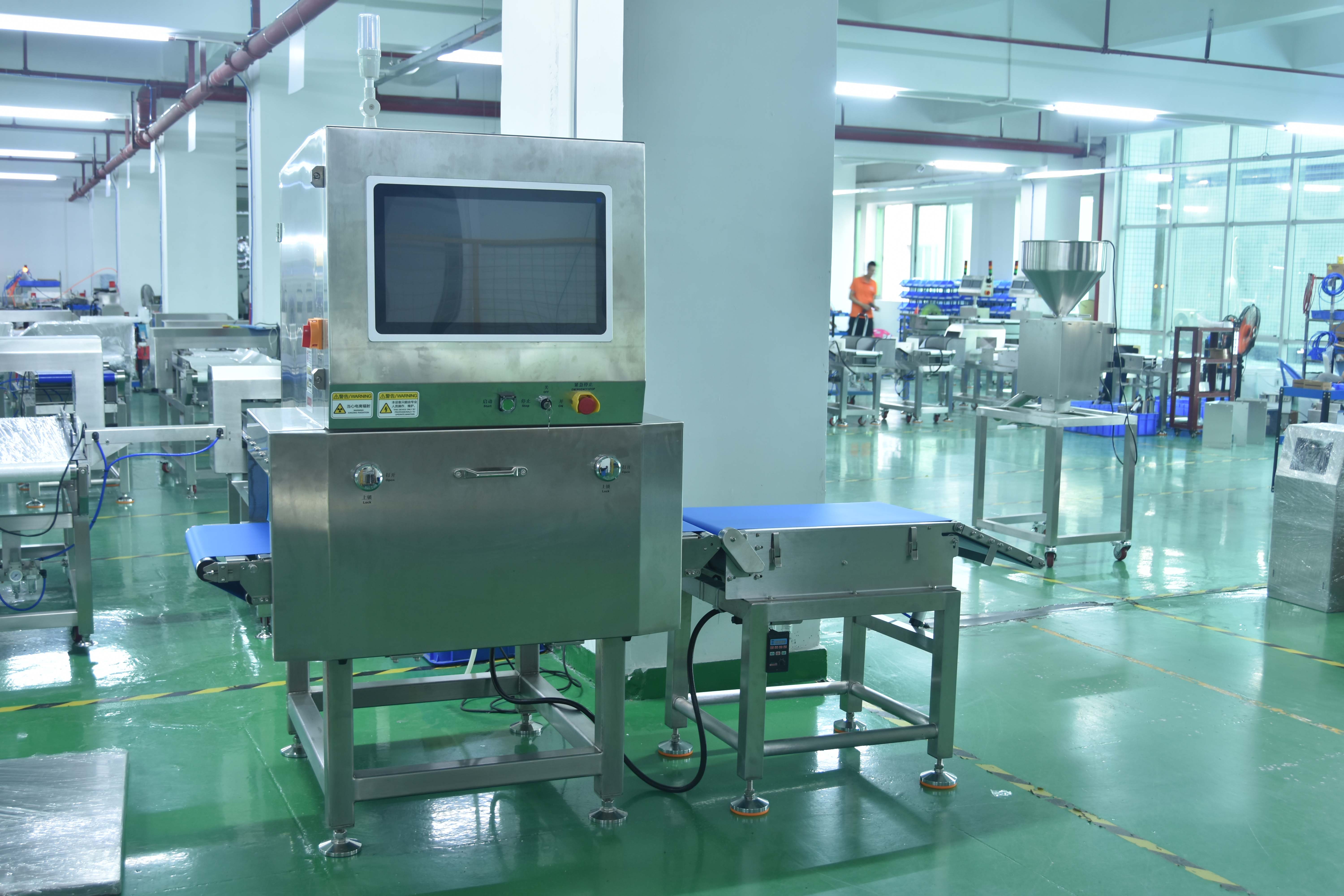

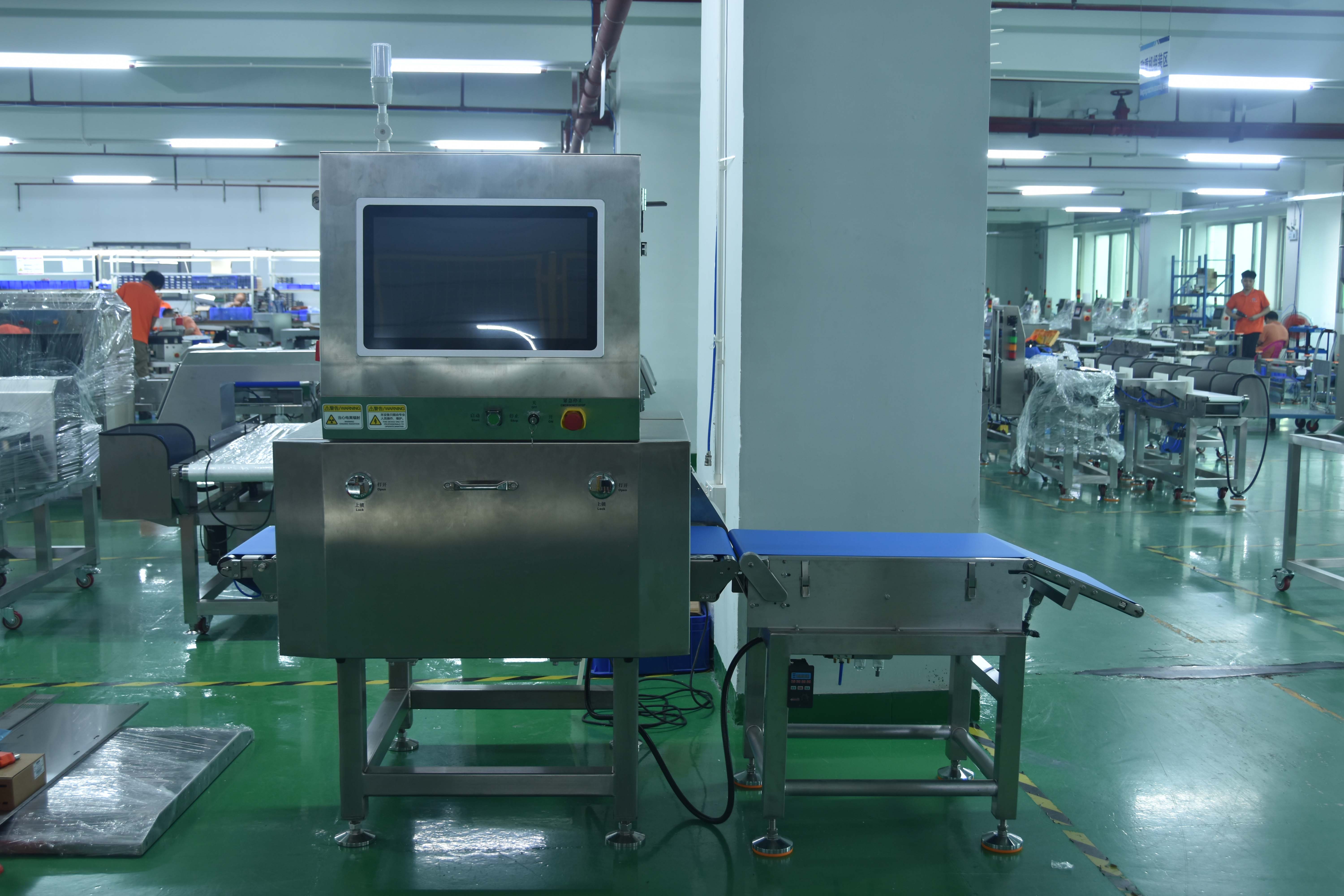

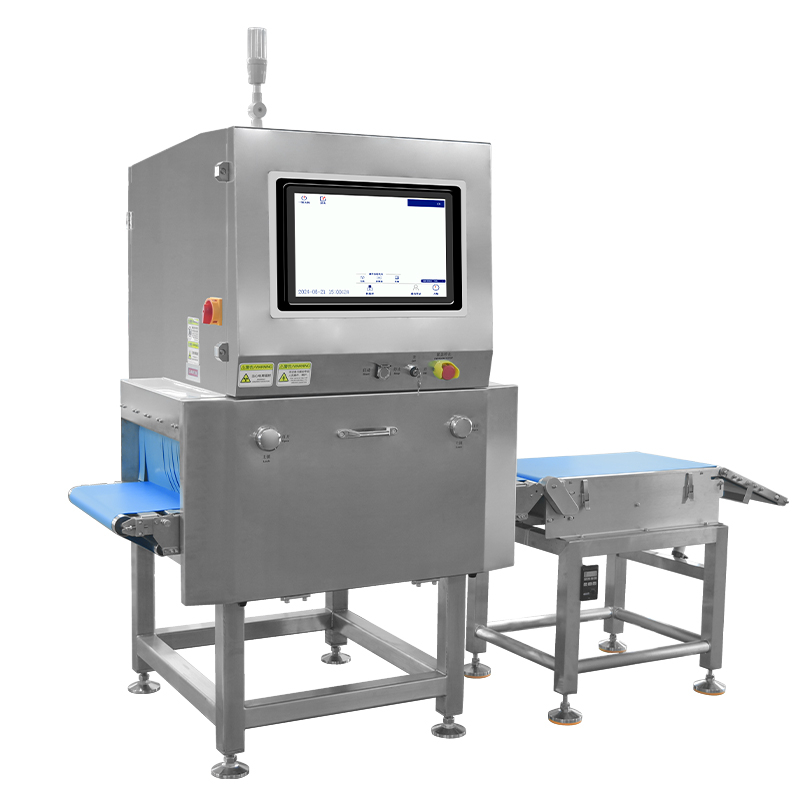

A 400×200 mm X-ray system with a split-type conveyor and pneumatic sinking reject at the exit — inspects boxed, bagged and bulk products for iron, stainless steel, ceramics, glass, stones, bones, shells, hard rubber and hard plastics, then sinks rejects off the line automatically.
Powders, sausages, sauces and other packed products hide contaminants inside their packaging. The split-type CQ-YW800 catches what operators and metal detectors miss — and sinks it off the line automatically.
Metal, glass, stone and bone fragments hide inside powder bags, vacuum packs and pouches.
Foil pouches and dense packaging block conventional detectors — X-ray sees through them.
Manual removal at 70 m/min is unreliable and costly — automatic rejection is the only answer.
No scan log means no evidence — one complaint becomes an expensive dispute or recall.

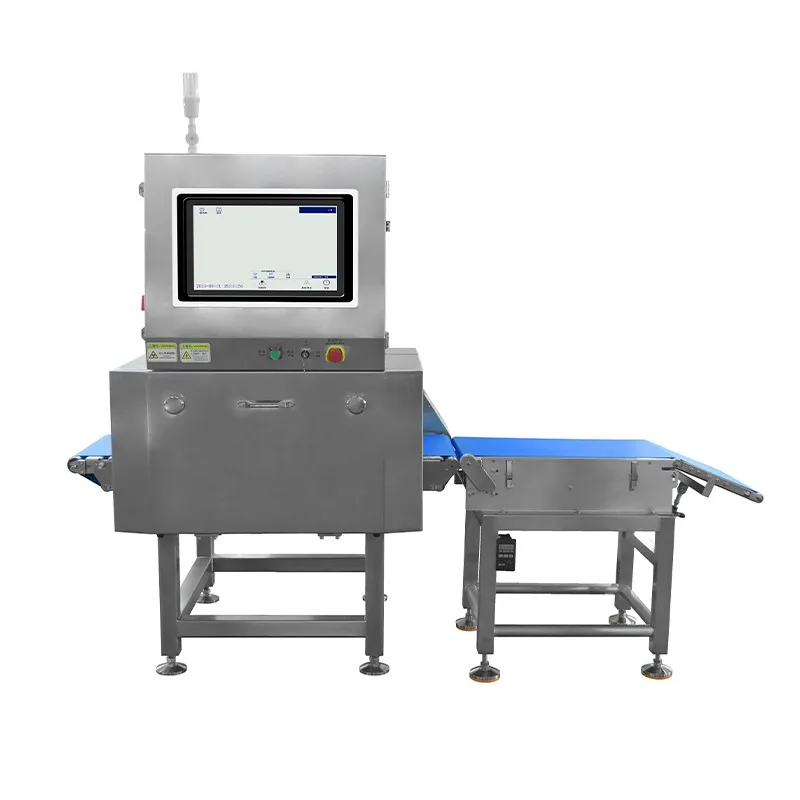

The main unit scans every product; a separate outfeed conveyor carries good product onward. When a defect is detected, the pneumatic sinking mechanism at the exit drops the reject into a collection point — without stopping the line.
The separated inspection and outfeed sections make installation, height adjustment and reject collection simpler on existing lines.

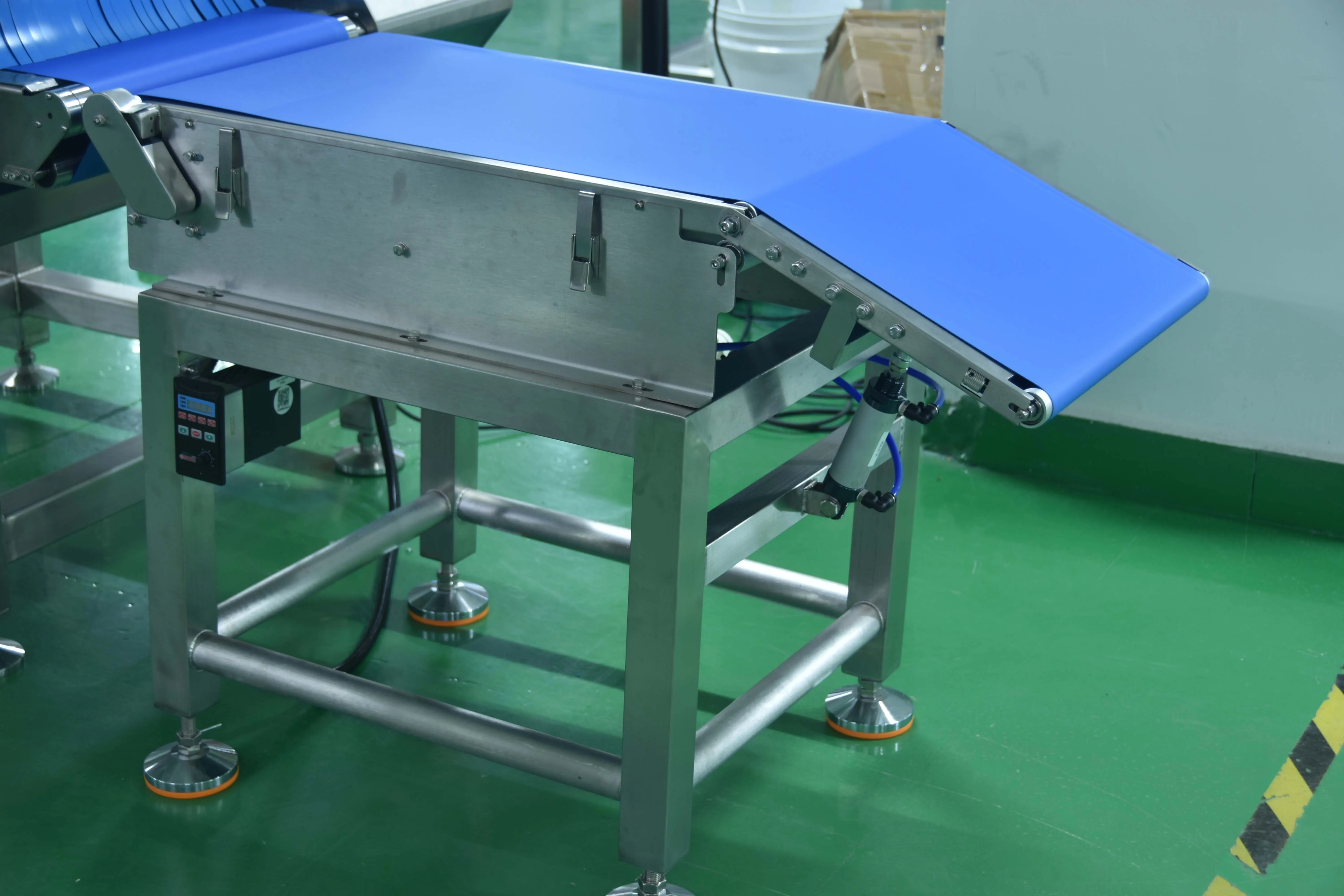

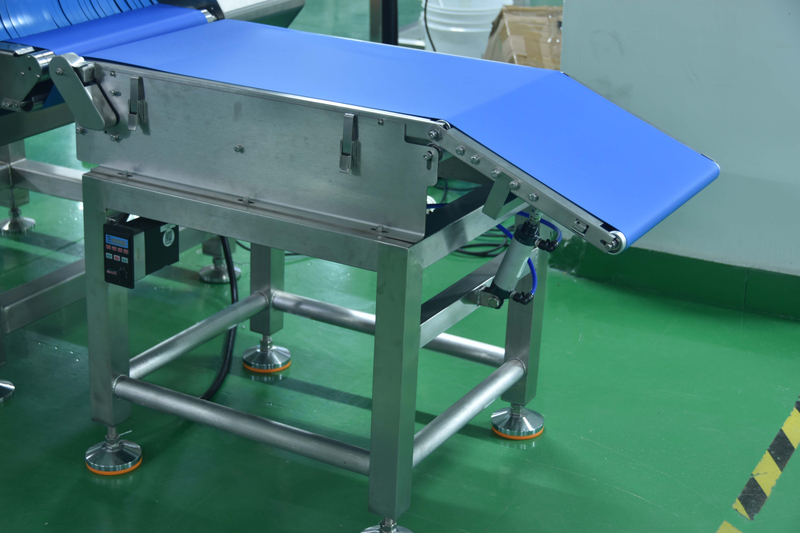

Independent outfeed conveyor with a pneumatic sink mechanism — rejects drop off the line automatically.

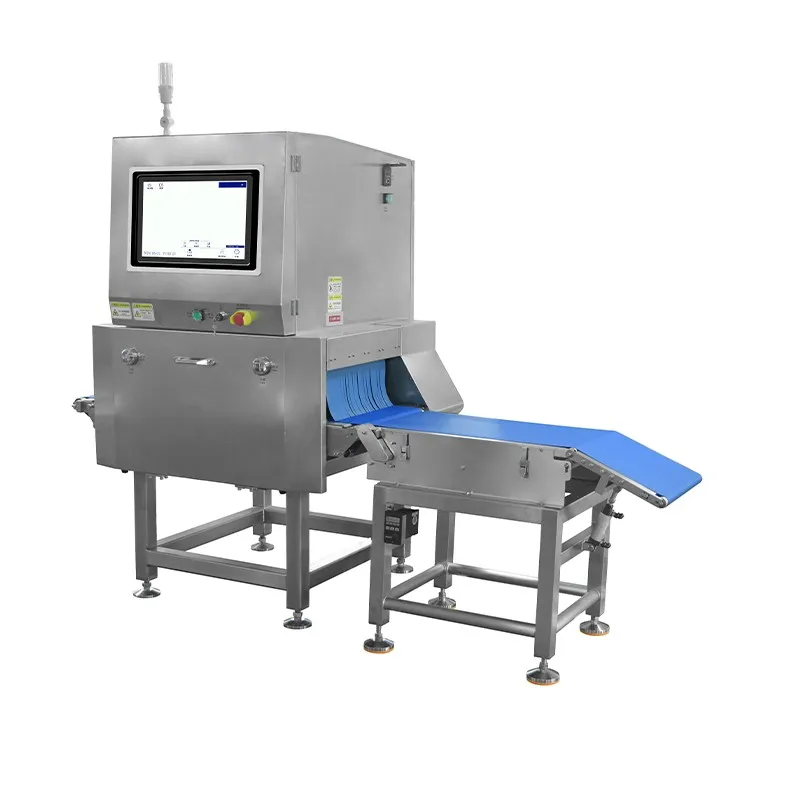

Inspection unit and outfeed conveyor each with independent frames and leveling feet — easy to position and align.

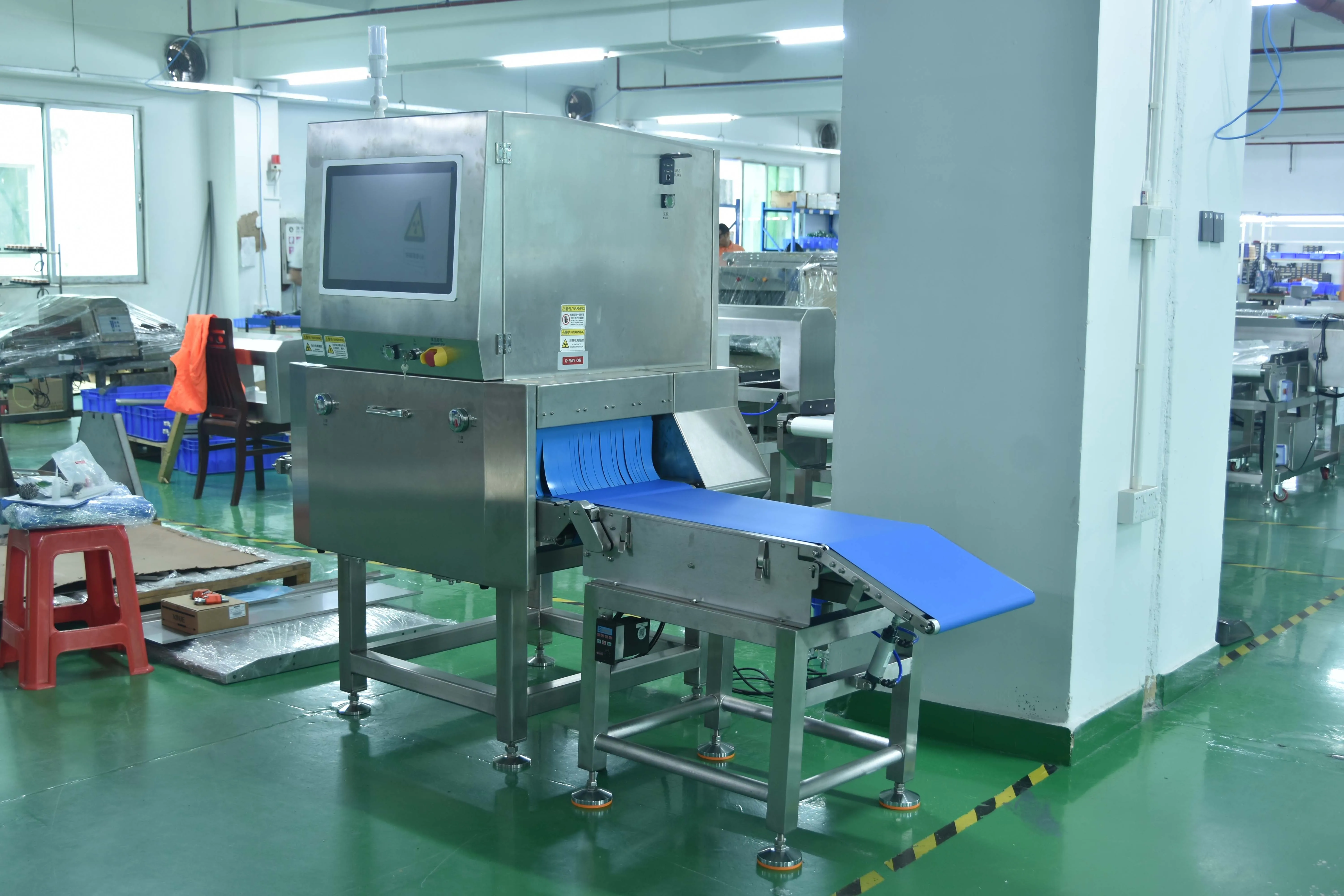

USB and RJ45 ports for data export and remote support, plus an independent belt-speed controller.

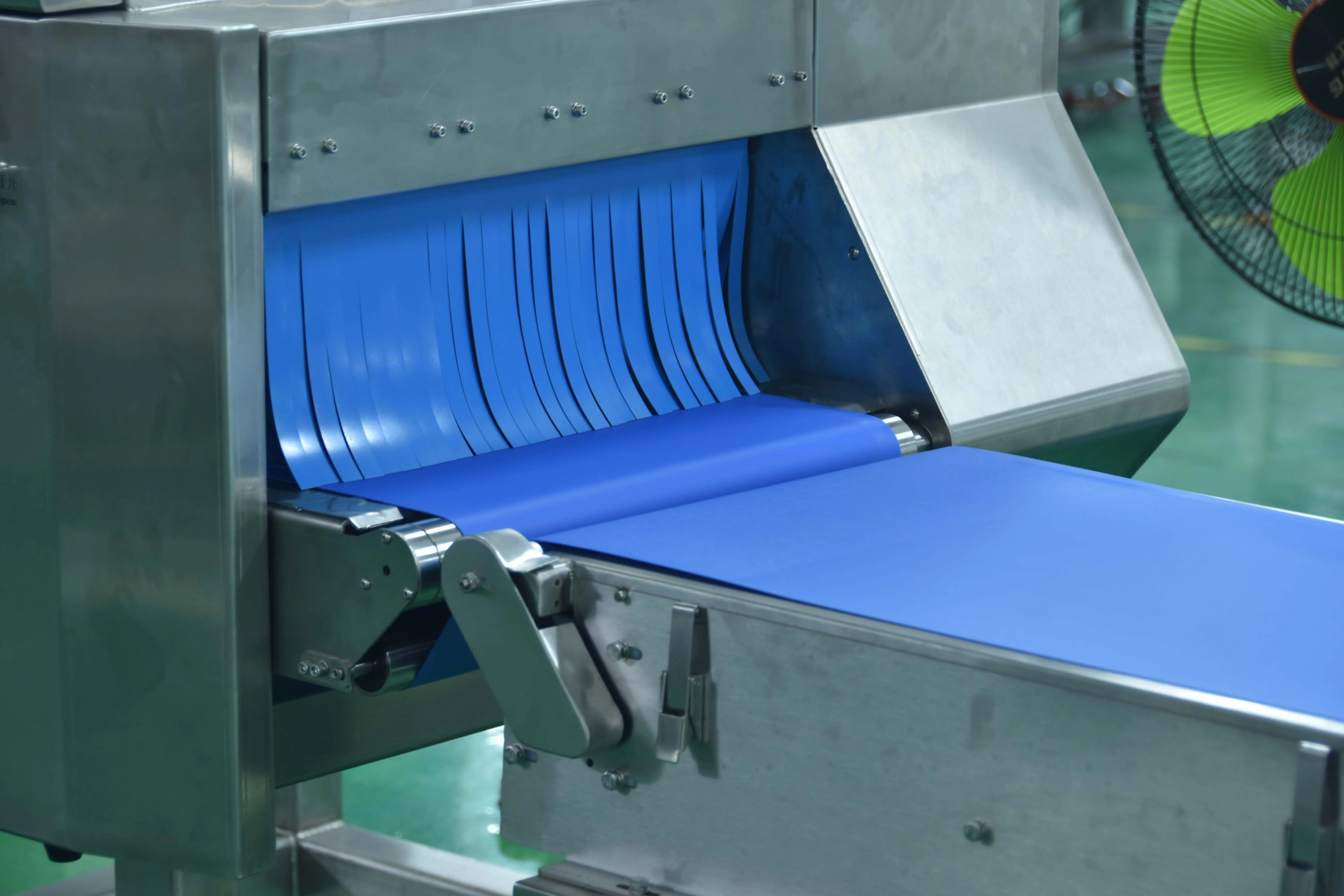

Radiation-shielded tunnel entry with X-RAY ON indication and interlocked doors for safe operation.

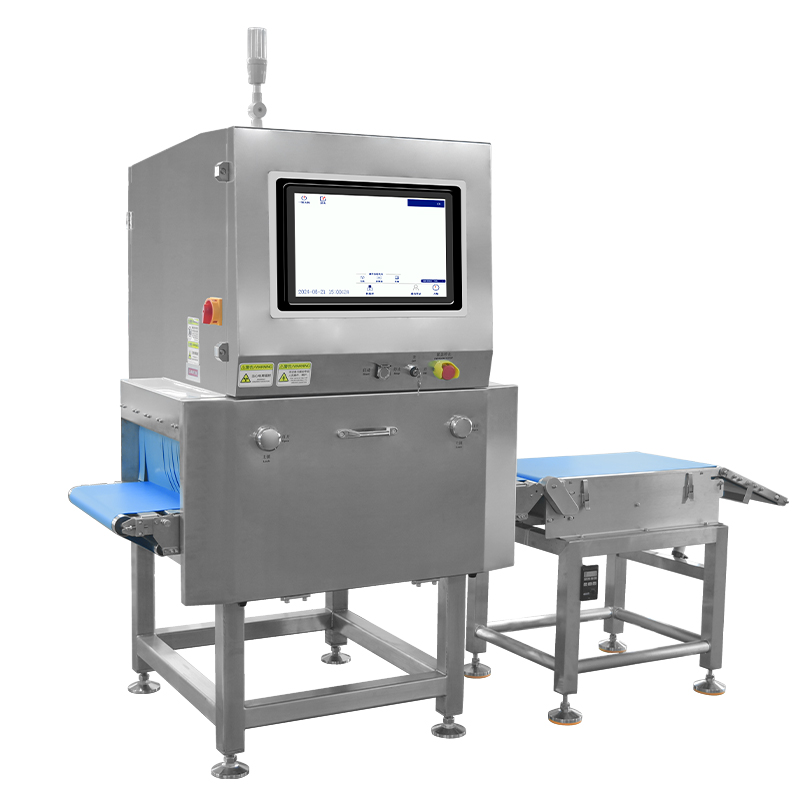

400×200 mm tunnel with split-type conveyor and sinking rejection, engineered for products up to 5 kg.
| Parameter | Specification |
|---|---|
| Model | CQ-YW800 (4020 Split-Type Sinking) |
| X-Ray Source | 150W / 240W / 350W Optional |
| Belt Speed | 10 – 70 m/min |
| Tunnel Width | 400 mm |
| Tunnel Height | 200 mm |
| Max Product Size | ≤280(W) × 200(H) mm / ≤400(W) × 60(H) mm |
| Detection Accuracy | SUS304 ball φ0.4 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 2223 × 1130 × 1696(+100) mm |
| Max Conveyor Load | 5 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Boxed · Bagged · Bulk |
| Rejection Method | Sinking (Split-Type Outfeed) |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
All values are factory data from the official CQ-YW800 (4020 sinking) spec sheet. Need pusher or dual-rejection versions? Ask about the CQ-YW800 series options. lynn@chaoqiang1688.com
Powders, sausages, sauces and more — the CQ-YW800 handles bagged, boxed and bulk forms.
From installation to spare parts, the Chaoqiang team keeps your split-type X-ray line running at full uptime.
Factory engineers on site for repairs, verification and calibration whenever you need them.
Planned maintenance that protects uptime and extends the life of your inspection line.
Operator and technician training to get the most from your machine every shift.
Genuine parts and kits ready for fast dispatch, keeping downtime short.
Guangdong Chaoqiang Electronic Technology Co., Ltd. is a Dongguan-based manufacturer with 18+ years of detection equipment R&D. The split-type CQ-YW800 is assembled, calibrated and line-tested in our own workshop before shipment — no middlemen, no reselling.
Chaoqiang exhibits across Asia and beyond — bring your product samples and test them live on the CQ-YW800.
Share your product, pack size and line speed — our engineers will confirm the right sinking-rejection setup for you.
