CQ-XY800 4020
CHAO QIANG

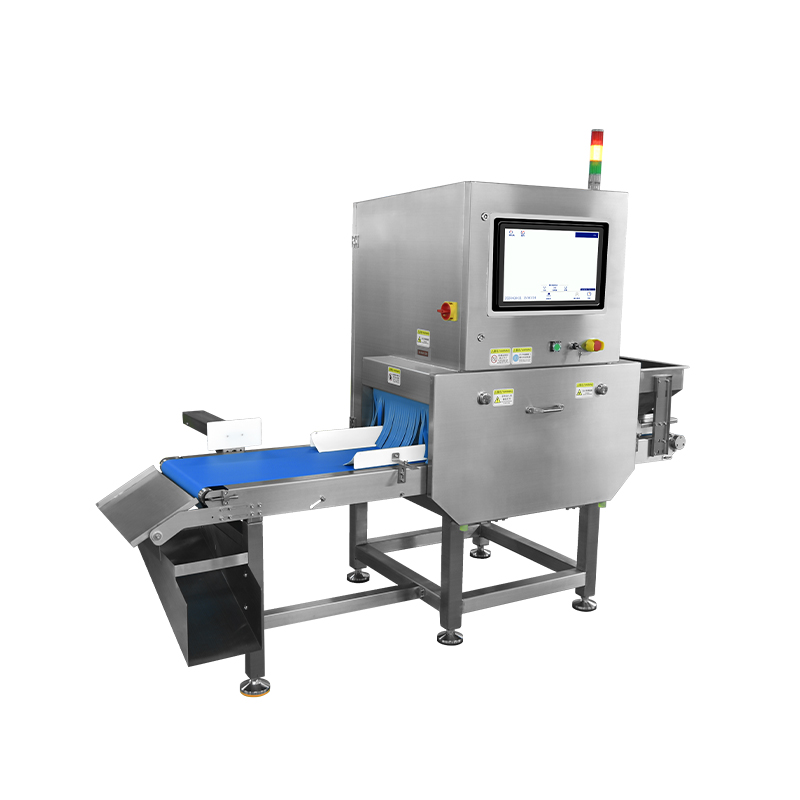

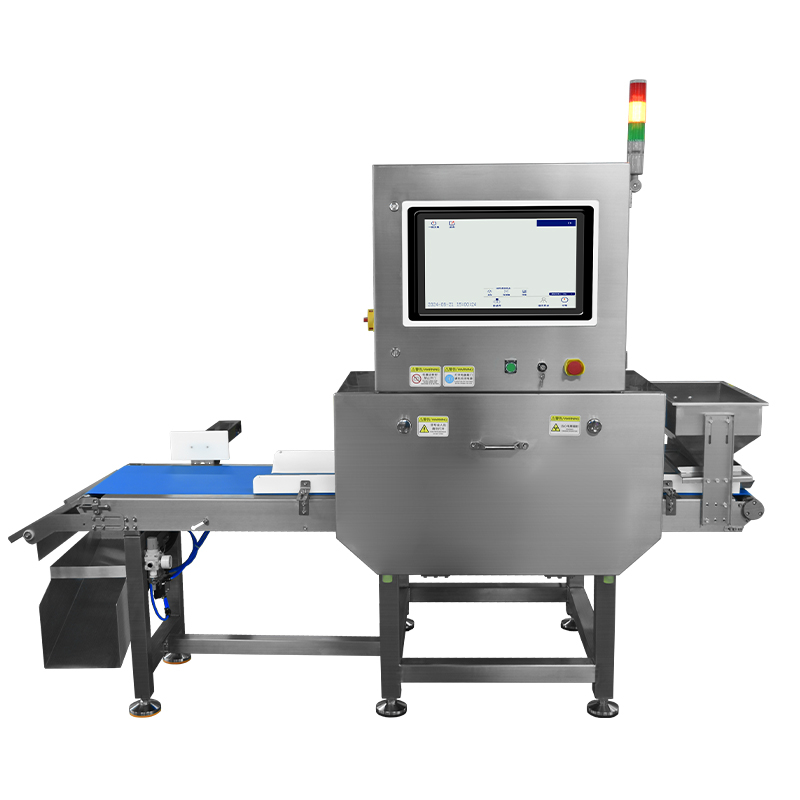

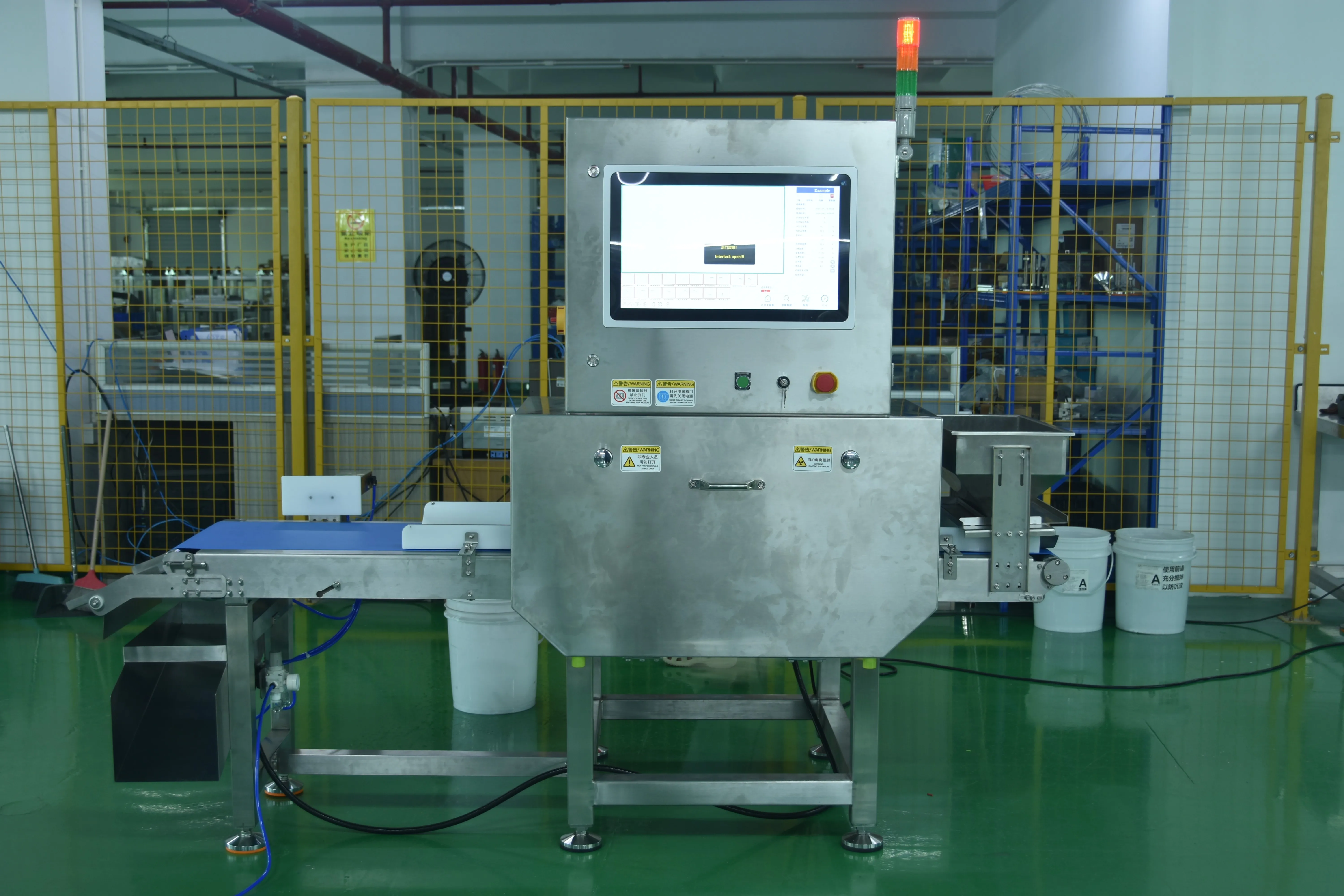

High-speed foreign body detection for packaged and bulk products. The customized CQ-YW800 combines a 400×200 mm inspection tunnel with two independent pneumatic pusher stations — it sees inside every pack and removes rejects without stopping your line.
As lines get faster, inspection must keep up — and one reject station can become the bottleneck that decides your whole throughput. The customized dual-rejection CQ-YW800 is built for exactly this situation.
One pusher at high belt speed leaves too little time to clear every reject — products slip through.
Stones, glass, ceramic and bone hide inside packaged and bulk product — invisible to the eye and to metal detectors.
Hand-picking is slow, inconsistent and burns labor budget on every shift — especially on bulk lines.
Without time-stamped scan records, a single complaint becomes a costly dispute you cannot defend.
X-rays pass through materials that visible light cannot. The CQ-YW800 captures a live internal image of every product on the belt, analyzes it by density difference, then commands the twin pusher stations to eject any defect — continuously, without stopping production.
The CQ-YW800 pairs precision X-ray imaging with a customized rejection layout — engineered around your product form and line speed.

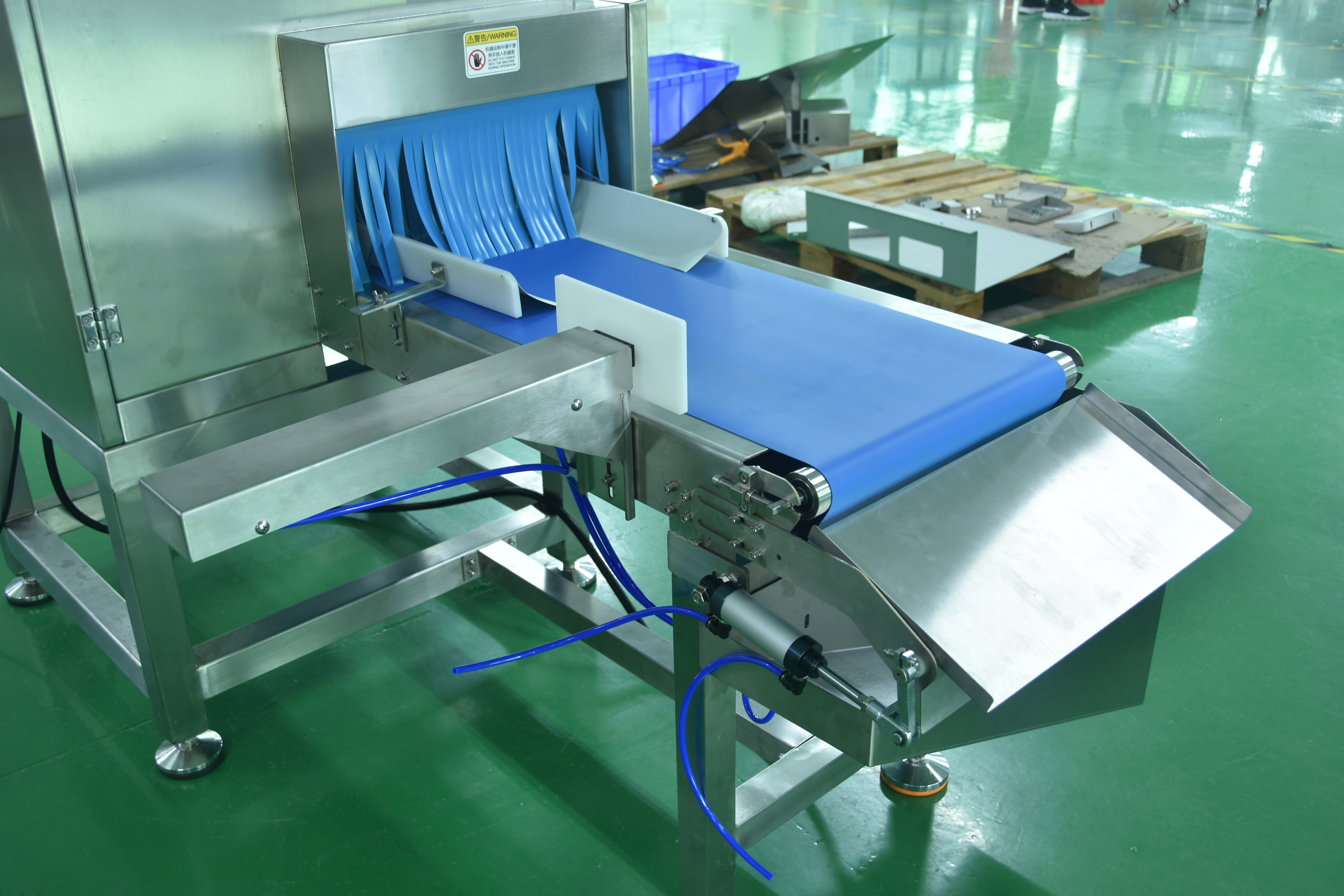

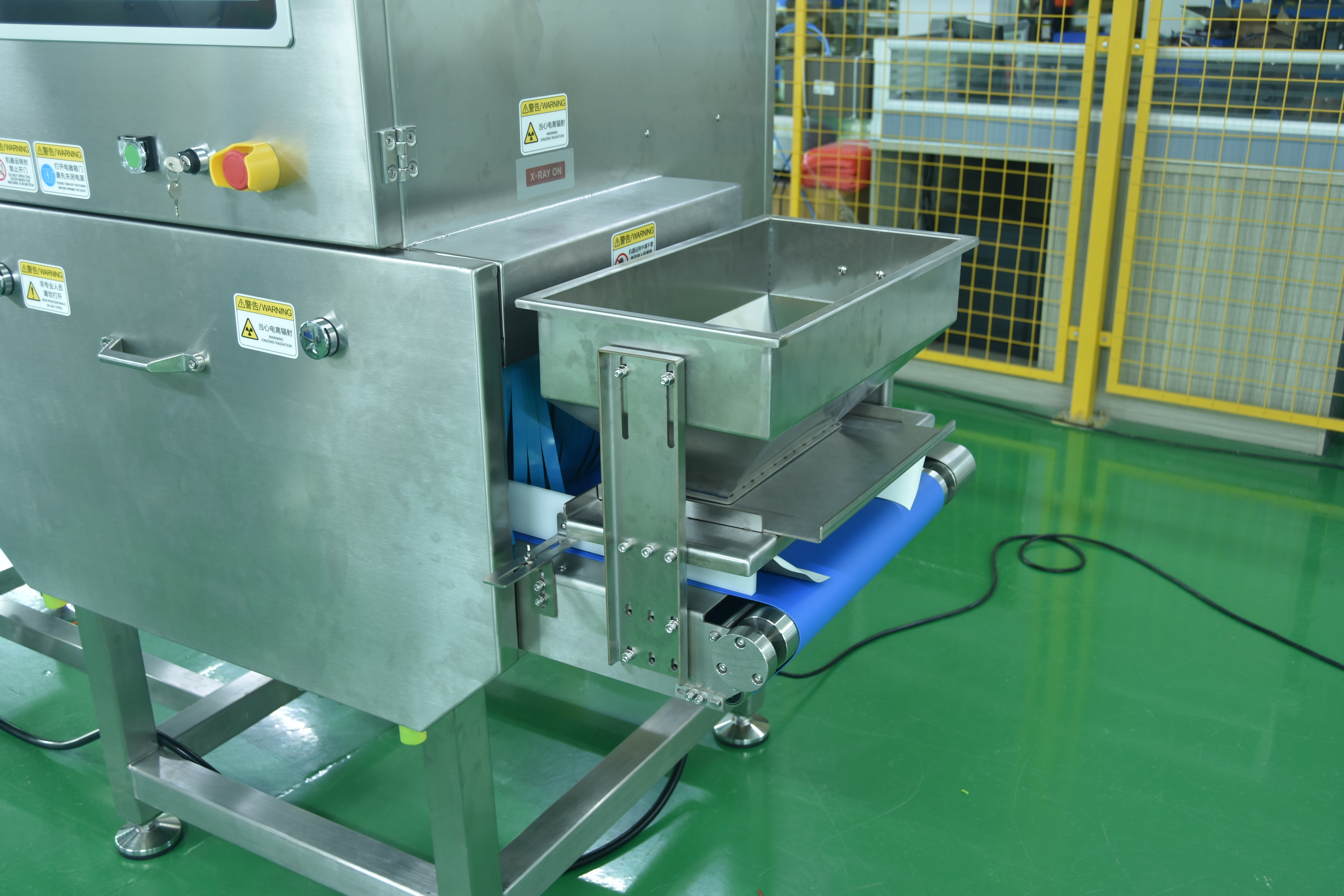

Two independent pneumatic pusher stations remove rejects in sequence — no line stop, no missed product, even at top belt speed.

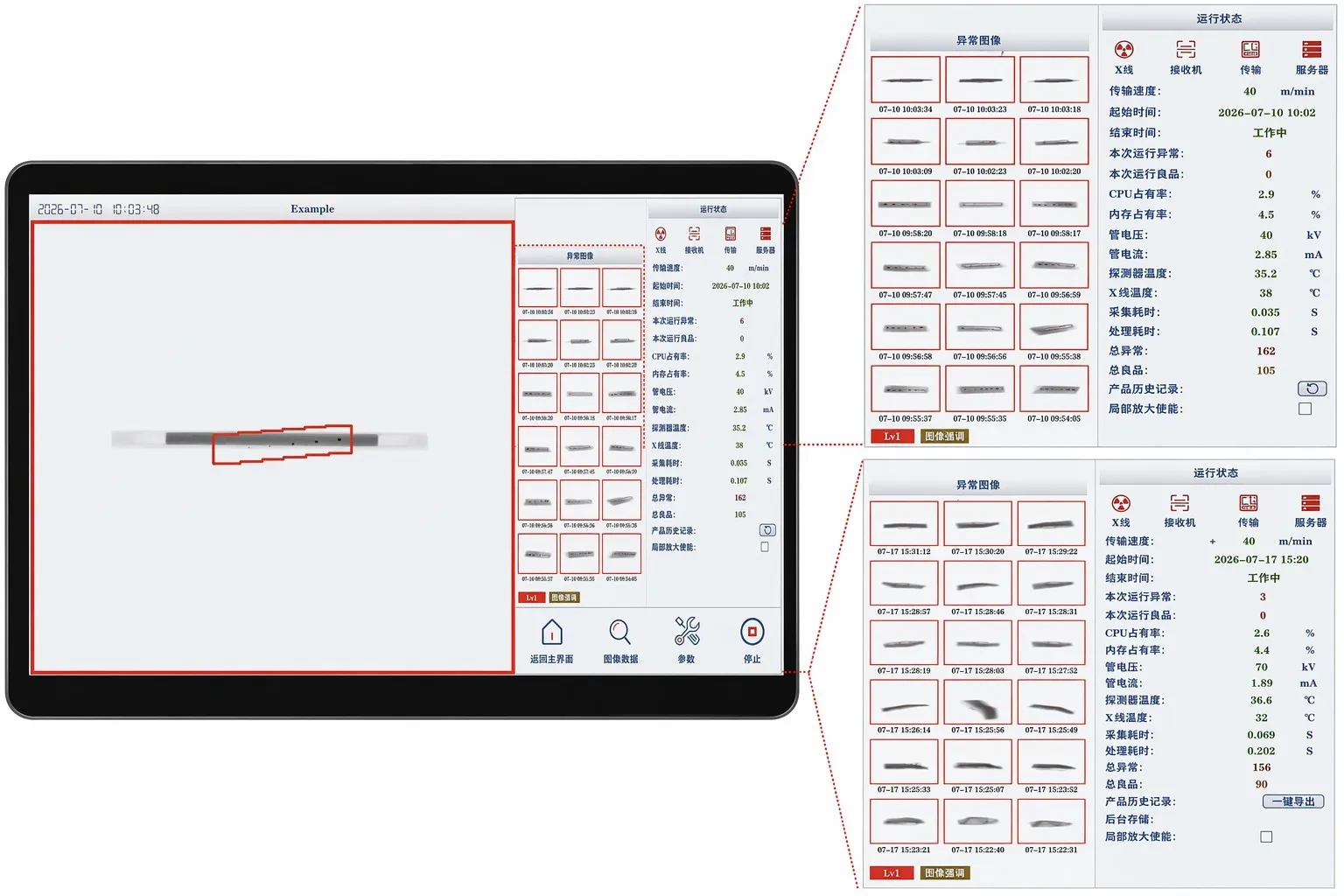

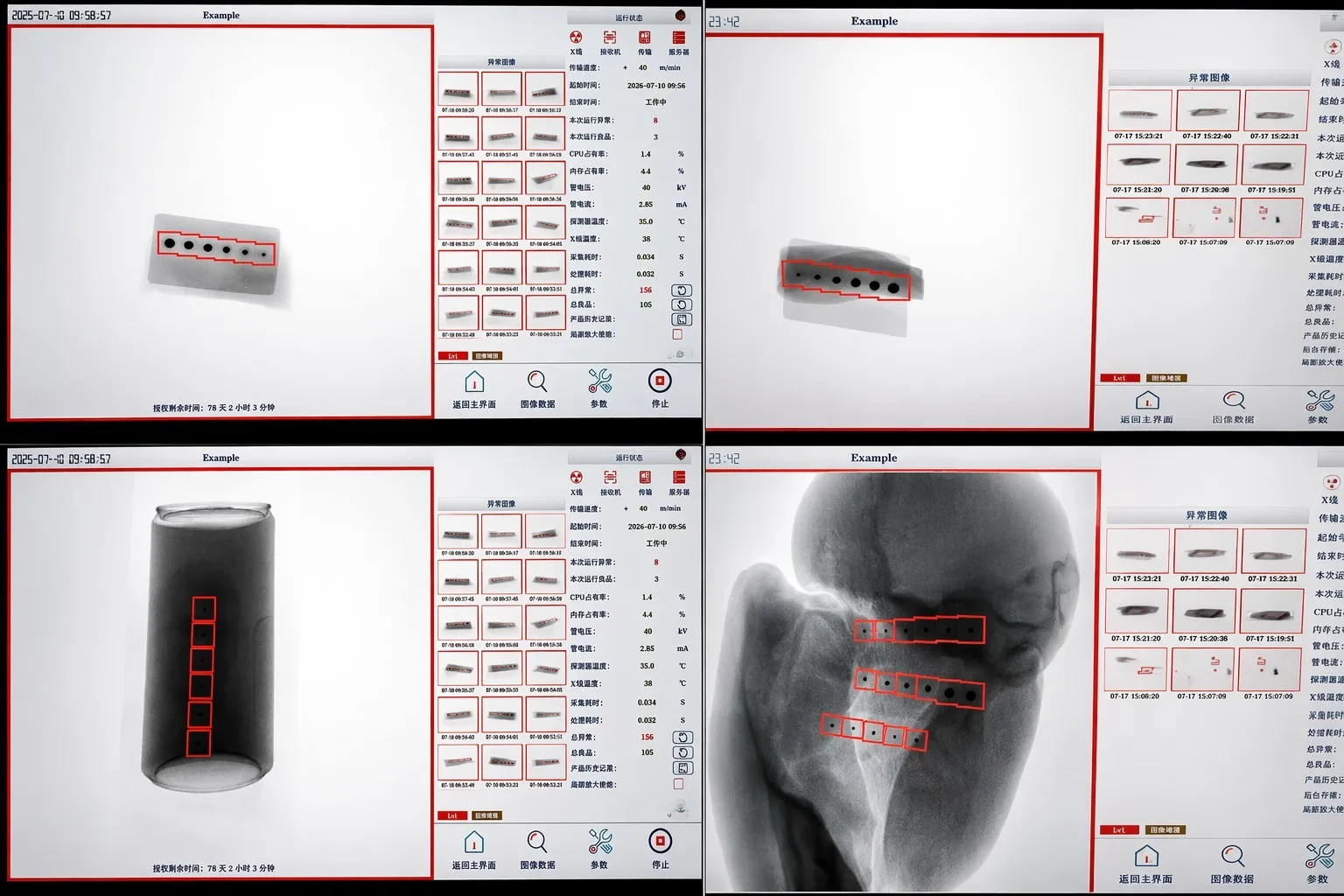

Every scan is logged with time-stamped images and anomaly thumbnails. Full run history is exportable over LAN or USB.
Density-based algorithms detect SUS304 balls down to φ0.4 mm, ceramic to φ1.0 mm and glass to φ2.0 mm.

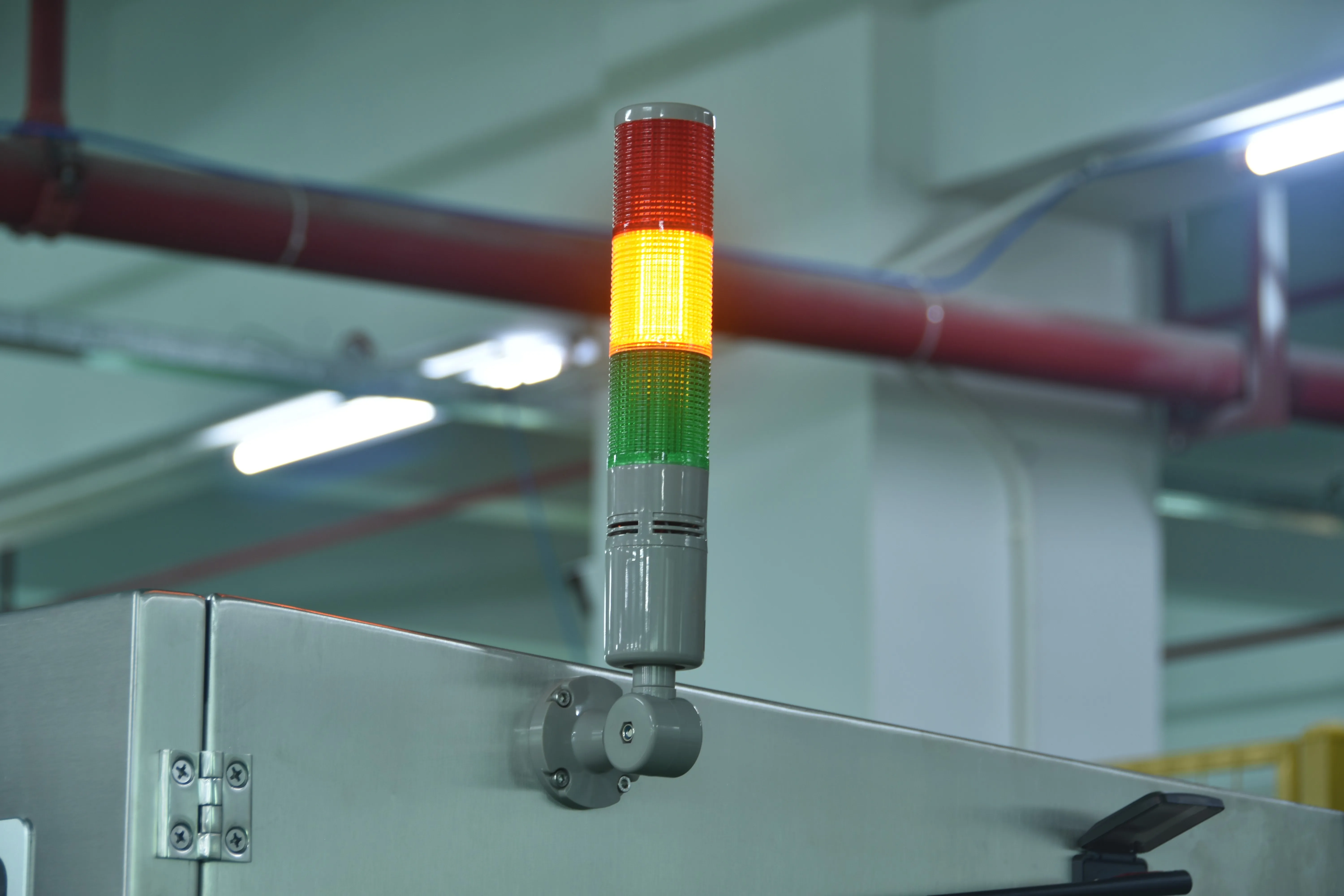

Tower light and audible alarm give instant status across the plant floor — plus touchscreen multi-language operation.
Configured with a 400×200 mm tunnel and dual pusher rejection for packaged and bulk products.
| Parameter | Specification |
|---|---|
| Model | CQ-YW800 Customized Dual-Rejection |
| X-Ray Source | 150W / 240W / 350W Optional |
| Belt Speed | 10 – 70 m/min |
| Pass Width | 400 mm |
| Pass Height | 160 mm |
| Max Window Height | 200 mm |
| Detection Accuracy | SUS304 ball φ0.4 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 2010 × 1137 × 1483(+100) mm |
| Max Conveyor Load | 10 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Packaged & Bulk |
| Rejection Method | Dual Pusher (customized) |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
Specifications above are factory data from the official CQ-YW800 spec sheet. Need a different tunnel size, reject layout or source power? Contact our engineers for a custom configuration. lynn@chaoqiang1688.com
From installation to spare parts — Chaoqiang's global service network keeps your line running at maximum uptime.
Field engineers ready to respond to emergency breakdowns, repair, verification and calibration calls.
Maintenance plans designed to maximize uptime of inspection equipment — peace of mind for managers and operators.
A training academy built around everyday inspection needs — improving performance and productivity.
Wide range of stocked parts and machine-specific spare parts kits to aid production uptime.

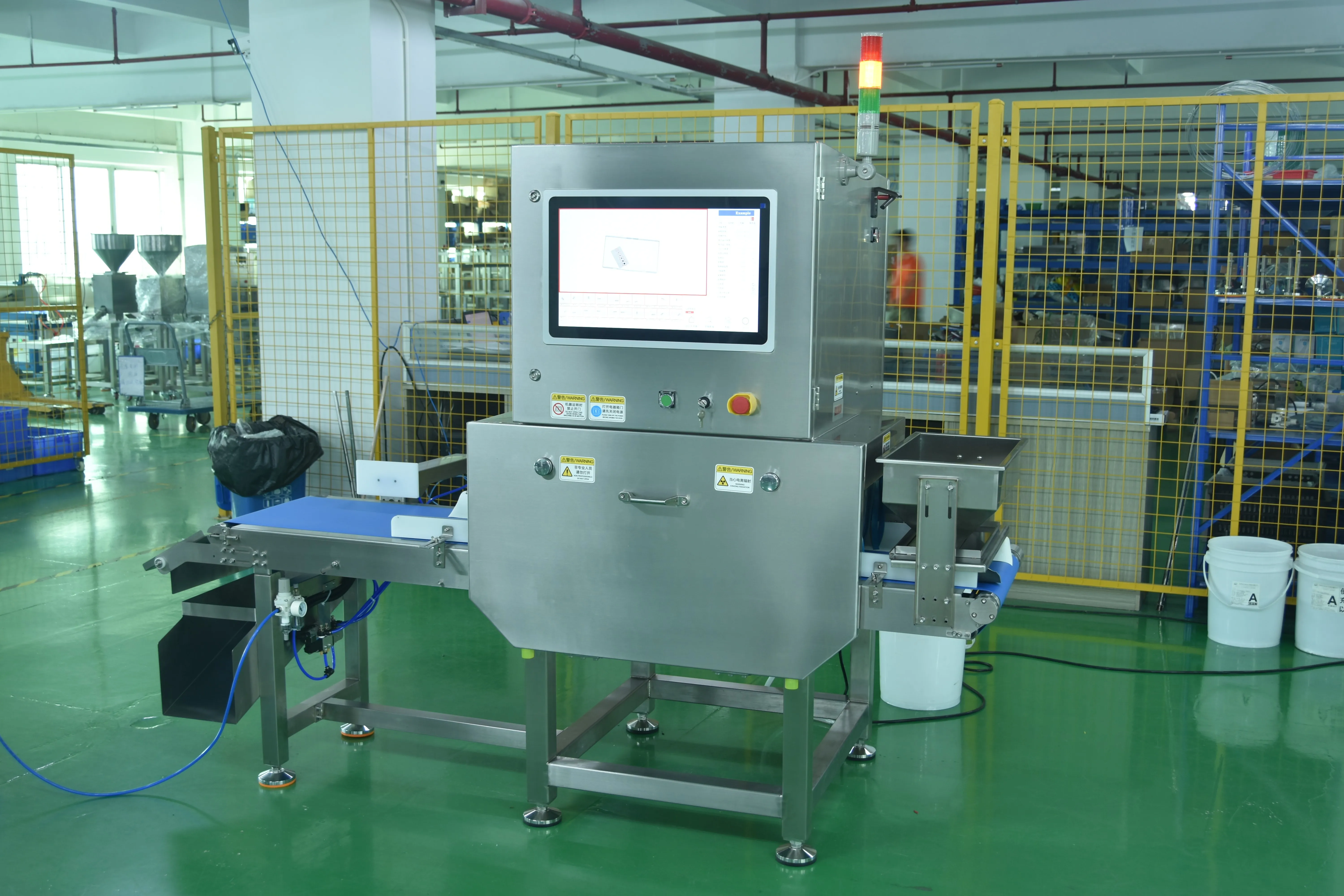

Guangdong Chaoqiang Electronic Technology Co., Ltd. is the source — an electronics and detection equipment manufacturer in Dongguan with 18+ years of dedicated R&D. Every CQ-YW800 is assembled, tested and calibrated by the engineers who design the machines. No middlemen, no reselling.
From food processing to packaging expos — Chaoqiang's team demonstrates real machines, real scans and real results on the show floor.
Tell us your product form, line speed and rejection requirement. Our engineers will configure the dual-rejection layout around your exact line.
