CQ-XY800 5030
CHAO QIANG

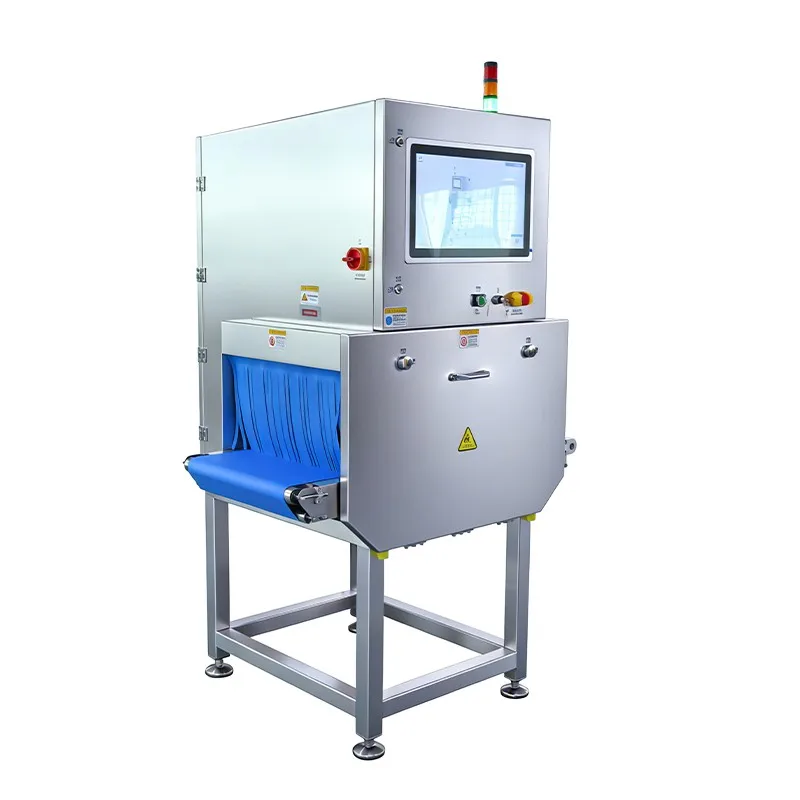

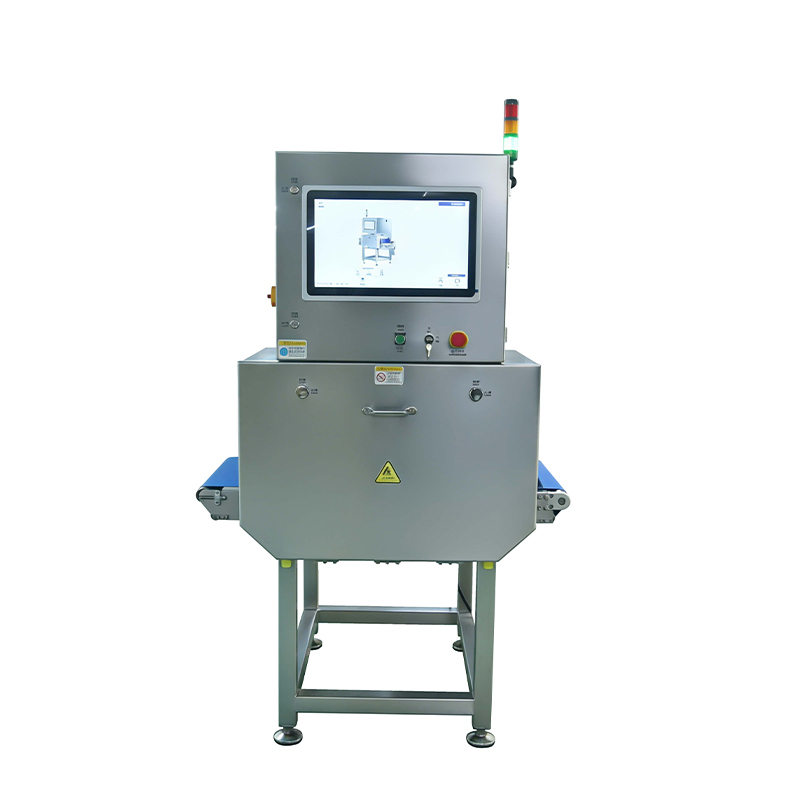

A 500×300 mm X-ray tunnel built for large boxes, bags, pallet loads and bulk product — 150–350 W selectable source, 10 kg capacity, with optional pusher, flap, air-blow or swing-arm rejection.
Large cartons, heavy bags and pallet-loaded lines move fast — but the contaminants inside move with them. Stones, bones, glass shards and metal fragments sit deep inside dense packaging where metal detectors simply cannot reach.
Foreign bodies buried in thick, dense product escape standard metal-detection screening.
Bulk lines push up to 10 kg per item — flimsy inspection units cannot handle the throughput.
Random opening of cartons is slow, destructive and still misses most of the line.
One contaminated pallet shipped to a retailer can cost far more than a machine.
Powerful X-ray radiation passes through the full carton or bag, the linear detector builds a density image, and the software flags any fragment that does not belong — then triggers the reject device of your choice.
A rugged frame and selectable power source handle dense, heavy product — with sensitivity verified by standard test cards.

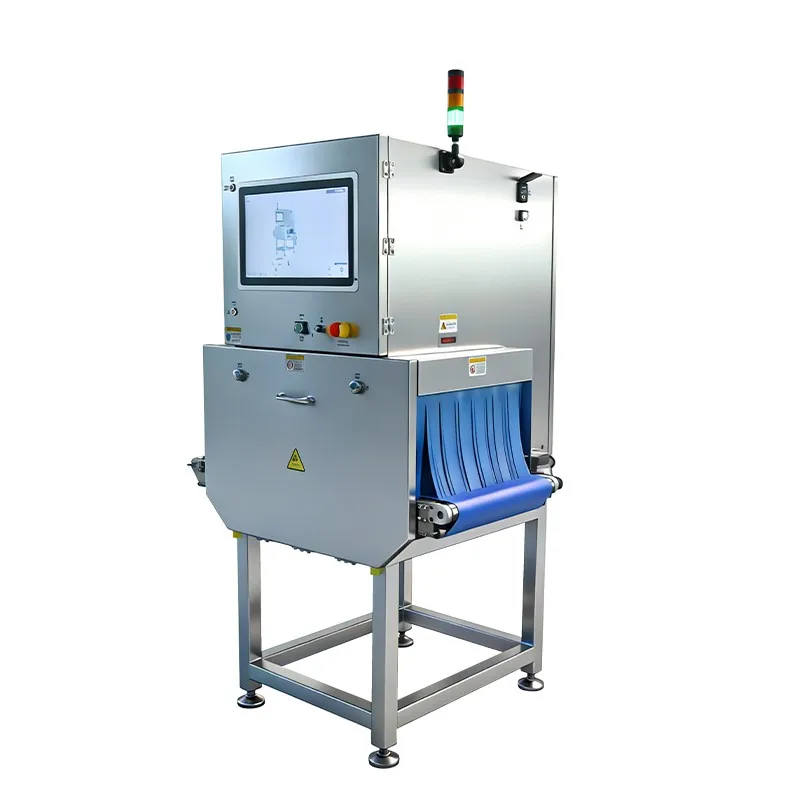

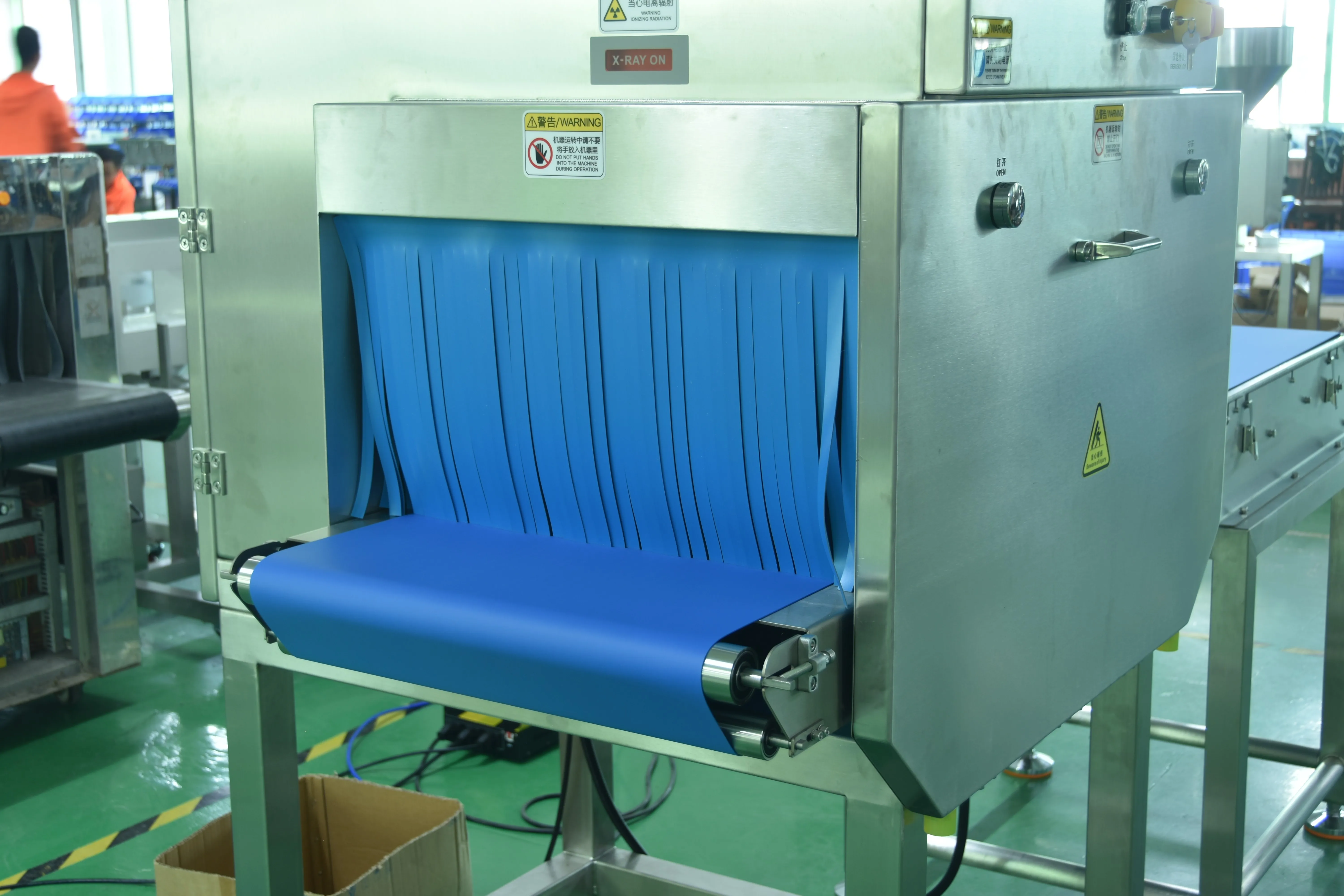

Large opening accepts big cartons, bags and stacked product without line reconfiguration.

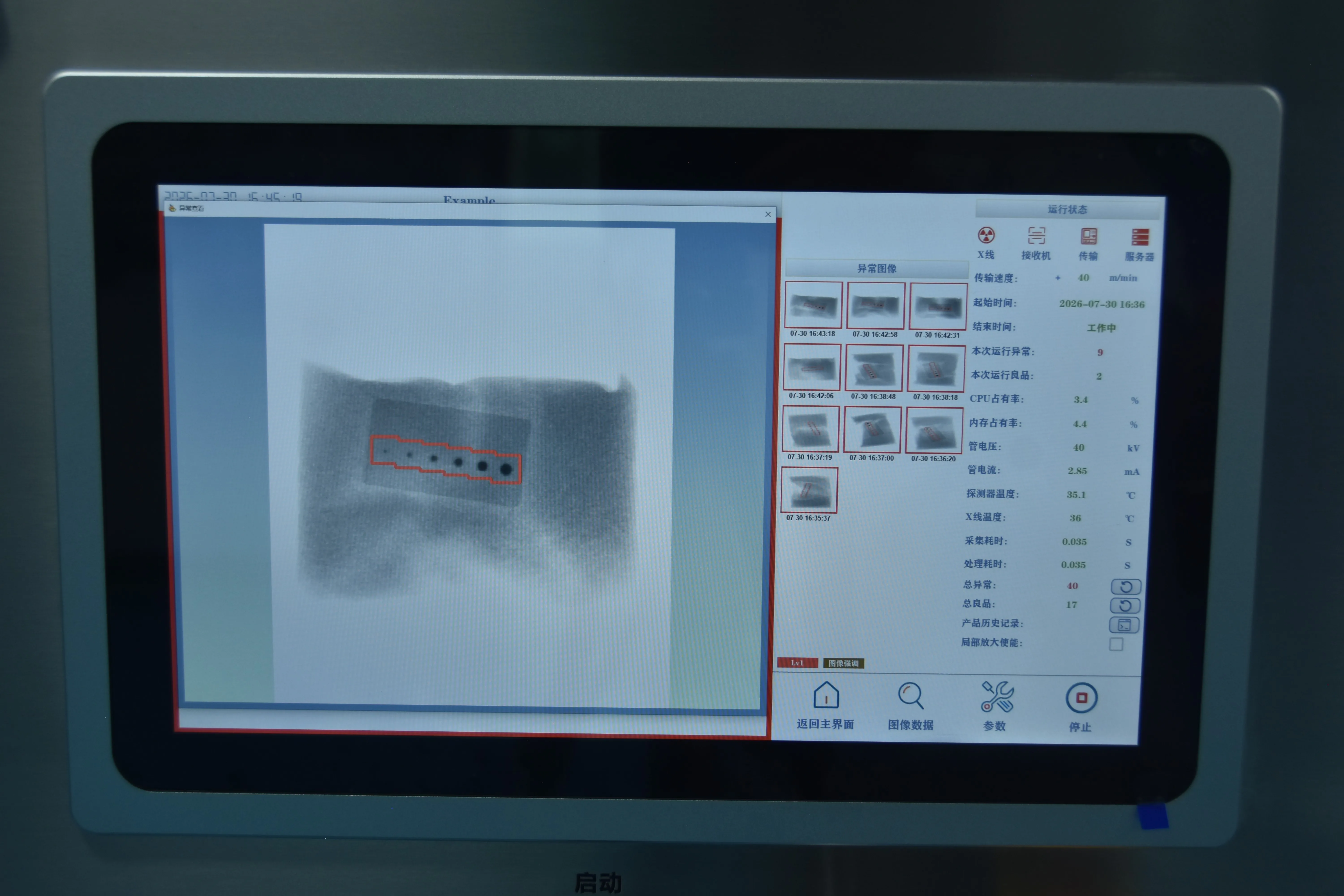

The live scan screen shows tube voltage, current and belt speed in real time — tune source power to match your product density.

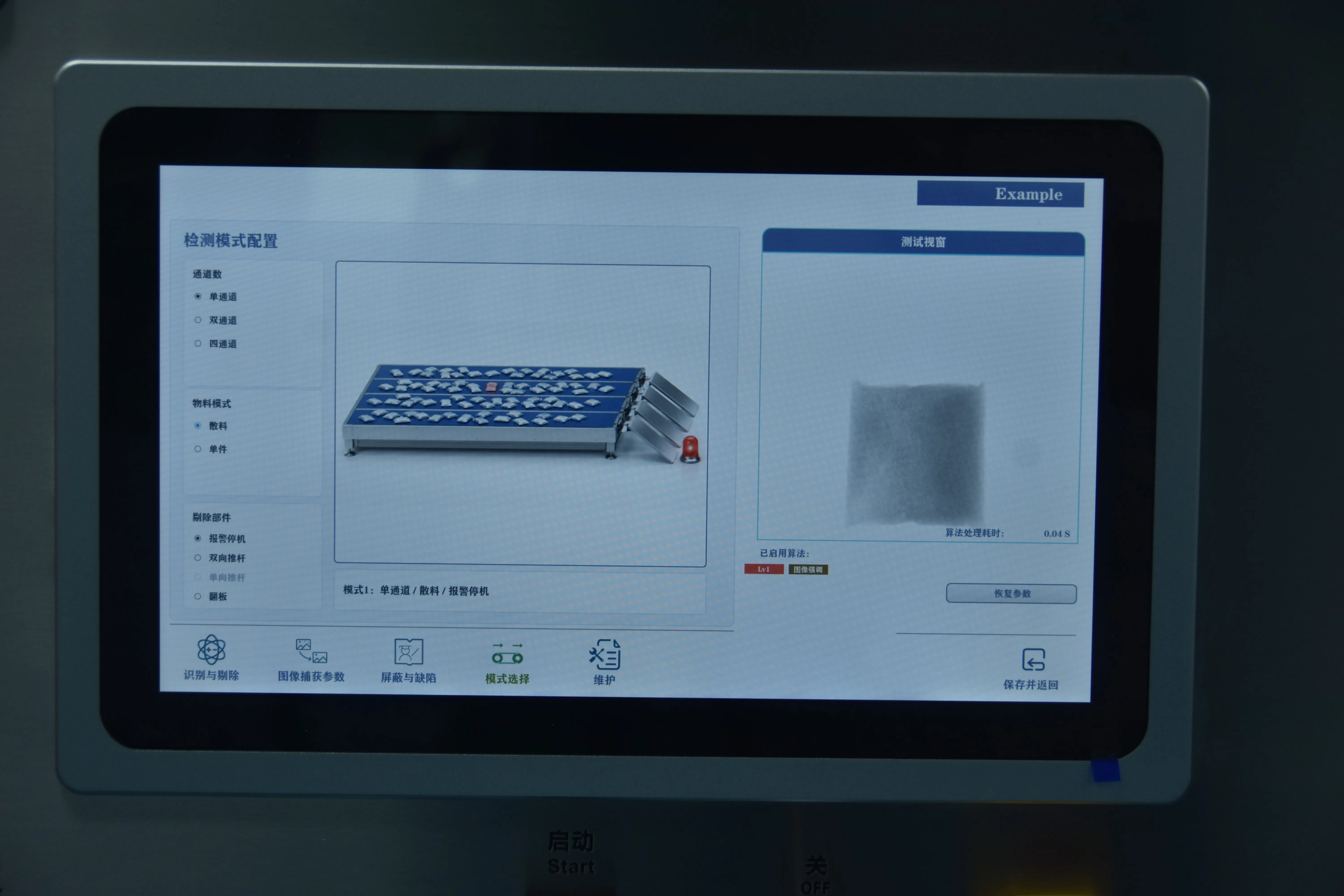

Single or dual channel, bulk or piece mode, alarm stop, pusher or flap — every reject scenario set from one screen.

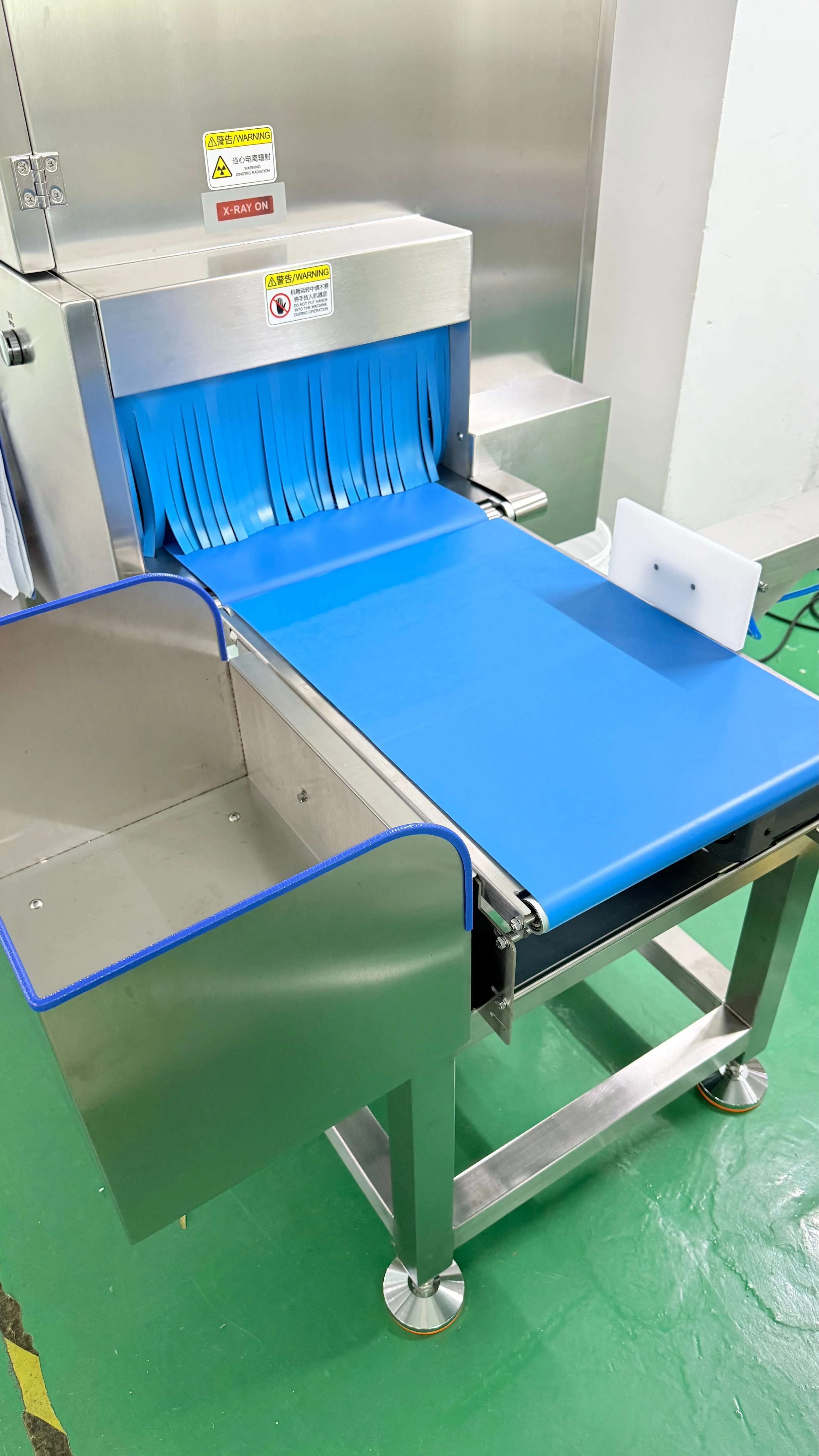

Reinforced frame and food-grade PU belt carry heavy items at full line speed.
500×300 mm tunnel with 150–350 W selectable source and 10 kg load capacity.
| Parameter | Specification |
|---|---|
| Model | CQ-YW800 (5030 Heavy-Duty) |
| X-Ray Source | 150W / 240W / 350W Selectable |
| Belt Speed | 10 – 70 m/min |
| Tunnel Width | 500 mm |
| Tunnel Height | 300 mm |
| Max Product Size | ≤300(W) × 260(H) mm / ≤500(W) × 10(H) mm |
| Detection Accuracy | SUS304 ball φ0.6 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 1224 × 1090 × 1973(+50) mm |
| Max Conveyor Load | 10 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Bagged · Boxed · Bulk |
| Rejection Method | NG Shutdown + Auto Removal (Pusher / Flap / Air Blow / Swing Arm) |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
All values are factory data from the official CQ-YW800 (5030 heavy-duty) spec sheet. Need another tunnel size? The full CQ-YW800 family covers 400×200 to 500×300 mm. lynn@chaoqiang1688.com
Comprehensive foreign-object detection inside large boxes, bags, pallet loads and bulk product — iron, stainless steel, ceramics, glass, stones, bones, shells, hard rubber and hard plastics.
Chaoqiang backs every heavy-duty system with factory-trained engineers and genuine parts.
Factory-trained engineers install, calibrate and verify your heavy-duty line on site.
Scheduled maintenance keeps 10 kg-per-item lines running shift after shift.
Hands-on operator training covers setup, tuning and daily verification routines.
Genuine spares for the 5030 series shipped fast to protect uptime.

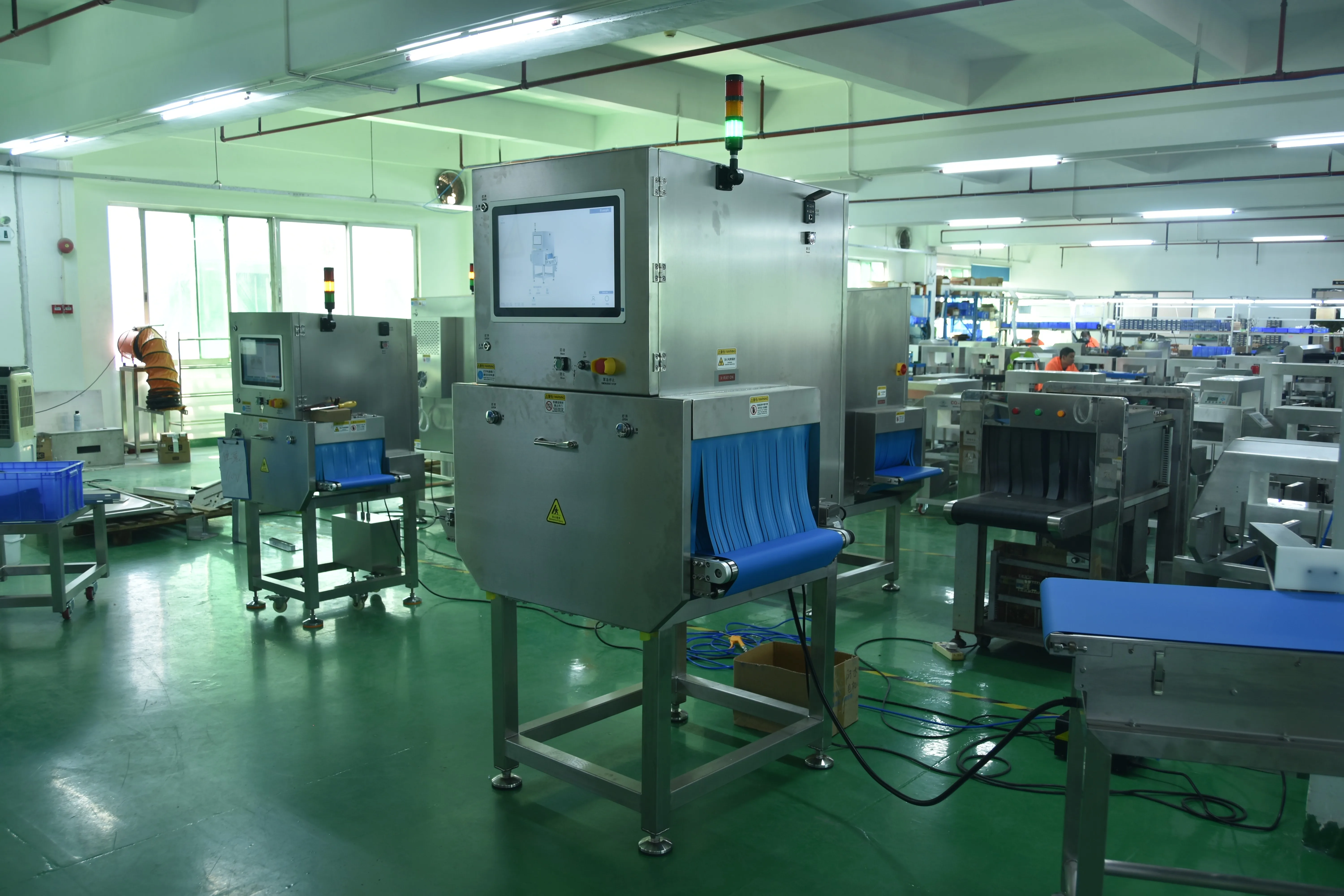

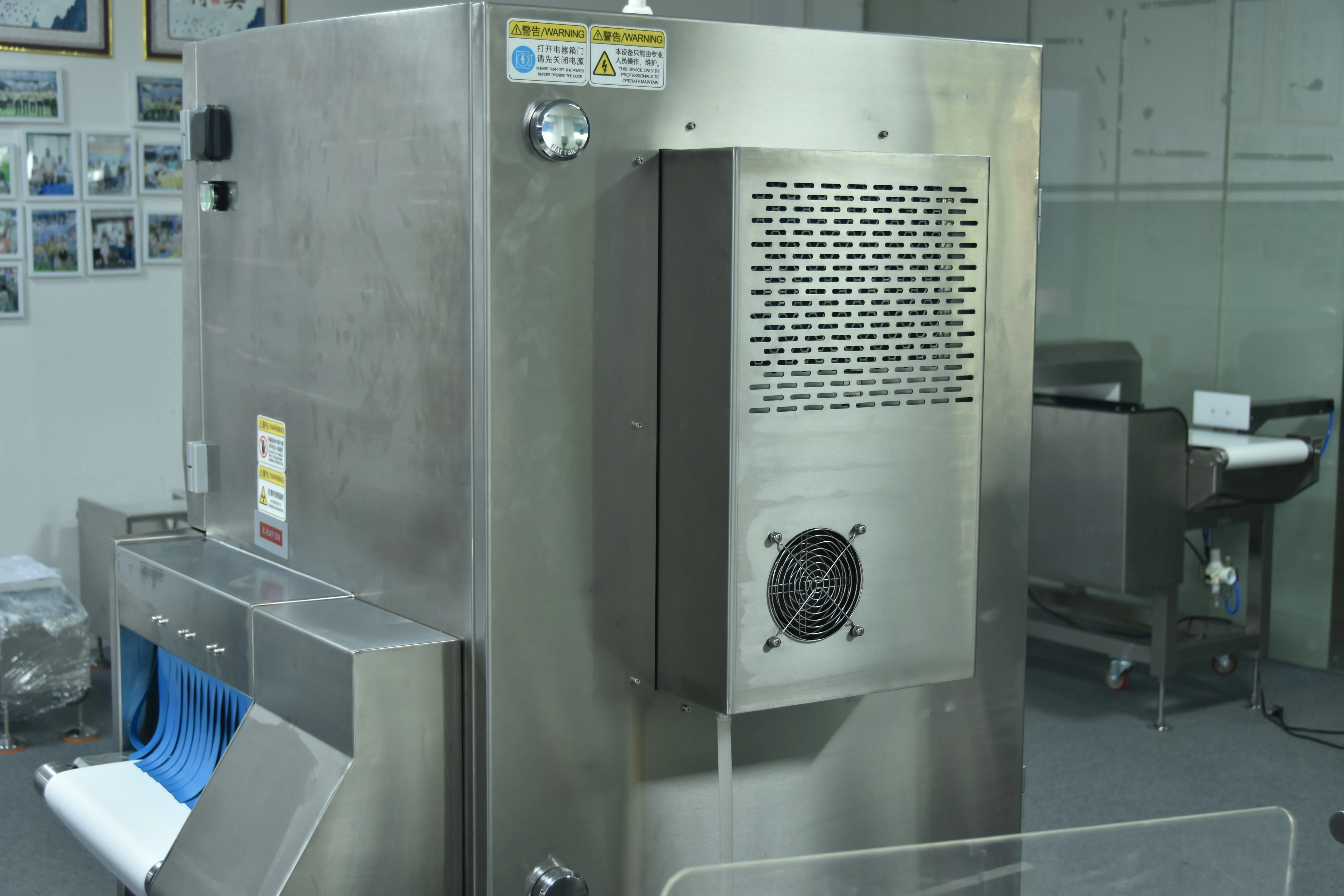

Guangdong Chaoqiang Electronic Technology Co., Ltd. designs and builds the CQ-YW800 series in Dongguan — 18+ years of detection R&D, with every heavy-duty unit assembled, run-tested and calibrated by our own engineers before delivery.
Meet the Chaoqiang team at exhibitions worldwide — and bring samples to test on the machine live.
Send us your product samples — our engineers will confirm detection performance and the right reject device for your line.
