CQ-XY800 4020
CHAO QIANG

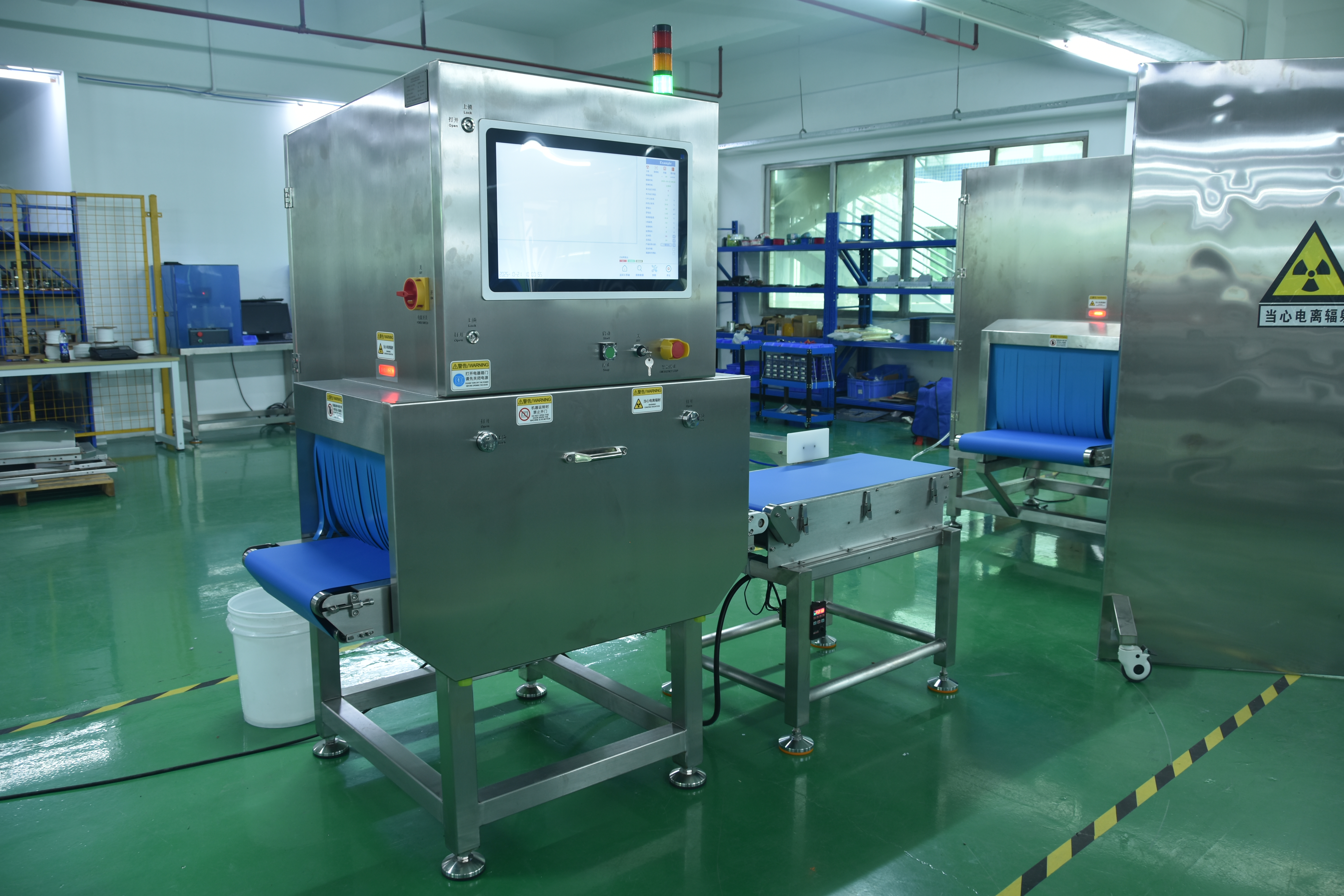

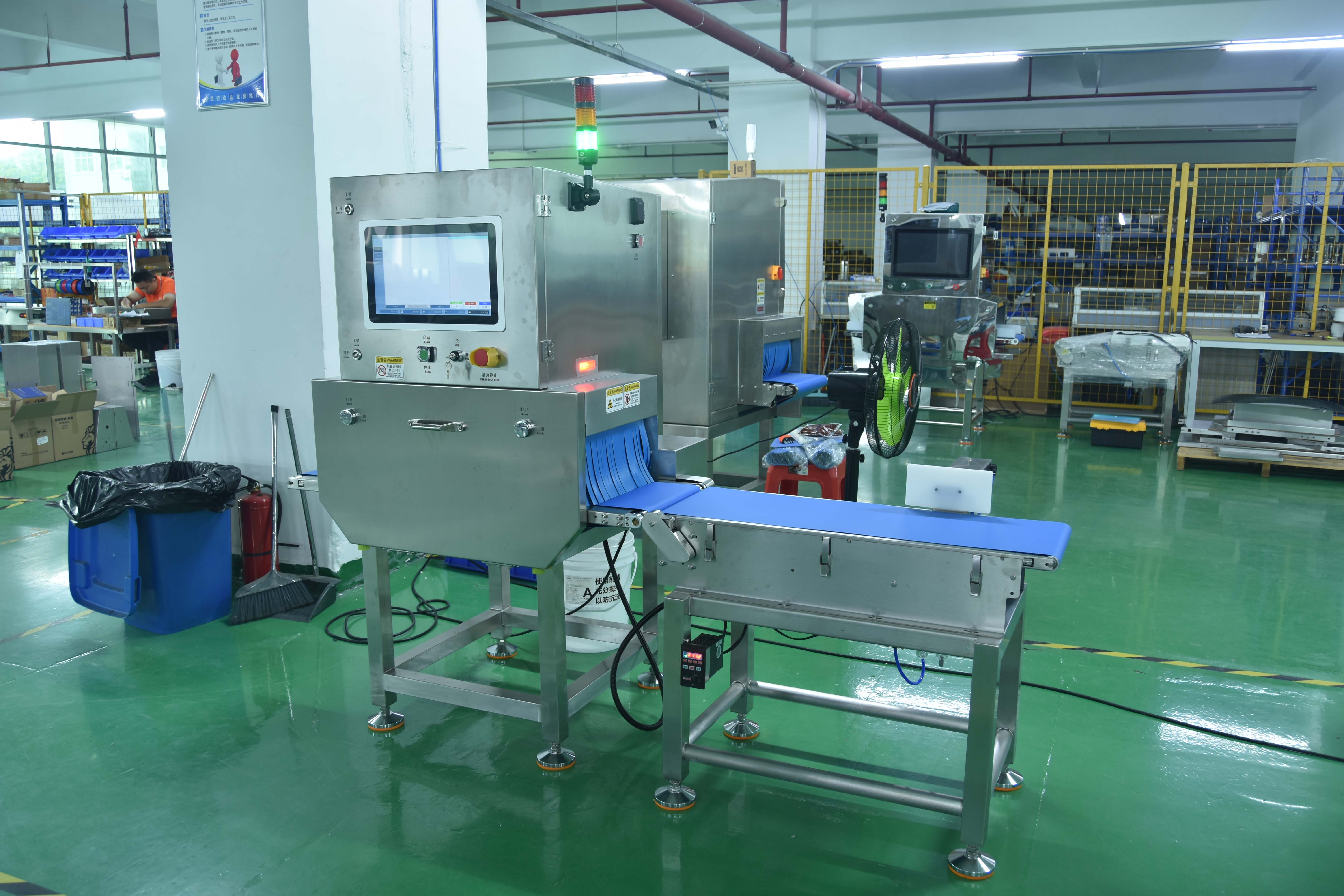

A 400×200 mm X-ray line with a separate outfeed conveyor and pneumatic pusher — inspects seafood, meat, bakery and packaged products for iron, stainless steel, ceramics, glass, stones, bones, shells, hard rubber and hard plastics.
Seafood, meat and bakery products hide bones, shells and hard fragments inside — often invisible until a customer finds them. The split-type CQ-YW800 scans every pack and pushes rejects off the line automatically.
Fish bones, shell fragments and cartilage hide inside vacuum packs — impossible to spot by eye.
Vacuum pouches and foil trays defeat metal detectors — only X-ray sees through the pack.
Hand-checking fresh lines is slow and unreliable — and slows your whole shift down.
Without scan logs, one complaint can escalate into a recall you cannot challenge.

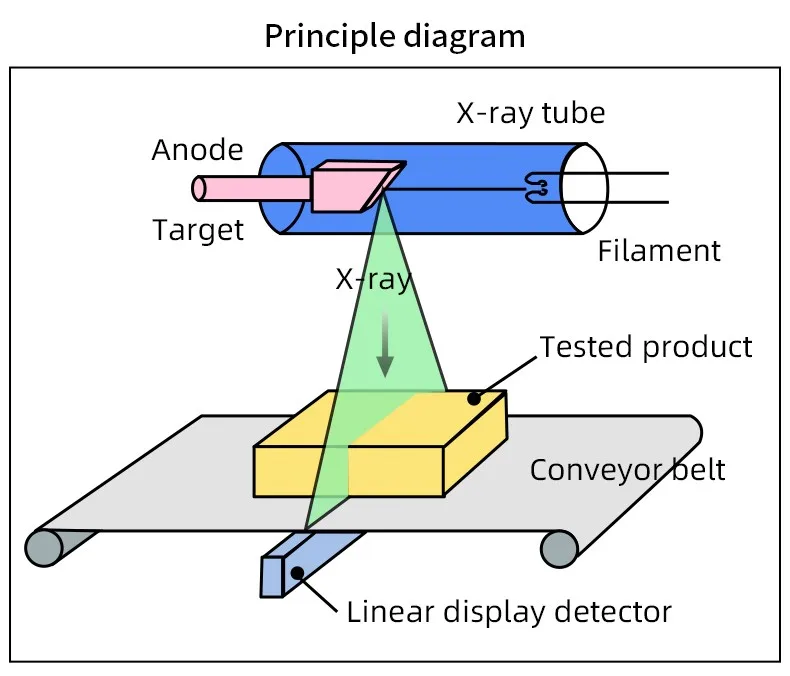

The X-ray tube emits a fan beam that passes through the product on the conveyor. The linear detector below captures the transmitted image, software analyzes density differences in real time, and the split-line pusher removes any reject.
A separated outfeed conveyor and pusher give you flexible line layout — with sensitivity verified by standard test cards.

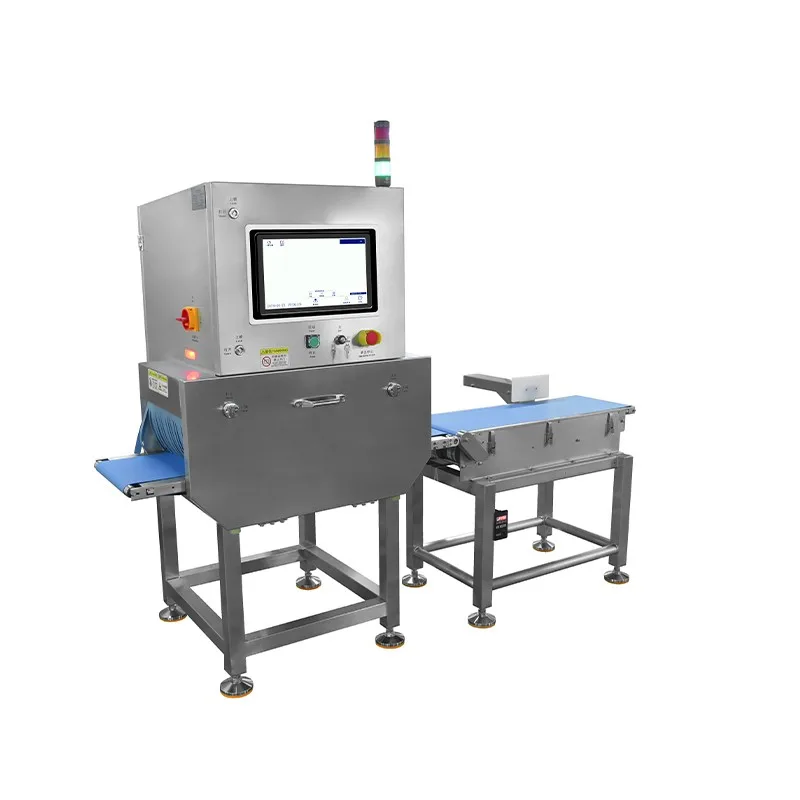

The pneumatic pusher arm on the outfeed belt sweeps rejects off the line — independent of the inspection unit.

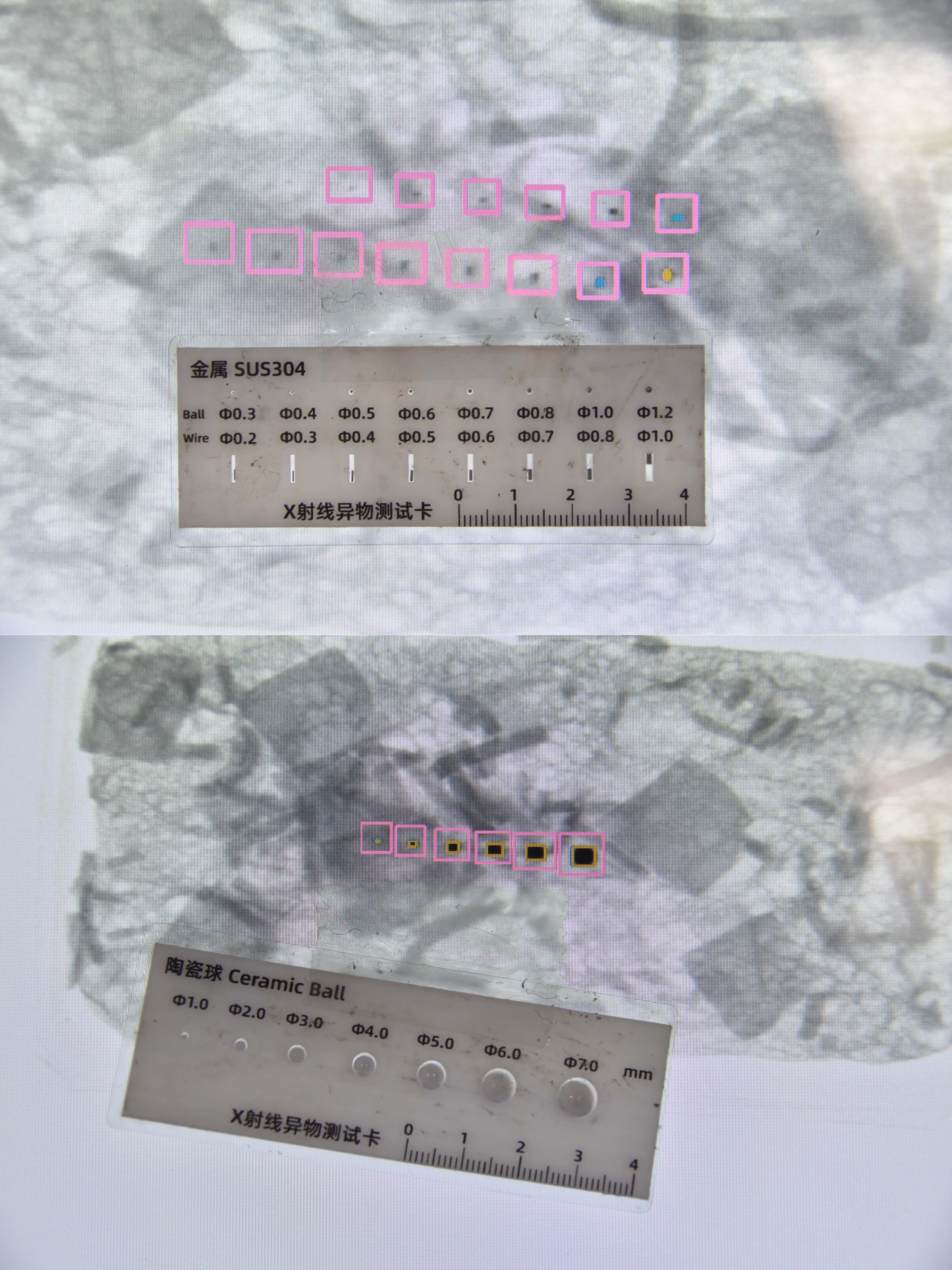

Standard SUS304 and ceramic ball test cards verify detection accuracy on site — ready for audits.

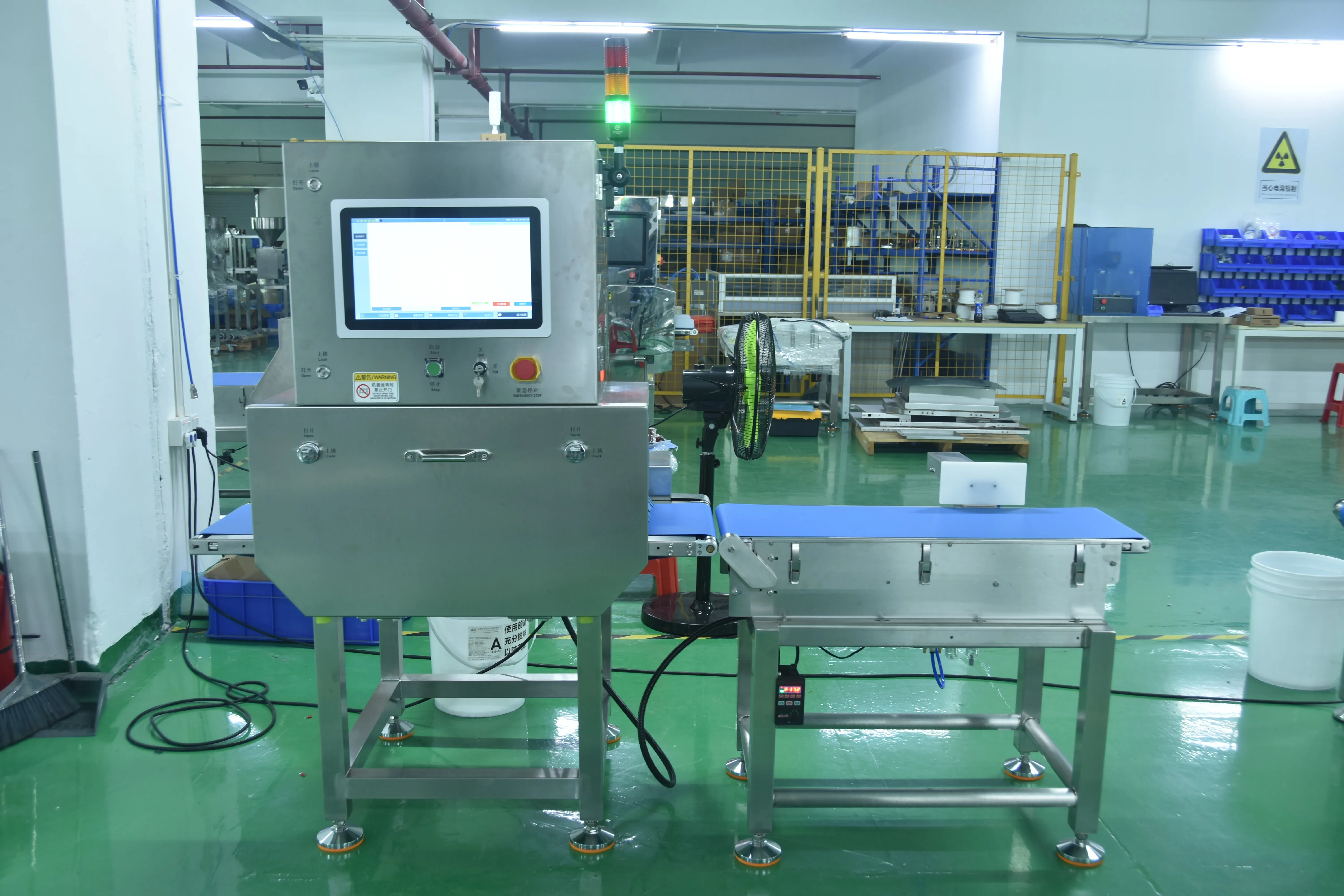

The outfeed section has its own digital controller — belt speed and reject timing tuned independently.

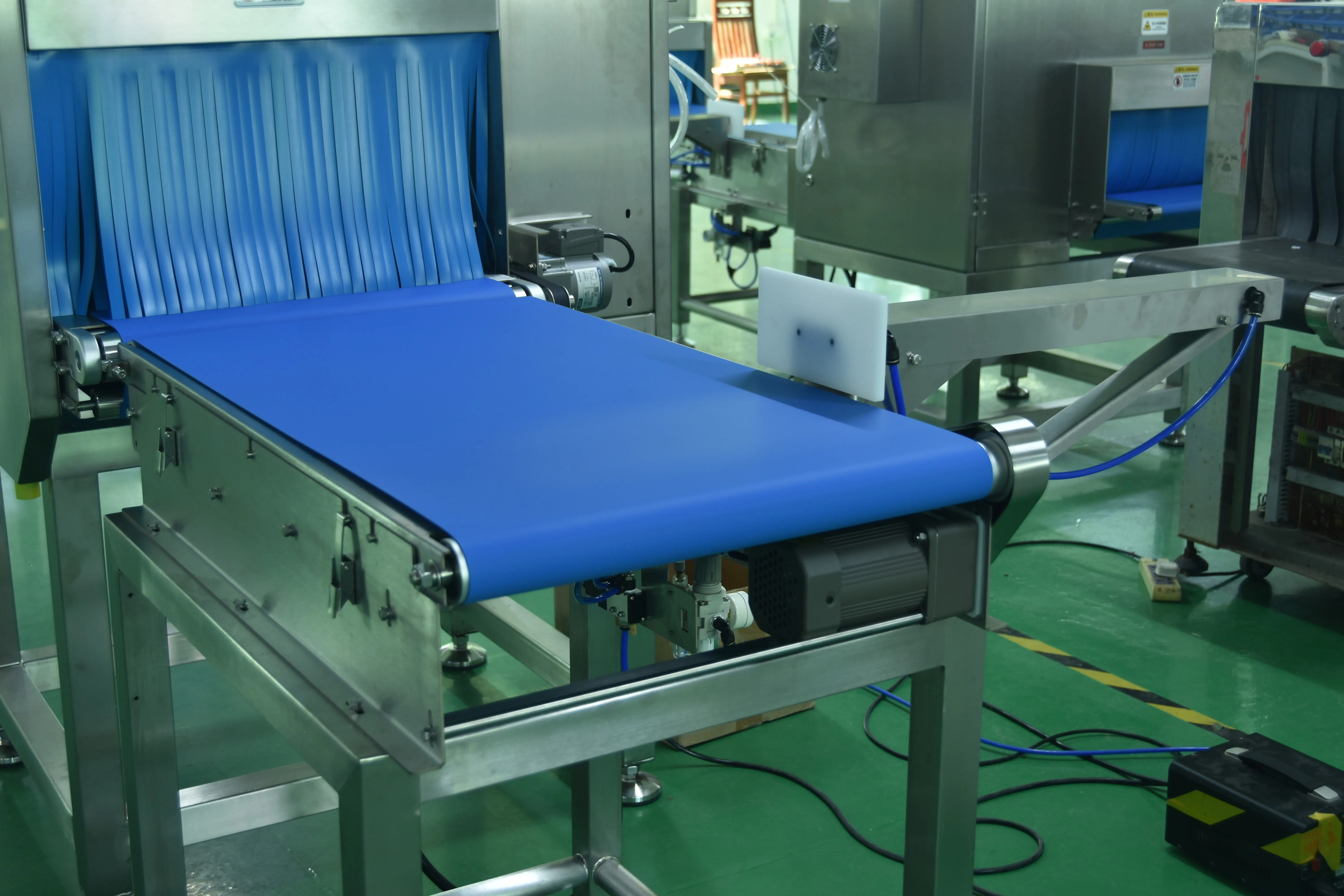

Lead curtains, X-RAY ON indication and interlocked access keep operators safe during operation.

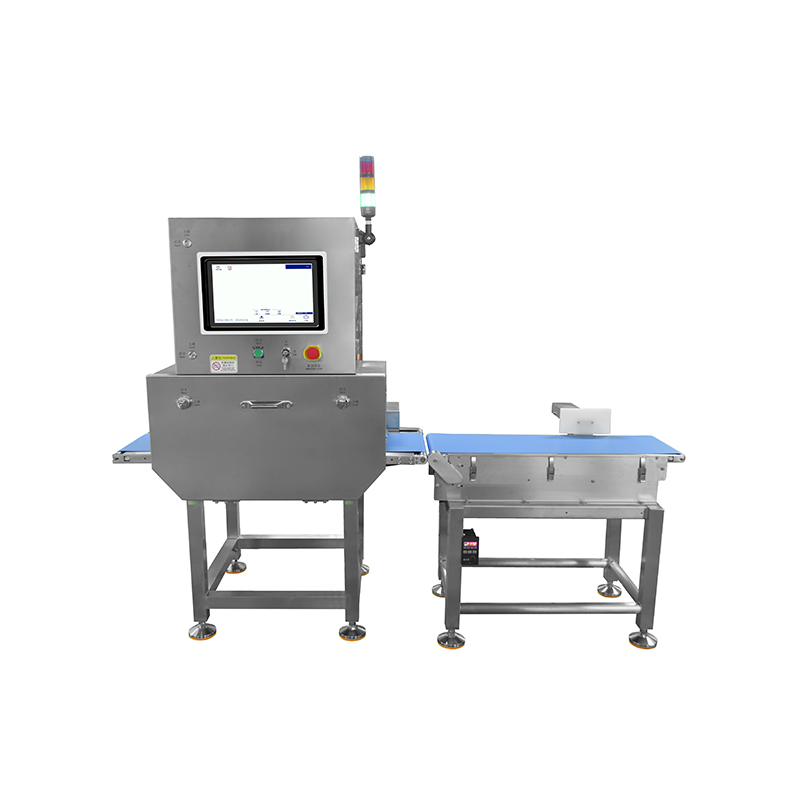

400×200 mm tunnel with split-type outfeed conveyor and pusher rejection.
| Parameter | Specification |
|---|---|
| Model | CQ-YW800 (4020 Split-Type Pusher) |
| X-Ray Source | 150W / 240W / 350W Optional |
| Belt Speed | 10 – 70 m/min |
| Tunnel Width | 400 mm |
| Tunnel Height | 200 mm |
| Max Product Size | ≤280(W) × 200(H) mm / ≤400(W) × 60(H) mm |
| Detection Accuracy | SUS304 ball φ0.4 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 2134 × 990 × 1845(+100) mm |
| Max Conveyor Load | 5 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Bagged · Boxed · Bulk |
| Rejection Method | Pusher (Split-Type Outfeed) |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
All values are factory data from the official CQ-YW800 (4020 split pusher) spec sheet. Need a sinking reject or dual-rejection version? Ask about the CQ-YW800 series. lynn@chaoqiang1688.com
Vacuum-packed seafood, fresh meat and bakery goods — plus boxed, bagged and bulk food of all kinds.
Chaoqiang backs every split-pusher system with factory-trained engineers and genuine parts.
Engineers available for repair, verification and calibration calls at your facility.
Preventive maintenance plans that keep your line running and protect your investment.
Operator training that gets your team productive from day one.
Genuine spare parts and kits dispatched fast to minimize downtime.

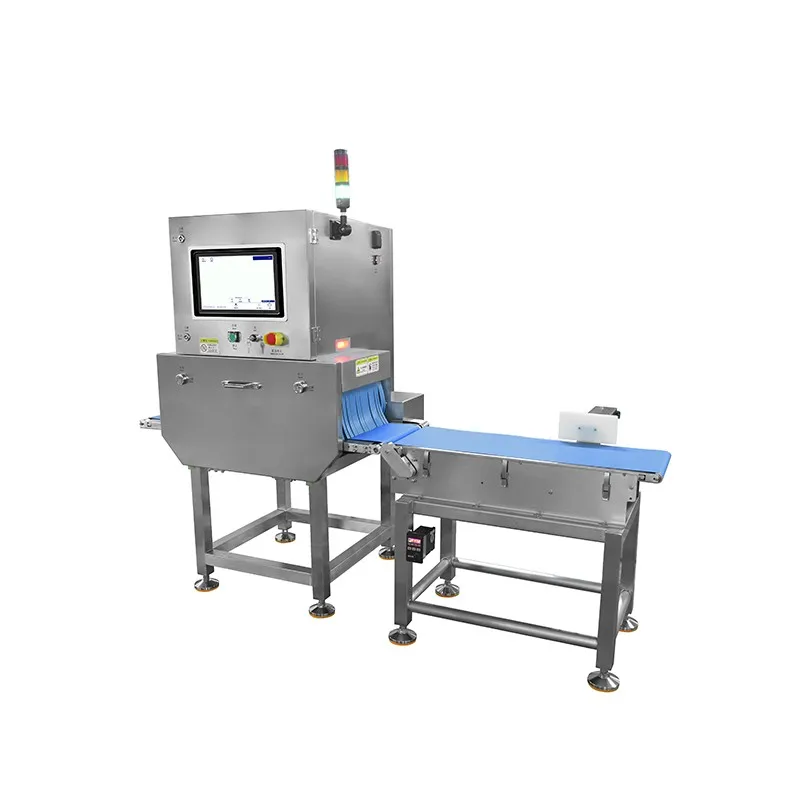

Guangdong Chaoqiang Electronic Technology Co., Ltd. designs and builds the CQ-YW800 series in Dongguan — 18+ years of detection R&D, with every split-pusher unit assembled and tested by our own engineers before delivery.
Meet the Chaoqiang team at exhibitions worldwide — and bring samples to test on the machine live.
Send us your product samples — our engineers will confirm detection performance and line configuration for you.
