CQ-XY800 5030
CHAO QIANG

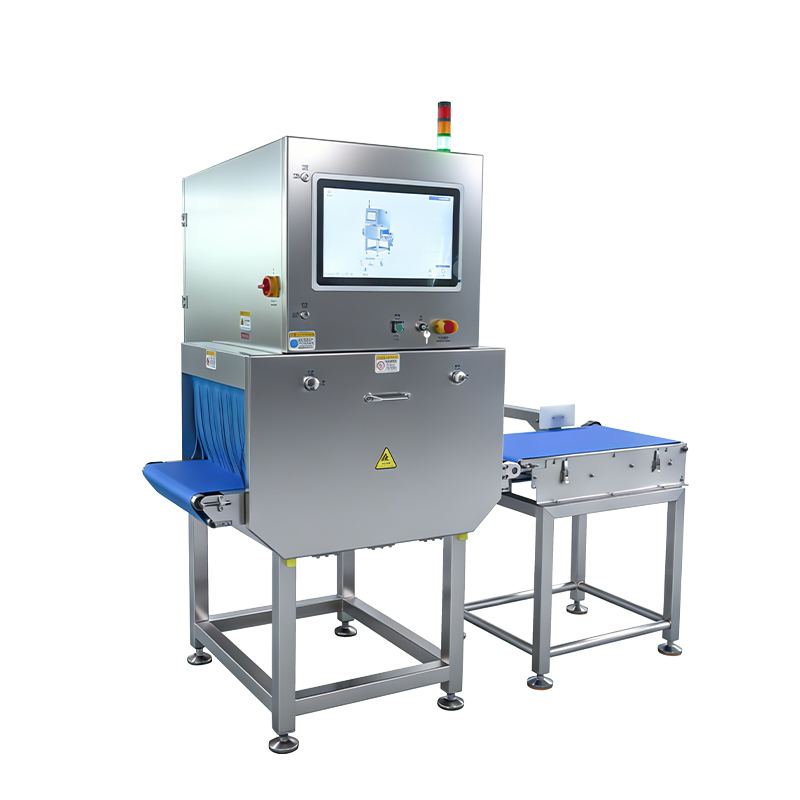

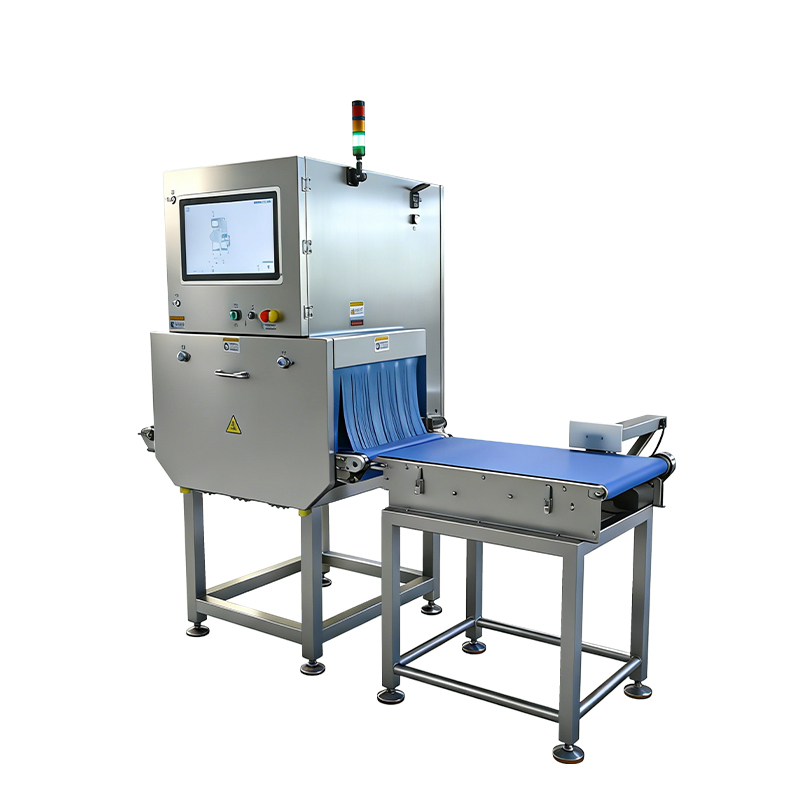

A 500×300 mm heavy-duty tunnel with a separate outfeed conveyor and pneumatic pusher — inspects large cartons, bags and bulk product, then pushes rejects off the line without stopping production.
Large cartons and heavy bags move fast, and the contaminants inside move with them. Stones, glass, bones and metal fragments buried deep in dense packs escape metal detectors — and one bad pallet can stop your customer's line and your reputation.
Dense carton fill hides stones, glass and metal that surface scanners cannot see.
Hand-picking heavy cartons is slow, tiring and unreliable across a full shift.
Reject systems that halt the belt waste minutes of throughput on every hit.
One contaminated carton reaching a retailer triggers claims you cannot easily answer.
The X-ray source penetrates the whole carton, the detector builds a density image, and software flags the foreign body — then the pneumatic pusher arm on the independent outfeed conveyor sweeps the reject away while the line keeps moving.

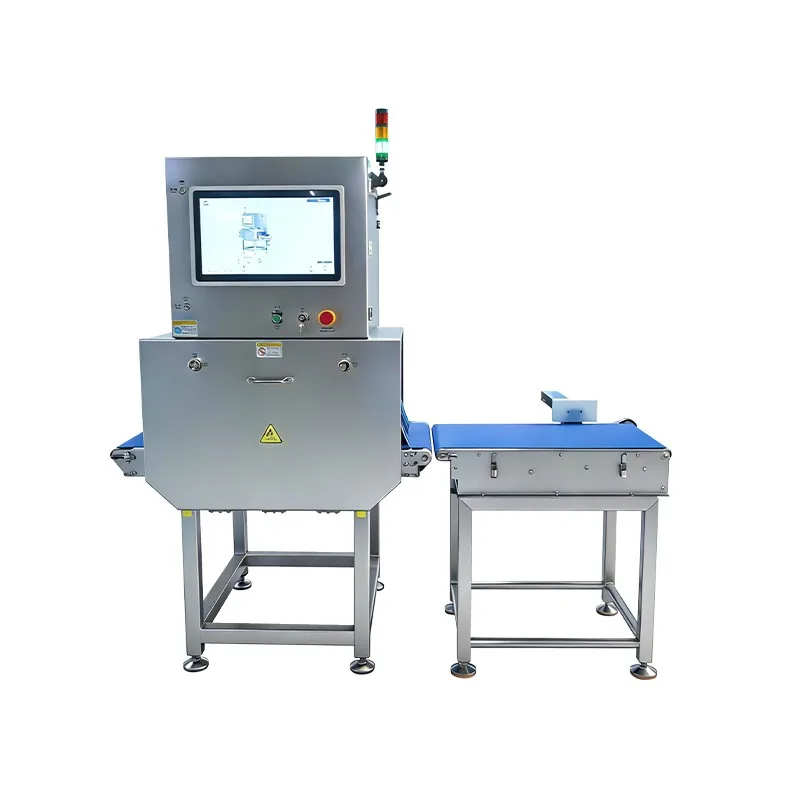

A heavy-duty tunnel, a pneumatic pusher and an independent outfeed conveyor — rejects leave the line while production continues.
Large opening accepts big cartons, heavy bags and stacked packs without reconfiguration.

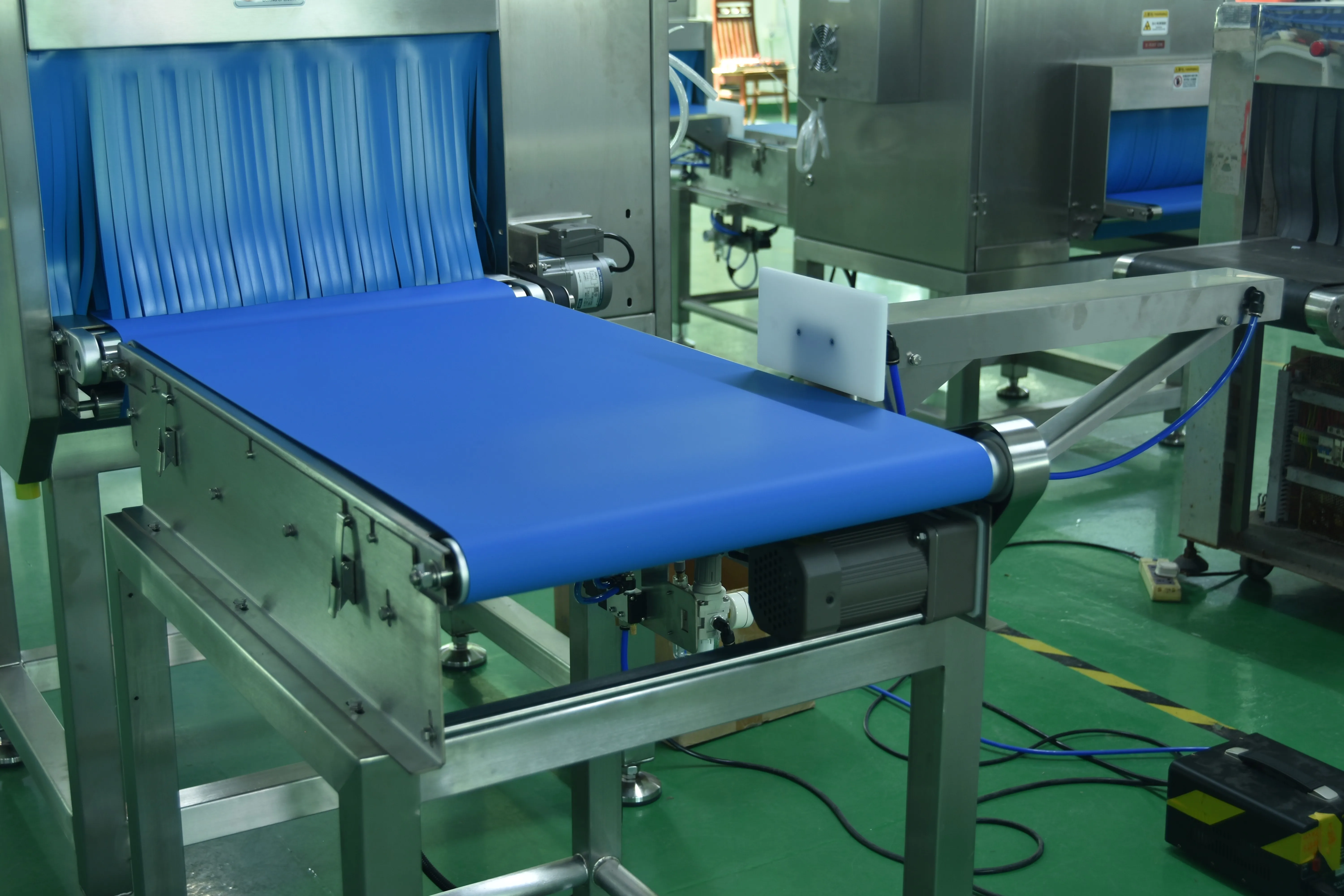

Fast air-driven pusher sweeps rejects sideways onto the outfeed — no belt stop required.

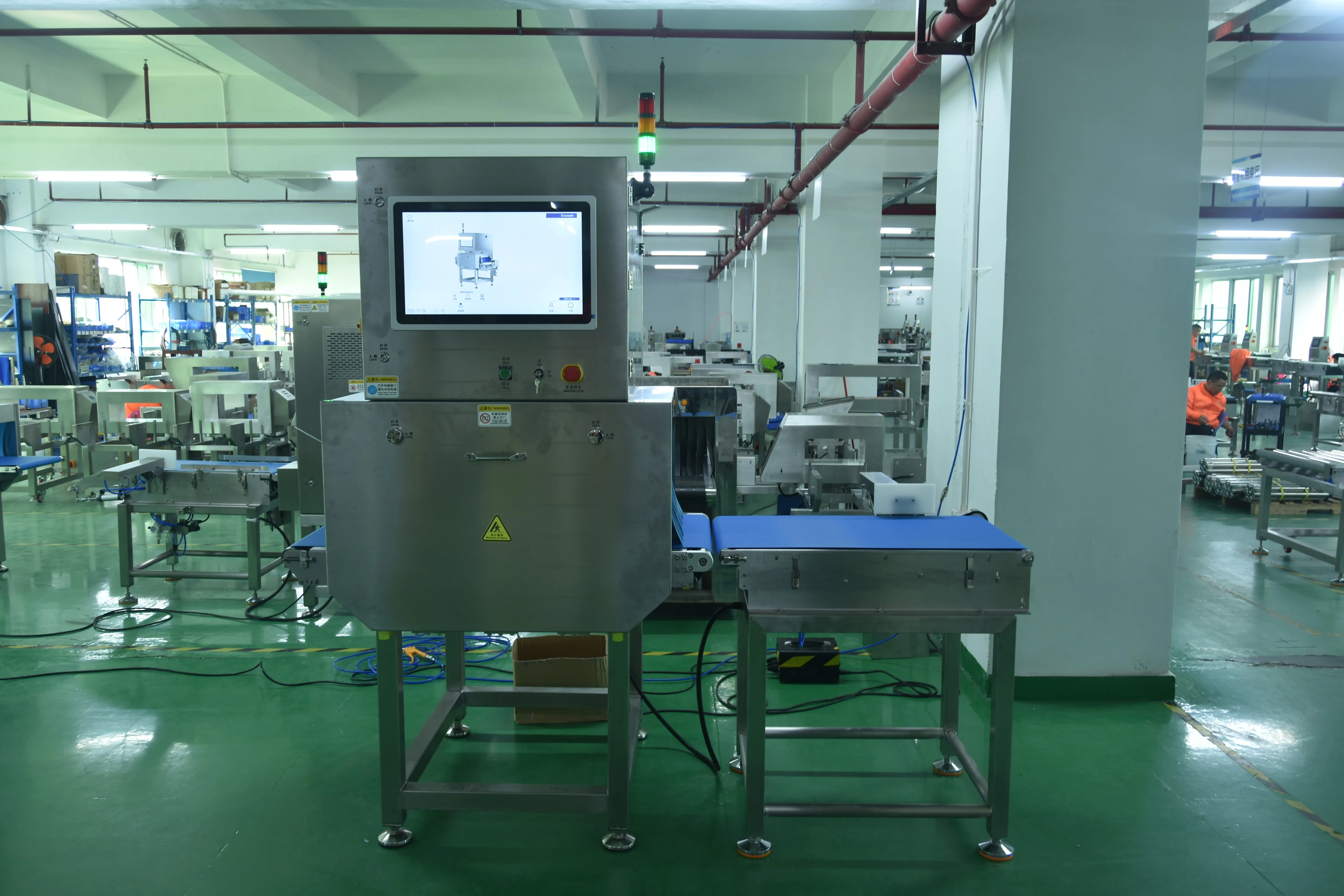

Separate outfeed conveyor carries good product ahead while rejects are pushed aside.
LAN and twin USB ports keep inspection logs, firmware updates and remote access within reach.
500×300 mm tunnel with 150–350 W selectable source, 10 kg load capacity and independent pusher outfeed.
| Parameter | Specification |
|---|---|
| Model | CQ-YW800 (5030 Heavy-Duty Pusher) |
| X-Ray Source | 150W / 240W / 350W Selectable |
| Belt Speed | 10 – 70 m/min |
| Tunnel Width | 500 mm |
| Tunnel Height | 300 mm |
| Max Product Size | ≤300(W) × 260(H) mm / ≤500(W) × 10(H) mm |
| Detection Accuracy | SUS304 ball φ0.6 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 2124 × 1090 × 1973(+50) mm (incl. outfeed conveyor) |
| Max Conveyor Load | 10 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Bagged · Boxed · Bulk |
| Rejection Method | Pusher Exclusion (on Independent Outfeed Conveyor) |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
Values follow the official CQ-YW800 (5030 heavy-duty Push) factory spec sheet. Need a different reject type or tunnel size? lynn@chaoqiang1688.com
Foreign-object detection across large boxes, bags and bulk product — iron, stainless steel, ceramics, glass, stones, bones, shells, hard rubber and hard plastics.
Chaoqiang backs every pusher-equipped system with factory-trained engineers and genuine parts.
Engineers handle installation, alignment and calibration of your pusher line on site.
Preventive checks on the pusher cylinder and conveyor keep uptime predictable.
Operator sessions cover reject setup, pusher timing and daily verification.
Genuine pusher arms, cylinders and belt spares shipped fast for minimal downtime.
Guangdong Chaoqiang Electronic Technology Co., Ltd. designs and builds the CQ-YW800 series in Dongguan — 18+ years of detection R&D. Every pusher unit is run-tested with real samples before it leaves our floor.
Meet the Chaoqiang team at exhibitions worldwide — and bring samples to test on the machine live.
Send us your product samples — our engineers will confirm detection performance and pusher timing for your line speed.
