CQ-XY800 4020
CHAO QIANG

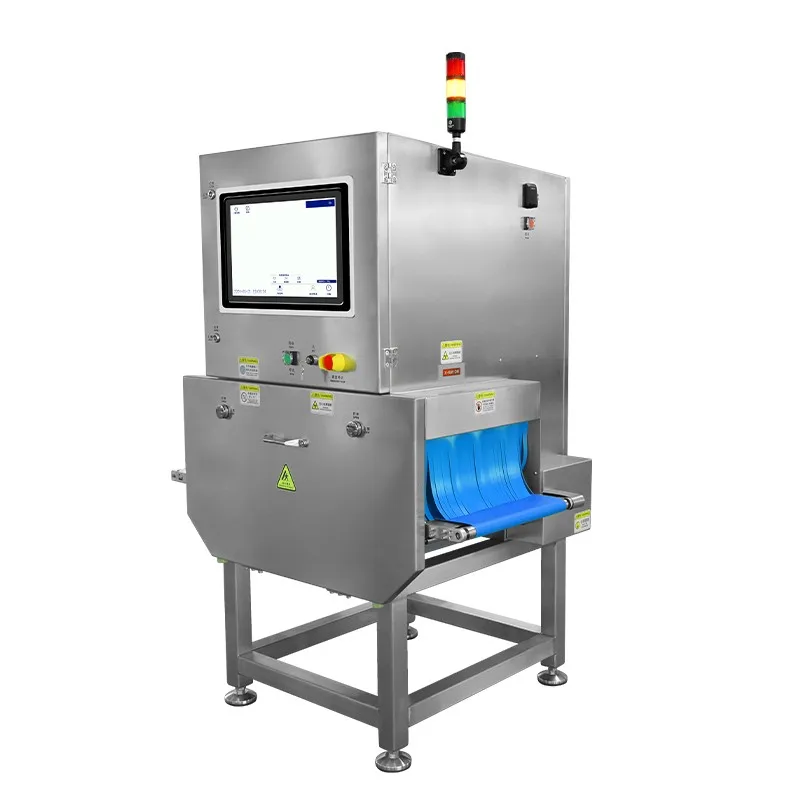

A mature, standard-configuration X-ray inspection system for high-speed foreign body detection. The CQ-YW800 combines a 400×200 mm inspection tunnel with pneumatic pusher rejection — it sees inside every pack and removes rejects without stopping your line.
Foreign bodies hide inside sealed packaging and bulk product — invisible to the eye, and in many cases invisible to ordinary metal detectors too. The CQ-YW800 standard system puts reliable X-ray inspection on your line at a proven, repeatable configuration.
Stones, glass, ceramic and bone hide inside packaged and bulk product — impossible to see by eye.
Aluminum foil, cans and dense packaging defeat conventional metal detectors — X-ray sees through them all.
Hand-picking is slow, inconsistent and burns labor budget on every shift — especially on bulk lines.
Without time-stamped scan records, a single complaint becomes a costly dispute you cannot defend.
X-rays pass through materials that visible light cannot. The CQ-YW800 captures a live internal image of every product on the belt, analyzes it by density difference, then commands the pusher station to eject any defect — continuously, without stopping production.
Batch-produced, field-tested and ready to run — the standard CQ-YW800 delivers dependable inspection with no custom engineering lead time.

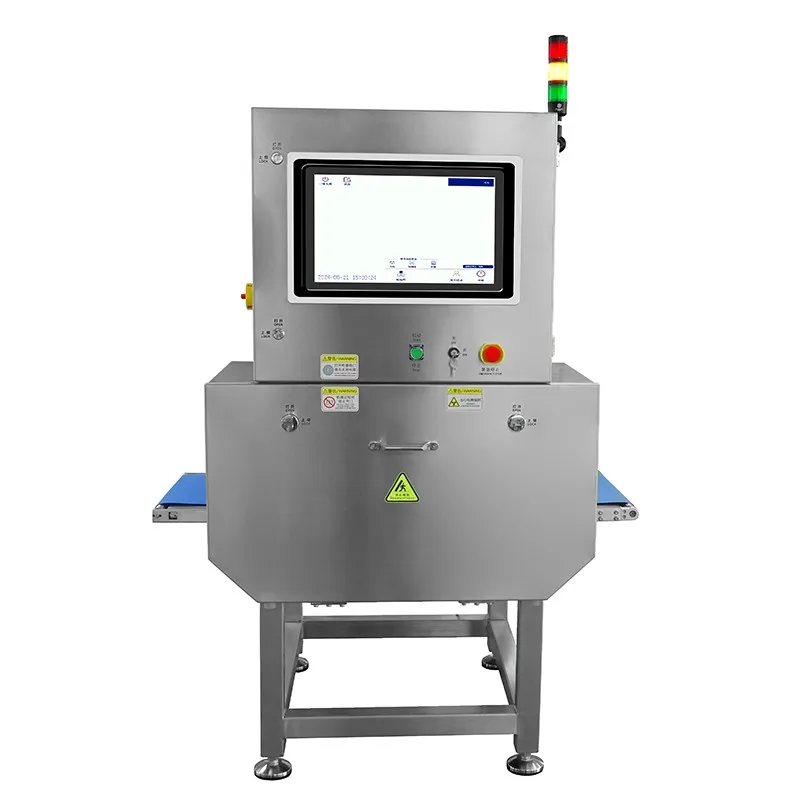

Integrated inspection tunnel, conveyor, touchscreen control and pusher rejection in one machine — install and run.
The standard CQ-YW800 is manufactured in series — every unit benefits from proven production and testing history.

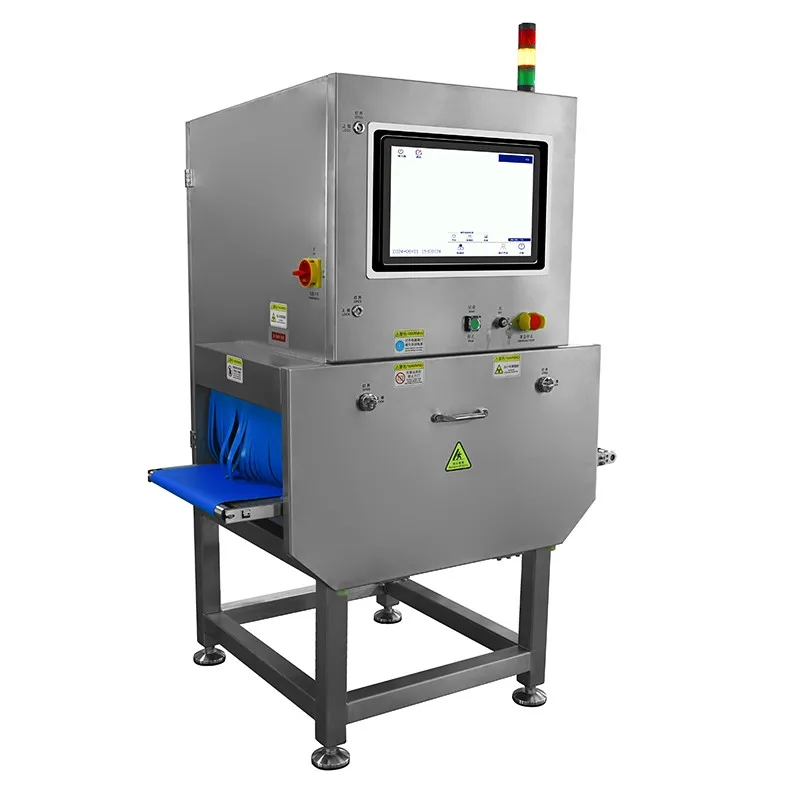

Radiation-shielded chamber with protective curtains and X-RAY ON indication — safe for continuous production.
Rugged SUS304 construction and food-grade PU belt — built to run multi-shift in real production environments.
Standard configuration with a 400×200 mm tunnel and pusher rejection for packaged and bulk products.
| Parameter | Specification |
|---|---|
| Model | CQ-YW800 Standard |
| X-Ray Source | 150W / 240W / 350W Optional |
| Belt Speed | 10 – 70 m/min |
| Pass Width | 400 mm |
| Pass Height | 160 mm |
| Max Window Height | 200 mm |
| Detection Accuracy | SUS304 ball φ0.4 mm · Ceramic ball φ1.0 mm · Glass ball φ2.0 mm |
| Dimensions (L×W×H) | 2010 × 1137 × 1483(+100) mm |
| Max Conveyor Load | 10 kg |
| Power Supply | AC 220V · 1.5 kVA · 50/60 Hz |
| Product Form | Packaged & Bulk |
| Rejection Method | Pusher Rejection |
| Data Interface | LAN Port · USB Port |
| Alarm Mode | Sound & Light Alarm |
| Ambient Temperature | -15 ~ 45 ℃ |
| Belt Material | Food-Grade PU |
| Display / Operation | Touchscreen / Touch Input |
| Display Language | Chinese, English & More |
Specifications are factory data from the official CQ-YW800 spec sheet. Need a customized tunnel size or reject layout? Ask about our CQ-YW800 Customized series. lynn@chaoqiang1688.com
From installation to spare parts — Chaoqiang's global service network keeps your line running at maximum uptime.
Field engineers ready to respond to emergency breakdowns, repair, verification and calibration calls.
Maintenance plans designed to maximize uptime of inspection equipment — peace of mind for managers and operators.
A training academy built around everyday inspection needs — improving performance and productivity.
Wide range of stocked parts and machine-specific spare parts kits to aid production uptime.

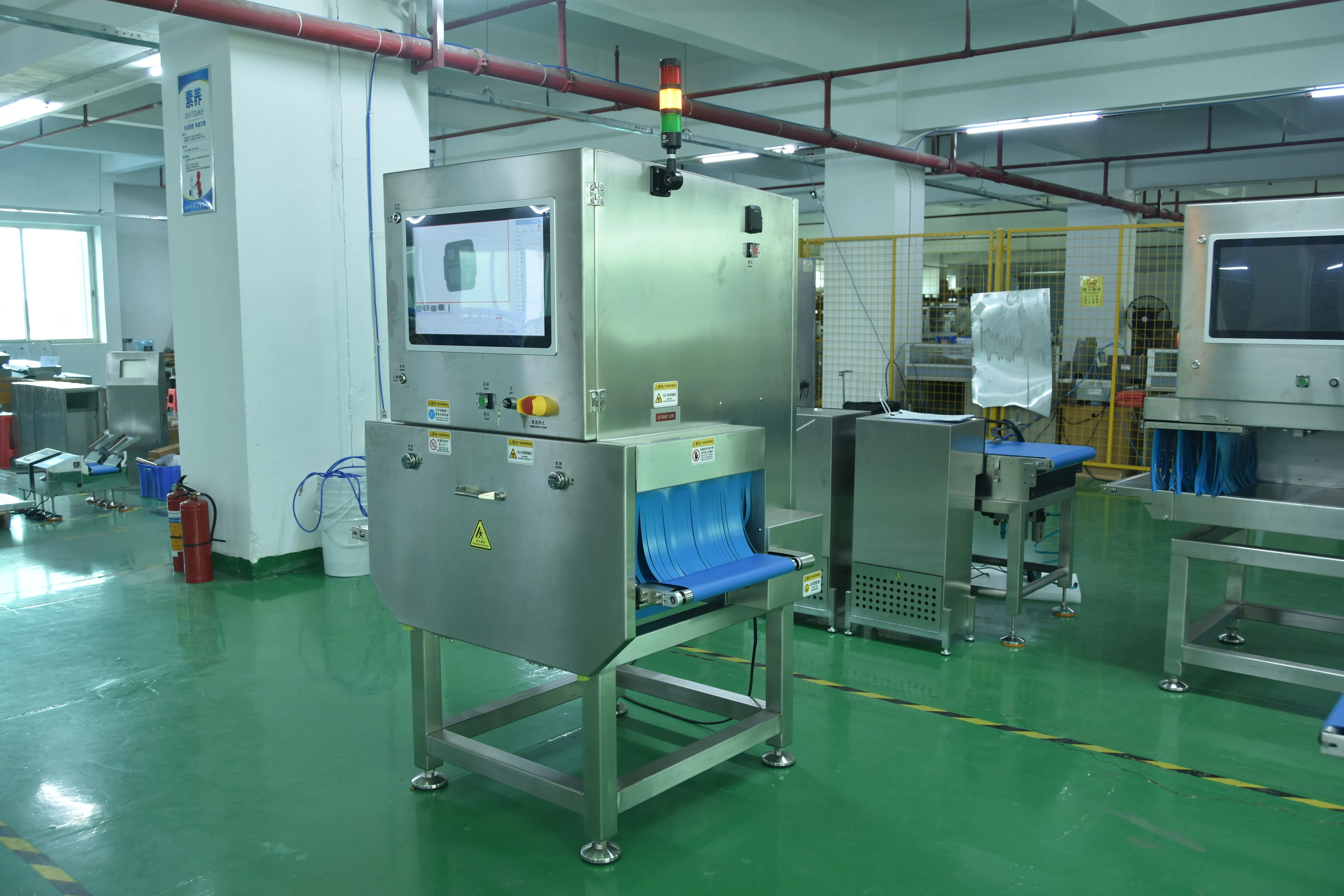

Guangdong Chaoqiang Electronic Technology Co., Ltd. is the source — an electronics and detection equipment manufacturer in Dongguan with 18+ years of dedicated R&D. The standard CQ-YW800 is produced in series, assembled, tested and calibrated by the engineers who design the machines. No middlemen, no reselling.
From food processing to packaging expos — Chaoqiang's team demonstrates real machines, real scans and real results on the show floor.
Tell us your product form and line speed. Our engineers will recommend the standard configuration that fits your line.
